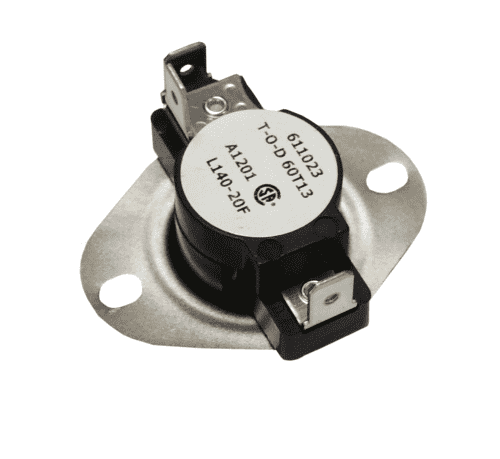

Supco LD140 LD-Series Snap-Action SPDT Limit Control Thermostat, L140-20F

$5.65
SKU LD140

Supco LD140 LD-Series Snap-Action SPDT Limit Control Thermostat, L140-20F

The LD-Series style temperature controls have a bi-metal disc that senses the temperature and quickly separates the contacts. This results in long life characteristics at loads up to 25 amps at 240 VAC. LD-Series switches are single pole double throw 60T11 style (3/4”) with auto-reset. These switches are designed to open on temperature rise and are enclosed and provides greater protection than the exposed construction.

Caution – For SPDT circuits, a load must be applied to terminal 2 and/or 3 to avoid a possible short circuit.

  • Close when temperature differential is reached
  • Open on rise
  • 1/4" quick disconnect terminals
  • Welded construction for integrity of current-carrying components
  • SPDT thermostats



SPECIFICATIONS
RLA @ 120VAC / 240VAC: 25A
Pilot Duty @ 120VAC / 240VAC: 125 VA
LRA @ 240VAC: 30A
LRA @ 120VAC: 60A
FLA @ 240VAC: 5A
FLA @ 120VAC: 10A
°Differential: 20°
Open ( °F): 140°
Close ( °F): 120°
