Supco 90380 General Purpose Fan Relay, NO/NC, 24 VAC
$10.85
SKU 90380
Supco 90380 General Purpose Fan Relay, NO/NC, 24 VAC

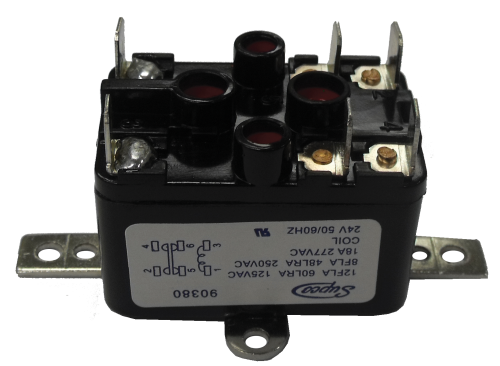

SUPCO® 90380 General Purpose Fan Relay used on many HVAC/R and Industrial applications. 24 VAC control circuit, NO/NC (1 normally open, 1 normally closed).
FEATURES
- General purpose switching relays normally open / normally closed contacts
SPECIFICATIONS
| Frequency: |
50/60 Hz |
| LRA at 250 VAC: | 48 LRA |
| LRA at 125 VAC: | 60 LRA |
| FLA at 250 VAC: | 8 FLA |
| FLA at 125 VAC: | 12 FLA |
| Operating Voltage VAC: | 24 VAC |
