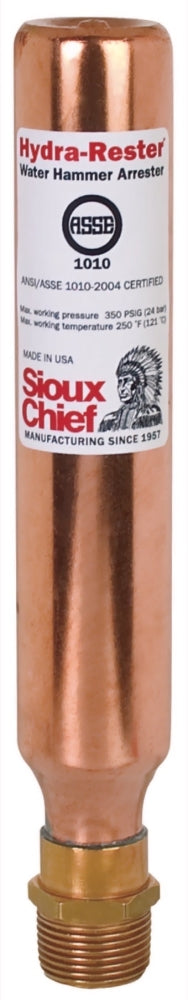

Sioux Chief 653-B HydraRester™ Water Hammer Arrester, 3/4" MIP, Type B

• Certified by ASSE to the ANSI/ASSE 1010 Standard.
• Can be installed at any angle, and without access panels.
• Lifetime cycle tested to withstand 10,000 shock cycles.
• NSF/ANSI/CAN - 372, ASSE - 1010

Specifications:

• Connection:  3/4" MIP
• Fixture Units:  12-32
• Size:  B
• Overall Height:  8-3/4"
• Chamber Width:  1-3/8"
• Volume (cu. in.):  7



Spec Sheet

Instruction Sheet

Sizing & Placement Guide

Sizing Guidelines

Commercial Fixture-Unit Calculator
