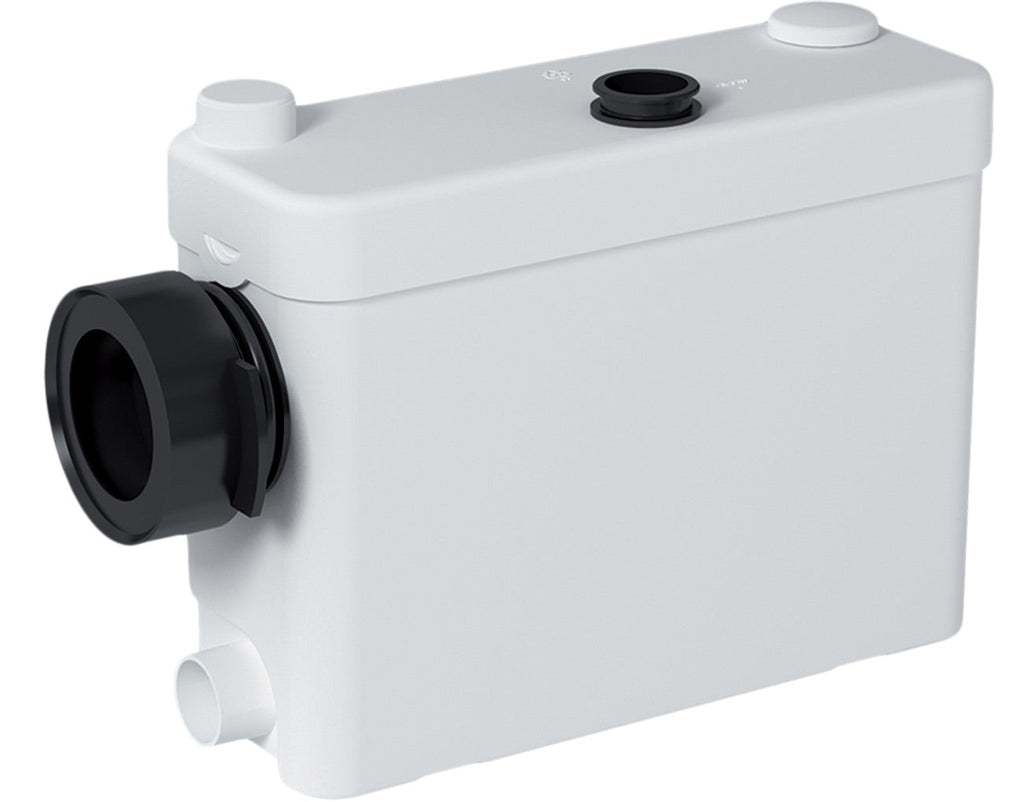

The Sanipack is a 1/2 HP pump system used to install a complete bathroom up to 15 feet below the sewer line, or even up to 150 feet away from a soil stack. It incorporates a macerating system which can handle human waste and toilet paper in residential applications. The blade is made out of a hardened stainless steel material which eliminates the need for any service or replacement.
- Discharges waste through a 3/4" or 1" rigid pipe. A non-return valve is included on the discharge elbow assembly provided with the system. This elbow can be rotated 360 degrees depending on the discharge installation.
- Designed with a 1-1/2" vent connection on the top of the lid. All plumbing codes require connection to a vent system. Please note that the vent system should be a two-way air vent as air needs to freely flow both ways. Note: The use of mechanical vents, air admittance valves or similar devices is not permitted.
- This pump is designed to be connected to any wall-hung toilet (not supplied by Saniflo.) Note that there should be a minimum 1/4" per foot gravity fall on the waste pipe coming from the toilet into the pump.
- Will also discharge gray water from any sink, bath/shower, or urinal. The wastewater will drain into the system via two 1-1/2" inlets with built-in check valves on either side of the housing. Note than when adding a shower, the base should be raised up by a minimum 6" off the floor.
The perfect solution for a full bathroom with style.
- For full bathroom applications
- ↑ 15 Ft ↑ and/or ← 150 Ft →
- Use any wall-hung toilet to complete your bathroom installation
The inside of the Sanipack is comprised of a pressure chamber, which starts and stops the unit, and the motor, which drives the stainless steel macerator blades and the pump. When the flush is activated, the water flowing into the Sanipack activates a micro switch in the pressure chamber which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller and the macerator blades. The moving parts therefore are kept to an absolute minimum. Water and organic waste matter enter the chamber and are reduced to slurry as the macerator blades rotate at 3600 RPM. The centrifugal force causes the reduced solids to be ejected through a grill into the container where it is picked up by the impeller pump mounted beneath the motor.
The unit pumps the effluent upward to 15 feet and/or 150 feet horizontally (with gravity fall). Once the water is discharged and the water level in the container goes down, the micro switch deactivates the unit until the flush is activated again. A normal operating cycle for Sanipack takes about 7-9 seconds depending upon the discharge pipe run configuration; power consumption is therefore minimal.
In addition to the toilet waste, the Sanipack will also discharge gray water from a variety of other sanitary fixtures such as: a sink, a shower and a urinal. When adding a shower, a base will have to be constructed. This base should be made out of a 2" x 6" (minimum) or 2” x 8” (recommended) on edge, to allow for the installation of a P-trap and the required 1/4”per foot gravity flow towards the pump unit.
The wastewater from other sanitary fixtures is discharged into the Sanipack via two 1-1/2 inch inlets on either side of the housing. Either one or both inlets can be used as required. The discharge elbow on top of the Sanipack can be turned either to the left, to the right, or towards the back, depending on the discharge installation. A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit.
This unit has been designed with a vent connection on the lid. All plumbing codes require connection to a vent system. Please note that the vent system should be a two-way air vent. The use of mechanical vents, air admittance valves or similar devices are not permitted as these are considered one-way air vent systems.
It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter (GFI) circuit.

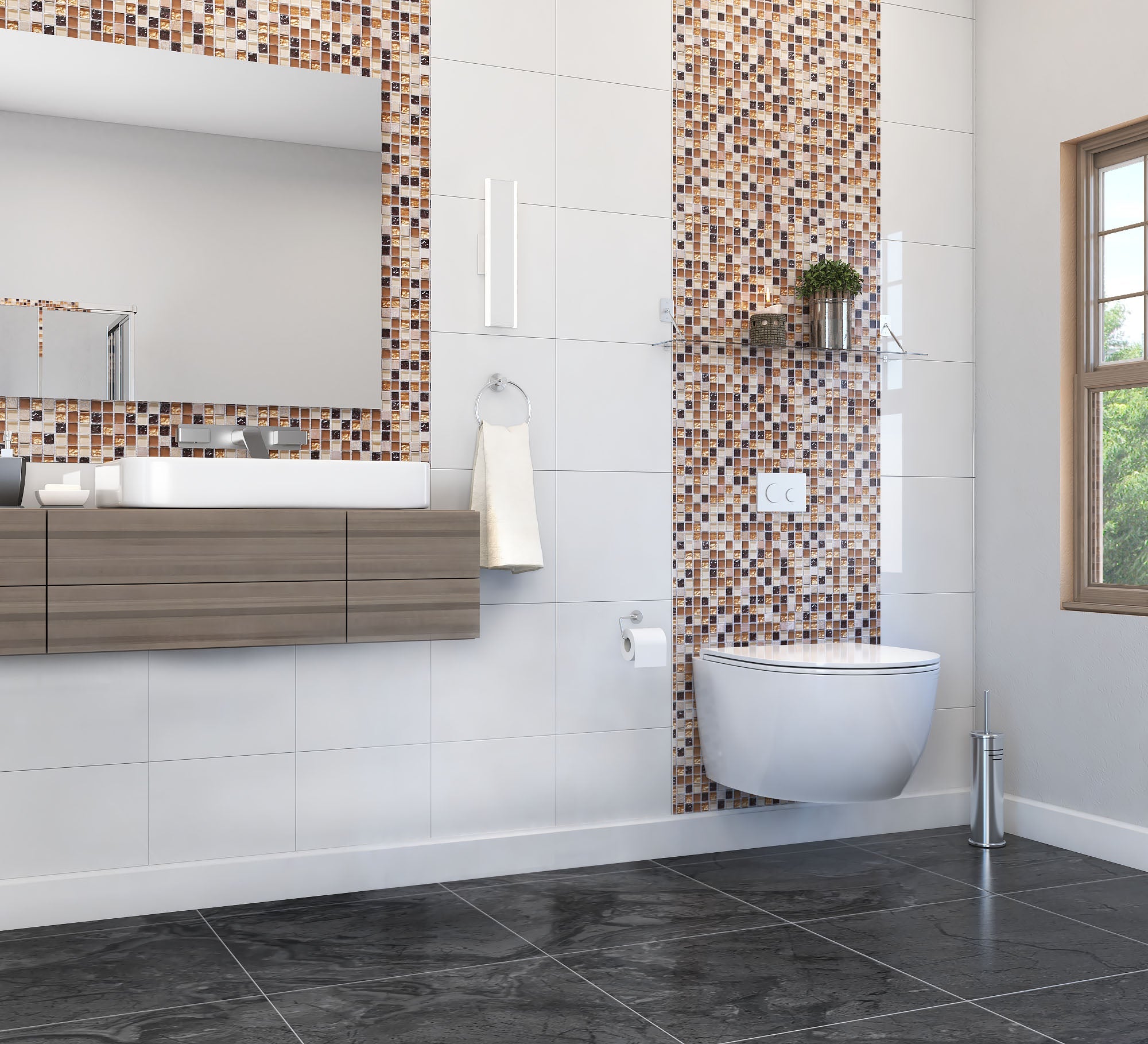

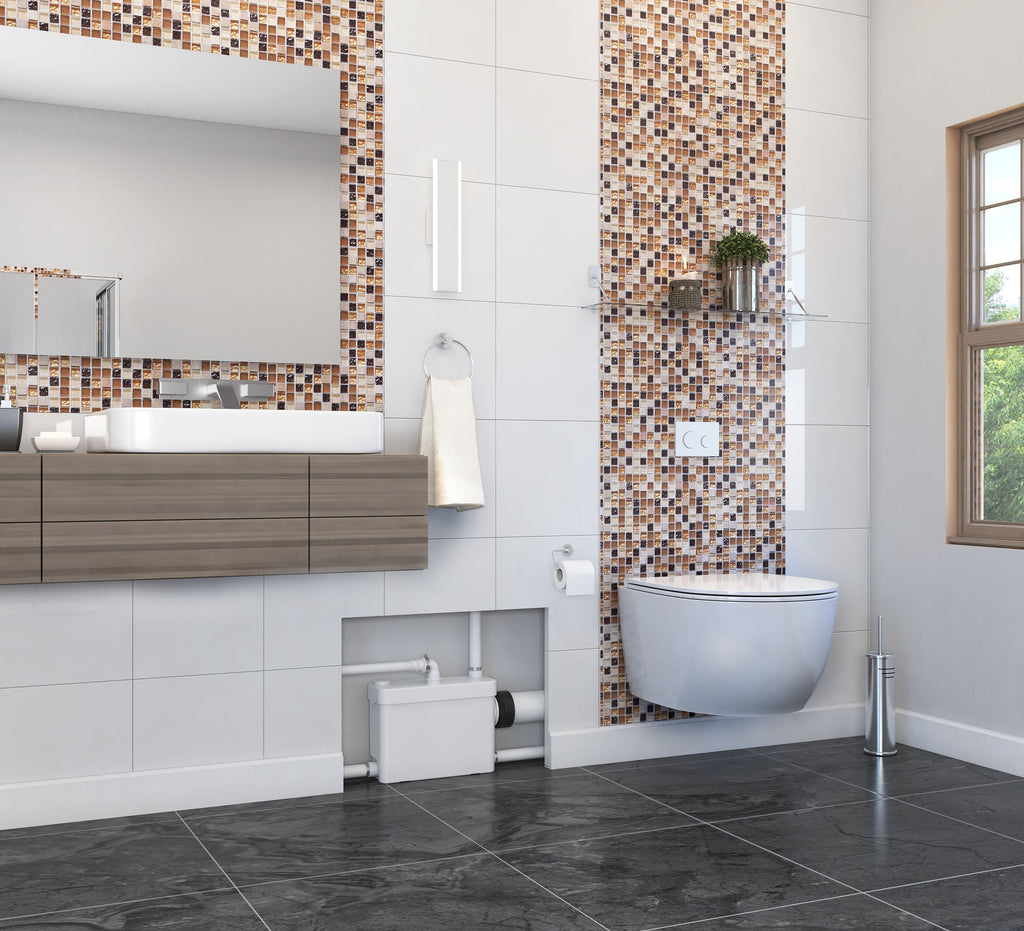

The Sanipack is designed to be used with a wall hung toilet. The depth of the case allows for this pump to be installed within the wall. Since the reservoir, the macerating pump and the pipes are hidden from view, this type of installation gives you the lean and clean look of a European bathroom.
|Power Supply:||120 V - 60 Hz|
|Motor:||0.5 HP oil-filled thermally protected motor|
|Motor Speed (RPM)||3600|
|Shower/bathtub base min height:||6" min|
|Operating Maximum Temperature:||104°F (110°F Max.)|
|Amperage (Amps)||4.5 Max|
|Power Cord Length:||48 inches|
|Noise Level:||≤ 53 dBA|
|Horizontal discharge||150 ft|
|Vertical discharge||15 ft|
|Discharge Pipe Diameter:||3/4" or 1"|
|Discharge Rate at 15 ft:||17 gal/min (66 liters/min)|
|Discharge Rate at 3 ft:||27 gal/min (103 liters/min)|
|Shut-off Head:||30 ft|
|Normal Running Time:||Depends of toilet system|
|Inlets:||1 1/2'' (side) 1 1/2'' vent (top)|
|Method of Activation:||Membrane / microswitch|
|Tank volume||3.5 gallons|
|Certifying Agencies:||CSA (IPC, NSPC) IAPMO (UPC)|
|Capacitor rating (microfarad):||45|
|Water Consumption||Depends on toilet system|
|Dimensions (Height x Width x Depth):||11 5/8" x 15 3/4" x 5 3/4"|
