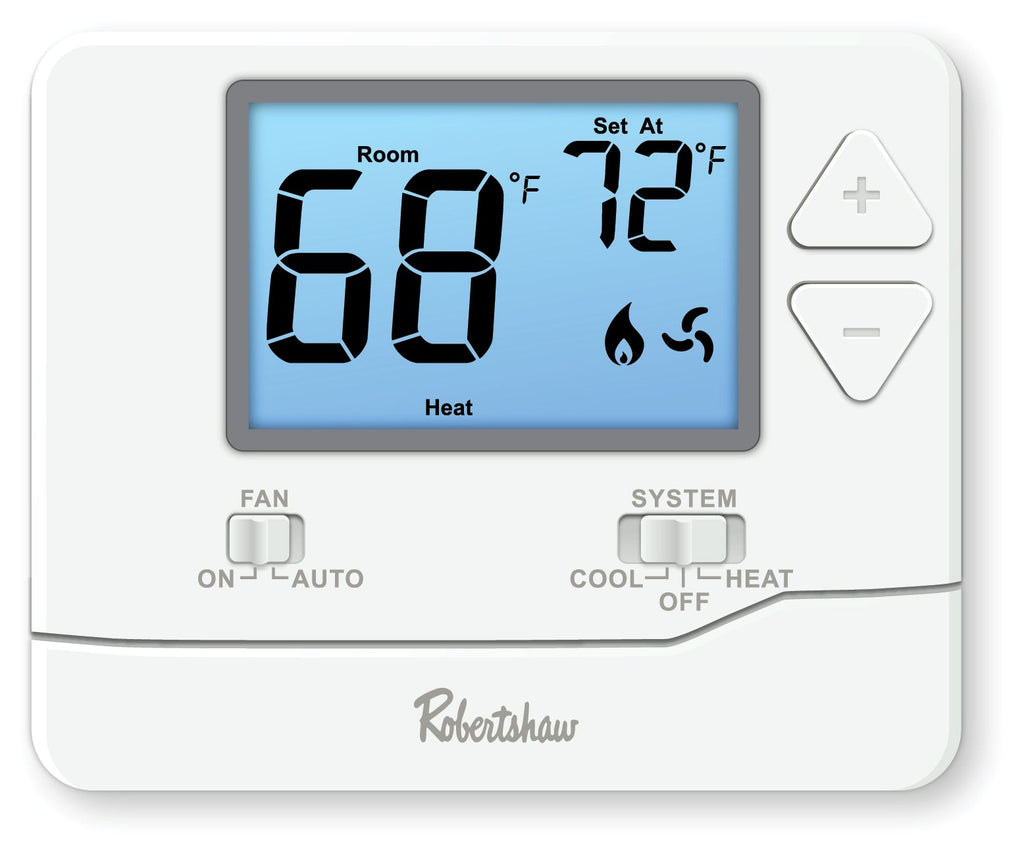

Robertshaw RS8110 Digital Non-Programmable Thermostat, Single Stage - 1 Heat/1 Cool

Save 46%
Original price $61.37
Current price $32.96
SKU RS8110
Currently 185 in stock.

Robertshaw RS8110 Digital Non-Programmable Thermostat, Single Stage - 1 Heat/1 Cool

Products usually ship within 1 business day.

Contractors can offer homeowners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat.

  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick-access menu button
  • Contractor/technician setup menu
  • Large, easy-to-read 4.6-square-inch blue backlit display
  • 24V AC Powered  OR Battery Operation (Included)
  • 6Year Limited Warranty
  • Easy-access front-load battery compartment
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • Five-minute selectable on/off compressor delay protection for short-cycling prevention
  • Separate O and B terminals


RS8110 Sell Sheet

RS8110 Installation Manual

RS8110 Operation Manual



    Series Application:
    Single-Stage 1 Heat / 1 Cool Non-Programmable
    Factory Part Number: RS8110
    Dimensions: 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
    Mounting Type: Wall or junction box
    System Fuel Source: Gas, electric or oil
    Heat Pump Compatibility: Systems without auxiliary or emergency heat
    Millivolt Application Compatibility: Yes
    Temperature Range: 41°F to 95°F (5°C to 35°C)
    Control Temperature: 44°F to 90°F (7°C to 32°C)
    Display Accuracy: +- 1°F (at 68°F) / +- 1°C (at 20°C)
    Power Source: 24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
    Terminals: Rh, Rc, C, Y, W, G, O, B



    Cross Reference

    Honeywell: TH5110D1022, TH3110U2008
    Braeburn: 1020, 1000NC, 1020NC
    Emerson White-Rodgers: 1F83C-11NP
    Aprilaire: 8444
