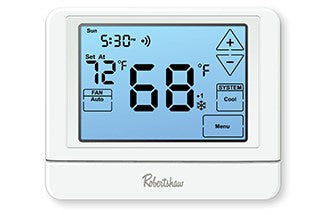

Robertshaw RS10420T WIFI Programmable Touchscreen Wall Thermostat, Multi-Stage - 4 Heat / 2 Cool

Save 13%
Original price $89.00
Current price $77.56
SKU RS10420T
Currently 28 in stock.

Robertshaw RS10420T WIFI Programmable Touchscreen Wall Thermostat, Multi-Stage - 4 Heat / 2 Cool

Contractors can offer owners easy, yet powerful and reliable multi-stage temperature control in a simple, modern design with the RS10420T WIFI programmable Touchscreen wall thermostat.
Multi-Stage - 4 Heat / 2 Cool

  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick-access menu button
  • Contractor/technician setup menu
  • Easy-to-understand programming menus
  • Intuitive wake, leave, return, sleep programming icons
  • Factory pre-set energy efficiency program
  • 24V AC Powered (C-wire required)
  • 6Year Limited Warranty
  • Large, easy-to-read 8.8-square-inch blue backlit touchscreen display
  • Compatible with universal WiFi standards
  • Compatible with Alexa and Robertshaw app (iOS or Android)
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • Compressor delay protection for short-cycling prevention
  • Filter change reminder
  • Keypad lockout
  • Dual fuel compatible
  • Auto changeover

RS10420T Sell Sheet


Series Application Multi-Stage 4 Heat / 2 Cool Programmable Touchscreen
Factory Part Number RS10420T
UPC 662013228262
Dimensions 4.7 x 3.8 x 1in (119.6 x 97.6 x 26mm)
Mounting Type Wall or junction box
System Fuel Source Gas, electric or oil
Heat Pump Compatibility Systems with or without auxiliary or emergency heat
Millivolt Application Compatibility No
Temperature Range 32°F to 99°F (1°C to 40°C)
Control Temperature 41°F to 90°F (5°C to 32°C)
Display Accuracy +- 1°F (at 68°F) / +- 1°C (at 20°C)
Power Source 24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire (C-Wire) required
Terminals Rh, Rc, C, Y, Y2, W/E, W2, G, O, B

Cross Reference:

BRAEBURN 5320, 6300, 6400, 6425, 7300, 7320, 7500
