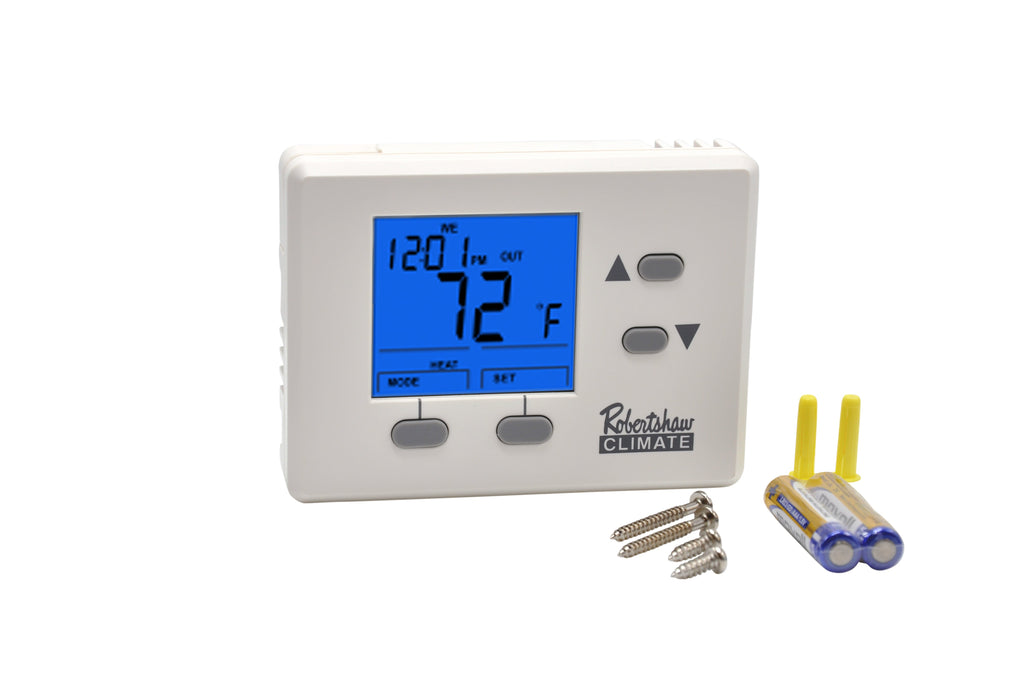

Robertshaw RS1010 5-1-1 Day Digital Programmable Thermostat, 1 Cool Only

Save 44%
Original price $39.06
Current price $21.75
SKU RS1010
Currently 8 in stock.

Robertshaw RS1010 5-1-1 Day Digital Programmable Thermostat, 1 Cool Only

Products usually ship within 1 business day.

The Robertshaw® RS1010 Economy Series of 5-1-1 Day programmable thermostat is an impressive low-cost thermostat.  With a beautiful vibrant blue backlight, the RS1010 series is the right choice for an economical programmable thermostat for new and replacement residential applications.  They can be configured to control conventional gas or electric HVAC, heat pump, oil and millivolt equipment.  This is a 3-wire single cool thermostat. Can be configured for Fahrenheit or Celsius, and can be used as manual or 5-1-1 day programmable operation.

  • 1 Cool Only
  • Selectable Fahrenheit or Celsius Display
  • 5-1-1 Day Programmable & Manual (non-programmable) operation
  • 4 Events / Day
  • Temporary Override with Override Icon on Display
  • Fan selector for automatic or continuous fan operation
  • Adjustable temperature differential
  • Compressor short cycle protection - Reduces wear and tear on HVAC equipment compressor
  • Worry free memory retention - Maintains programmed parameters even during power outages
  • HVAC equipment control using dry contact relays
  • Quick wire terminal block - uses sturdy wire clamps


RS1000 Economy Series Sell Sheet



    Battery Voltage: 3 VDC (2x AAA alkaline batteries)
    Battery Life: 1 Year (Approximate)
    Dimensions: 3.35"Hx4.5"Wx1"D (85mm 114mmx102mmx26mm)
    Mounting Type: Wall or junction box
    Relay Contact Voltage: 24 VAC / 50/60 Hz
    Relay Contact Current: 1 Amp Max (inductive)
    Control Range: Cooling 60 to 95°F (16 to 35°C) in 1 degree steps
    Control Accuracy: +/-1°F @68°F (0.5°C @20°C)
    1st Stage Differential: +1/-1°F (0.5°C) or +/-2°F(1°C)
    Terminations: R - 24V switching voltage, G - Fan, Y - Cool
