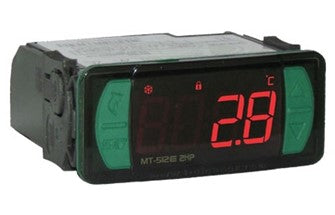

Ranco® MT-512EL-2HP 12/24V Digital Controller for Medium Temperature

The Ranco® MT-512E Digital Controllers feature a single relay output combined with a cyclical timer for system defrosting. A manual defrost can be set through the controller or via manual shutdown of the refrigeration system. The digital filter feature simulates an increase in mass of the room temperature sensor, thereby increasing its response time and reducing unnecessary compressor activations.

Features and Benefits:

• Single relay output combined with a cyclical timer for system defrosting.
• A manual defrost can be set through the controller or via manual shutdown of the refrigeration system.


KEY SPECS:

Series Application:  Cold storages Reach-In Coolers/ Stand Up Coolers Industrial heating/                                    cooling equipment, Any other type of equipment requiring precise                                        temperature control
Power Supply:    12/24V AC
Control Temperature:    -58 to 221F (-50 to 105C)
Operating Temperature:    32 to 122F (0 to 50C)
Operation Humidity:    10 to 90% RH (without condensation)
Maximum Load Current:    16 A for resistive-type loads and 12 A for inductive-type loads
Maximum Load Power:    2HP
Protection level:    IP 65 (frontal)
Dimensions:    77 x 34 x 77 mm (WxHxD)
