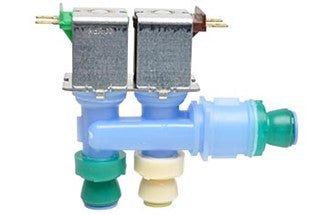

Robertshaw IMV-696 Residential Ice Machine Water Valve N-86-F Series, Whirlpool W10312696
The Robertshaw® S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.
Features and Benefits:
- Direct acting armature provides high flow capacity with minimum power requirements
- Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
- Unique armature and seat design reduce unwanted particles from entering the armature area
- Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
- Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
- Suitable for applications using water at temperatures up to 160°F (71°C)
Specifications:
| Series Application |
Residential Ice Machine Water Valve N-86 Dual Inline |
| Electrical Rating |
120V AC, 60 Hz, 20W/35W |
| Body Material |
Polypro |
| Operating Pressure |
20 PSI to 120 PSI |
| Inlet Size |
5/16" quick connect |
| Outlet |
1/4" quick connect, 5/16" quick conenct |
| Terminals |
1/4" Male, 3/16" Male |
| Flow Rate |
70 CC in 7.5 seconds, 40-80 CC per second |
| Replaces |
Whirlpool W10312696 |
| Factory Part Number |
K-77623 |
Cross Reference:
| WHIRLPOOL |
W10312696 |
| ROBERTSHAW |
K-77623, K-77623-AM |
