Robertshaw IMV-2201 Commercial Ice Machine Water Valve S-54

Save 62%
Original price $96.59
Current price $36.71
SKU IMV-2201
Currently 5 in stock.

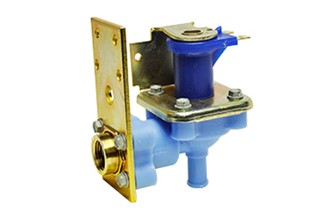

Robertshaw IMV-2201 Commercial Ice Machine Water Valve S-54

The Robertshaw® S-53 Water Valve Series is a single solenoid valve for dishwashing machines and commercial icemakers. The S-53 features the design combination of a brass inlet fitting or quick connect fitting and a mounting bracket, which allows direct connection to the supply plumbing without applying torque to the valve body.

Features and Benefits:

  • Pilot-operated diaphragm provides high flow capacity with minimum power requirements
  • Unique diaphragm design reduces unwanted particles from entering the armature area
  • Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
  • Bodies are made of polypro to withstand a variety of harsh water conditions
  • Suitable for applications using water at temperatures up to 160°F (71°C)

Water Valve Manual

Specifications:

Series Application: Commercial Ice Machine Water Valve S-54
Electrical Rating: 120V AC, 50/60 Hz, 10W
Body Material: Polypro
Inlet Size: 3/8" 18 FNPT
Operating Pressure: 20 PSI to 120 PSI
Outlet: 3/8" ID Hose
Terminals: 1/4" Male
Flow Rate: 1.25 GPM



Cross Reference:

SCOTSMAN: 12-2922-01
Robertshaw: K-74118-27, K-74118-27-AM
