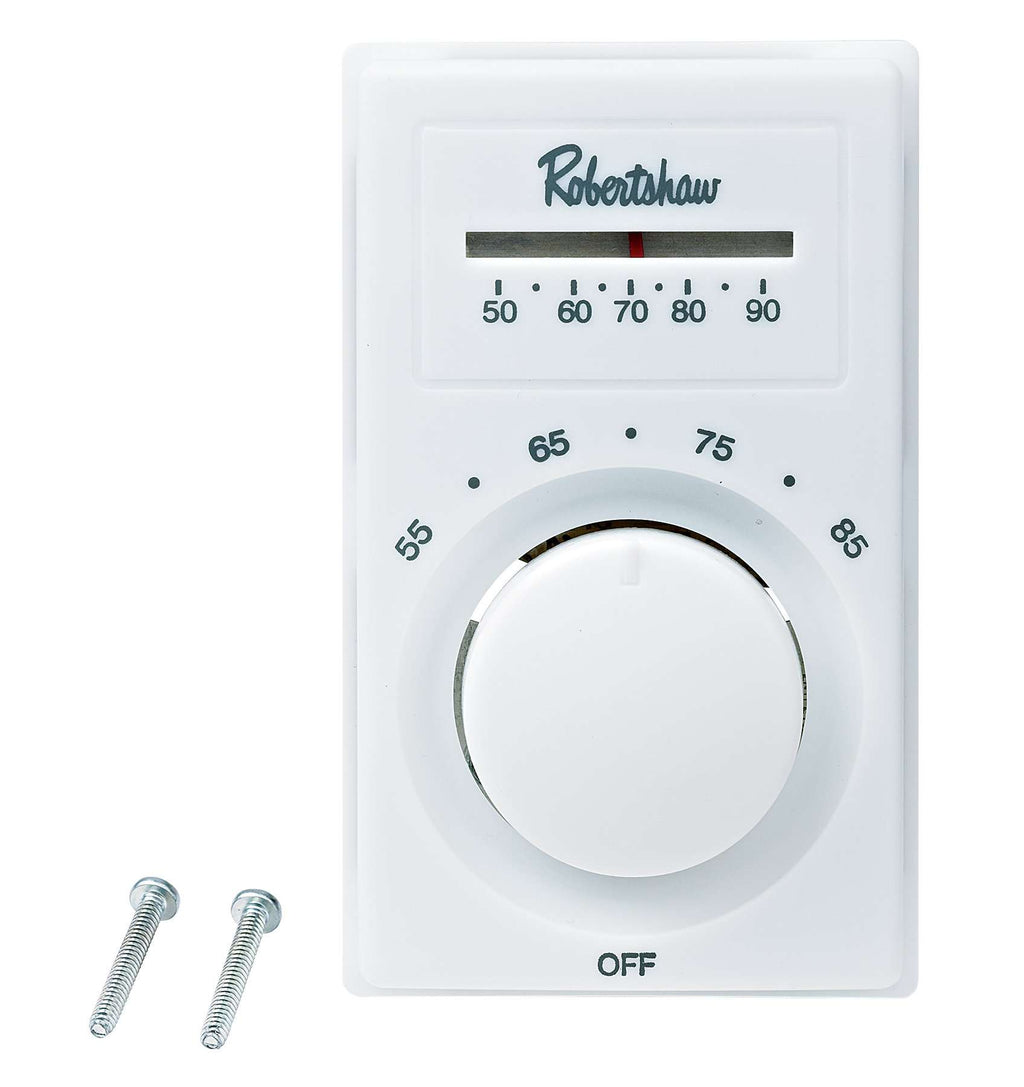

Robertshaw 802 Electric Heat Line Voltage Thermostat, DPST
Save 60%
Original price
$47.25
Current price
$18.70
SKU 802
Robertshaw 802 Electric Heat Line Voltage Thermostat, DPST
Products usually ship within 1 business day.
The Robertshaw® 800 Series Line Voltage Thermostats are universal replacements for many other brands and can be used to retrofit most existing electric heat thermostats. With models for heating that include single-line break and double-line break as well as a single-line break cooling model, there is one for every application.
- Convenient temperature display - View comfort level at-a-glance
- Bimetal temperature sensing - For improved thermal performance
- Mercury-free - No leveling or special disposal required
- J-Box compatible - Not only will it meet code, but it speeds up installation
- Positive-off switch - Assured shutdown of HVAC system
- Universal replacement - Can retrofit most existing electric heat thermostats
Specifications
Series Application: | Line Voltage |
Application: | Heating |
Electrical Rating: | 120/240/277V AC, Non-Inductive, 1/4 HP @ 120V AC, 1/3 HP @ 240V AC, 125VA Pilot Duty |
Switch: | DPST |
Temperature Range: | 50°F to 90°F (10°C to 32°C)+/- 2°F (+/- 1°C) |
