Description

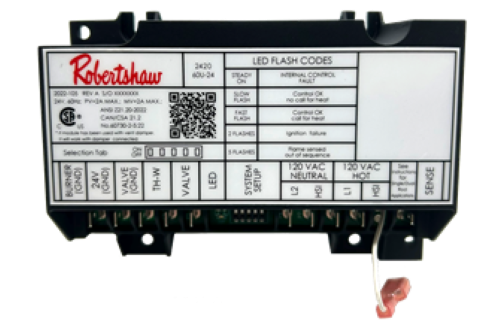

Robertshaw 780U-HS30 Universal Hot Surface Ignition Module DSI
These 24V modules are highly configurable and replace over 700 part numbers, which simplifies inventory management. They come with up to 32 preloaded configurations, making installation easy. These modules are optimized for gas furnaces, water heaters, commercial cooking equipment, and unit heaters, ensuring seamless operation across a variety of replacement models.
SPECIFICATIONS:
| Series Application: | Universal Hot Surface Ignition Module |
| Input Power: | 24VAC ± 4VAC 50-60 Hz |
| Input Current: | Max 0.25 A + Valve at 2A Max |
| High Voltage Output: | 120VAC, 5A max, 50-60 Hz |
| Flame Sensor Current: | 0.5 Microamperes (uA) minimum |
| Flame Failure Re-Ignition Time: | Maximum 1 second |
| Auto Restart: | 60 minutes |
| Ambient Temperature: | -40 °F to + 176 °F (-40 °C to +80 °C) |
| Humidity Range: | Up to 95% relative humidity non-condensing |
| Manufacturer | Part # |
|---|---|
| ARCO AIRE | HS780-34NR-306A |
| ATWOOD MOBILE PROD. | HS780-17NR-104A |
| AUTOROLL MACHINE | HS780-17NL-104A |
| FENWAL |
05-356225-051, 05-356225-052, 05-356225-053, 05-356225-054, 05-356225-055, 05-356225-151, 05-356225-152, 05-356225-153, 05-356225-154, 05-356225-155, 05-356265-051, 05-356265-052, 05-356265-053, 05-356265-054, 05-356265-055, 05-356265-151, 05-356265-152, 05-356265-153, 05-356265-154 |
| HONEYWELL | S890C1007, S890D1006, S890G1003, S890G1011, S890G1037, S890H1002, S890H1010, S89C1004, S89C1012, S89C1046, S89C1087, S89C1103, S89D1002, S89G1005, S89G1013, S89G1047, S89H1003, S89H1011, S89J1008 |
| ROBERTSHAW |
HS780-34NL-306A |
|
WHITE-RODGERS |
50E47-1, 50E47-10, 50E47-101, 50E47-102, 50E47-103, 50E47-104, 50E47-105, 50E47-106, 50E47-107, 50E47-108, 50E47-109, 50E47-11, 50E47-110, 50E47-111, 50E47-112, 50E47-113, 50E47-114, 50E47-115, 50E47-116, 50E47-117, 50E47-118, 50E47-119, 50E47-12, 50E47-120, 50E47-121, 50E47-122, 50E47-123, 50E47-124, 50E47-125, 50E47-126, 50E47-127, 50E47-128, 50E47-129, 50E47-13, 50E47-130, 50E47-131, 50E47-132, 50E47-133, 50E47-134, 50E47-135, 50E47-136, 50E47-137, 50E47-138, 50E47-139, 50E47-14, 50E47-140, 50E47-141, 50E47-142, 50E47-143, 50E47-144, 50E47-145, 50E47-146 50E47-147, 50E47-148, 50E47-149, 50E47-15, 50E47-150, 50E47-151, 50E47-152, 50E47-153, 50E47-154, 50E47-155, 50E47-156, 50E47-157, 50E47-158, 50E47-159, 50E47-16, 50E47-160, 50E47-161, 50E47-162, 50E47-163, 50E47-164, 50E47-165, 50E47-166, 50E47-167, 50E47-168, 50E47-169, 50E47-17, 50E47-170, 50E47-171, 50E47-172, 50E47-173, 50E47-174, 50E47-175, 50E47-176, 50E47-177, 50E47-178, 50E47-179, 50E47-18, 50E47-19, 50E47-2, 50E47-20, 50E47-201, 50E47-202, 50E47-203, 50E47-204, 50E47-205, 50E47-206, 50E47-207, 50E47-208, 50E47-209, 50E47-21, 50E47-210, 50E47-211, 50E47-212, 50E47-213, 50E47-214, 50E47-215, 50E47-216, 50E47-217, 50E47-218, 50E47-219, 50E47-22, 50E47-220, 50E47-221, 50E47-222, 50E47-223, 50E47-224, 50E47-225, 50E47-226, 50E47-227, 50E47-228, 50E47-229, 50E47-23, 50E47-230, 50E47-231, 50E47-232, 50E47-233, 50E47-234, 50E47-235, 50E47-236, 50E47-237, 50E47-238, 50E47-239, 50E47-24, 50E47-240, 50E47-241, 50E47-242, 50E47-243, 50E47-244, 50E47-245, 50E47-246, 50E47-247, 50E47-248, 50E47-249, 50E47-25, 50E47-250, 50E47-251, 50E47-252, 50E47-253, 50E47-254, 50E47-255, 50E47-256, 50E47-257, 50E47-258, 50E47-259, 50E47-26, 50E47-260, 50E47-261, 50E47-262, 50E47-263, 50E47-264, 50E47-265, 50E47-266, 50E47-267, 50E47-268, 50E47-269, 50E47-27, 50E47-270, 50E47-271, 50E47-272, 50E47-273, 50E47-274, 50E47-275, 50E47-276, 50E47-277, 50E47-278, 50E47-279, 50E47-28, 50E47-3, 50E47-30, 50E47-31, 50E47-32, 50E47-320, 50E47-321, 50E47-322, 50E47-323, 50E47-324, 50E47-325, 50E47-326, 50E47-327, 50E47-328, 50E47-329, 50E47-33, 50E47-33050E47-331, 50E47-332, 50E47-333, 50E47-334, 50E47-335, 50E47-336, 50E47-337, 50E47-338, 50E47-339, 50E47-34, 50E47-340, 50E47-341, 50E47-342, 50E47-343, 50E47-344, 50E47-345, 50E47-346, 50E47-347, 50E47-348, 50E47-349, 50E47-35, 50E47-350, 50E47-351, 50E47-352, 50E47-353, 50E47-354, 50E47-355, 50E47-356, 50E47-357, 50E47-358, 50E47-359 50E47-36, 50E47-37, 50E47-38, 50E47-39, 50E47-4, 50E47-40, 50E47-41, 50E47-42, 50E47-43, 50E47-44, 50E47-45, 50E47-46, 50E47-47, 50E47-48, 50E47-49, 50E47-5, 50E47-50, 50E47-51, 50E47-52, 50E47-53, 50E47-54, 50E47-55, 50E47-56, 50E47-57 50E47-58, 50E47-59, 50E47-6, 50E47-60, 50E47-61, 50E47-62, 50E47-63, 50E47-64, 50E47-65, 50E47-66, 50E47-67, 50E47-68, 50E47-69, 50E47-7, 50E47-70, 50E47-71, 50E47-72, 50E47-73, 50E47-74, 50E47-75, 50E47-76, 50E47-77, 50E47-78, 50E47-79, 50E47-8, 50E47-9, 50F47-1, 50F47-10, 50F47-101, 50F47-102, 50F47-103, 50F47-104, 50F47-105, 50F47-106, 50F47-107, 50F47-108, 50F47-109, 50F47-11, 50F47-110, 50F47-111, 50F47-112, 50F47-113, 50F47-114, 50F47-115, 50F47-116, 50F47-117, 50F47-118, 50F47-119, 50F47-12, 50F47-120, 50F47-121, 50F47-122, 50F47-123, 50F47-124, 50F47-125, 50F47-126, 50F47-127, 50F47-128, 50F47-129, 50F47-13, 50F47-130, 50F47-131, 50F47-132, 50F47-133, 50F47-134, 50F47-135, 50F47-136, 50F47-137, 50F47-138, 50F47-139, 50F47-14, 50F47-140, 50F47-141, 50F47-142, 50F47-143, 50F47-144, 50F47-145, 50F47-146, 50F47-147, 50F47-148, 50F47-149, 50F47-15, 50F47-150, 50F47-151, 50F47-152, 50F47-153, 50F47-154, 50F47-155, 50F47-156, 50F47-157, 50F47-158, 50F47-159, 50F47-16, 50F47-160, 50F47-161, 50F47-162, 50F47-163, 50F47-164, 50F47-165, 50F47-166, 50F47-167, 50F47-168, 50F47-169, 50F47-17, 50F47-170, 50F47-171, 50F47-172, 50F47-173, 50F47-174, 50F47-175, 50F47-176, 50F47-177, 50F47-178, 50F47-179, 50F47-18, 50F47-19, 50F47-2, 50F47-20, 50F47-201, 50F47-202, 50F47-203, 50F47-204, 50F47-205, 50F47-206, 50F47-207, 50F47-208, 50F47-209, 50F47-21, 50F47-210, 50F47-22, 50F47-23, 50F47-24, 50F47-25, 50F47-26, 50F47-27, 50F47-28, 50F47-29, 50F47-3, 50F47-4, 50F47-5, 50F47-6, 50F47-7, 50F47-8 ,50F47-9, 50D50-843, 50E47843, 50M56X-843 |
