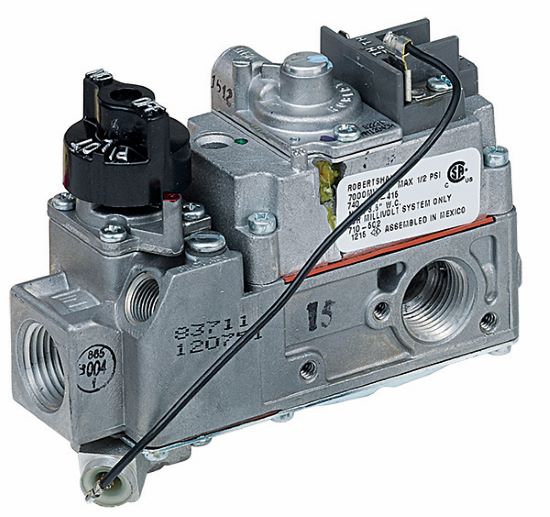

Robertshaw 710-502 Millivolt Low Capacity Gas Valve, 1/2" x 1/2", 70,000 BTU

Save 52%
Original price $227.23
Current price $109.77
SKU 710-502
Currently 36 in stock.

Robertshaw 710-502 Millivolt Low Capacity Gas Valve, 1/2" x 1/2", 70,000 BTU

The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

Features and Benefits

  • Low capacity with 3-13/16”H x 4-21/32”L x 1-29/32” W dimensions
  • Gas cock dial marking Off - Pilot - On
  • Ambient temperature of -40°F to 175°F
  • Pilot outlet 1/4” tubing
  • Maximum inlet pressure 14” WC (0.5 PSI)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
  • Multiple actuators available
  • RoHS compliant



Specifications

Series Application: Millivolt Low Capacity
Factory Part Number: 7000MVRLC
Pressure Regulation: 3.5" WC Natural Gas
Capacity: 70,000 BTU
Reducer Bushing (NPT): (2) 1/2" x 3/8"
Inlet Size: 1/2"
Electrical Rating: 250mV to 750mV
Pilot: 1/4" tubing
Application: Space heaters replaces B-67
Outlet Size: 1/2"





Cross Reference

AMF-Wyott: 2065640, 756811401
Anetsberger: P8904-82, P-8904-82
Atwood Mobile Prod.: 3551
Bradford White: 711701415
Calmex Fireplace: 711701404, 711702425
Canadian Heating Prod.: 711712412, 729701411, 778831411
Cecilware / Commodore: 785811401, L621A
Dean: 740711415
Desa: International: 768831415
Dexen: 7122410100, 71-502
Dry Mfg: 766711459, 766712472
Ducane Heating Corp.: 730811415, 730812438
Elston Mfg: 404-50, 711812428
Empire Comfort Sys.: 711702428, 711711401, 729701426, 729702405, 729711426, 729712412, 731701424, 731-701-424, 731701435, 731702409, 731702436, 731703439, 731713439, 731811468, 731813305, 731813439, 735701422, 735701424, 735702409, 735702423, 742812409, 745702412, 750701424, 750701432, 750702409, 750702433, 750711424, 750716321, 750811424, 763711468, 763712469, 763811468, 763812469, 764811465, 765711465, 765712466, 765811465, 765811491, 765812466, 765812490, 782821408, 782822409, 791821408, 791822409, 9321102, 932132, 932153, 932163, R-1209, R1209A, R1830, R2496, R2497, R2500, R2501, R3032, R3033, R3633, R3789, R3790, R-778, R-847
Enerco: 14160A, 711702402
Fireplace Manufac.: 142001, 14201, 14436, 711711417, 729701404, 769831411, 777831411, 780831411
Fireplace Products Intl.: 910-195
Gasglo Ind.: 729711404
Gas Technologies: 60-500, 711701401, 730702438
Glo-Fire Inc.: 768822455, 777832455, 778821454, SV-MVN, SV-MVP
GSW: 711711415, 760711454
Haughs Products: S11191
Heatilator: 12191A, 12191B, 12191C, 25810, 711702427, 730701415, 749711401, 762711460, 768831417, 768831496, 768832412768832466
Heatmaster: 711702412
Heat-N-Glo: 42-500, 42-500A01, 47-50001, 47-500A02, 47-501A01, 47-501A02, 60-50001, 60-500D01, 60-501, 60-50101, 60-501D01, 711711404, 711712428, 730711415, 730712438, 742711417, 749701401, 760712455, 760713458, 761711454, 761712455, 768821454, 768823458, 769821454, 769822455, 772821417, 784821316, 784822317, 788821316
Hi-Teck Stoves: FA033
Honeywell: VS8194E1304, VS8194F1113, VS8194R1003, VS8194R1011, VS8194R1029, VS8194R1037, VS8310B1002, VS8310B1010, VS8310B1028
Hunter Energy: 711812412, 730711421, 730811421, 731712409, 731812409, 914132, 916120, 916657
Hunter Technologies: 768822412, 769821421, 769822409, 902427, 911466
Hydroflame Corp.: 711702403
Hydrotech Chemical Corp.: 748701413, 748702402, P32683
Imperial: 315, 748811322
Invensys Climate Controls: 711712403
ITT / General: B67RA56, RV68R10
Johnson Gas Appl.: 05-02-00181
Johnstone Supply: L37-437
Louisville Tin & Stove: 70089, 70090, 70091, 742702412, 742712412, 750703437, 750713437
Maddox Co: 200, 201, 202, 768832428, 768833437, 781831415, 781832428, 781833437
Majestic: 51836, 711701417, 711702418, 711703437, 711712418, 711713437, 729811404, 749702425, 749811316, 749811401, 749812425, 7529109C
Marco Mfg: 762711459, L116135A
Martin Ind.: 038246A, 038251A
Monessen Hearth Systems: 27D3300, 27D3306, 32D0211, 784831324, 784831417, 784831426, 784832412
Orrville Prod.: 71019, GP7500
Pacfab: 072125, 748812402
Portland Willamette: 729712405, 729812405, 80-0016-35-0050-00, 80-0016-35-0051-00
Precision Gas Technologies: 60-500D, 768821316
Rheem: 742811408
Robert H Peterson: 711811413, SV-6
Robertshaw: 7000MVRCLC, 7000MVRLC, 707-701-401, 711-701-404, 711-701-411, 711-701-413, 711-701-415, 711-701-417, 711-701-434, 711-711-404, 711-711-413, 711-711-415, 711-711-417, 729-701-404, 729-701-411, 729-701-426, 729-711-404, 729-711-411, 729-711-426, 730-701-411, 730-701-415, 730-701-421, 730-711-411, 730-711-415, 730-711-421, 735-701-422, 735-711-422, 737702402, 740-701-401, 740-711-401, 740-711-415, 740-811-415, 742-701-411, 742-701-417, 742-711-411, 742-711-417, 749-701-401, 749-711-401, 750-701-424, 750-701-432, 750-711-424, 750-711-432, 753-701-401
Star Mfg Co.: 2J-Z0601
Superior Fireplace: 009737, 093771, 711811417, F9737, F9737B
Sure Heat: 729711411, 768831411, 778832412
Timberline: 711811404, 749811413, SV-7000MV
Tri-Star Inc.: 300341
Uni-Line: 63427, 710-504, 710-506, 730701421, 740811415
United States Stove: 740711401
Whirlpool: 99721574
Williams Furnace: 730701413, 740701401, 742701429, 742702418, 742703431, 742711429,742712327, 742713333, 742813431, 745701429, 745702427, 745711325, 745712326, P295200A, P295201A, P323011, P323012
Wolf Range: 768821328, 768821417, 784821328, WS 725 13, WS-725-13
