Robertshaw 700-515 Millivolt Gas Valve, 3/4" x 3/4", 485,000 BTU
Save 49%
Original price
$387.50
Current price
$198.79
SKU 700-515

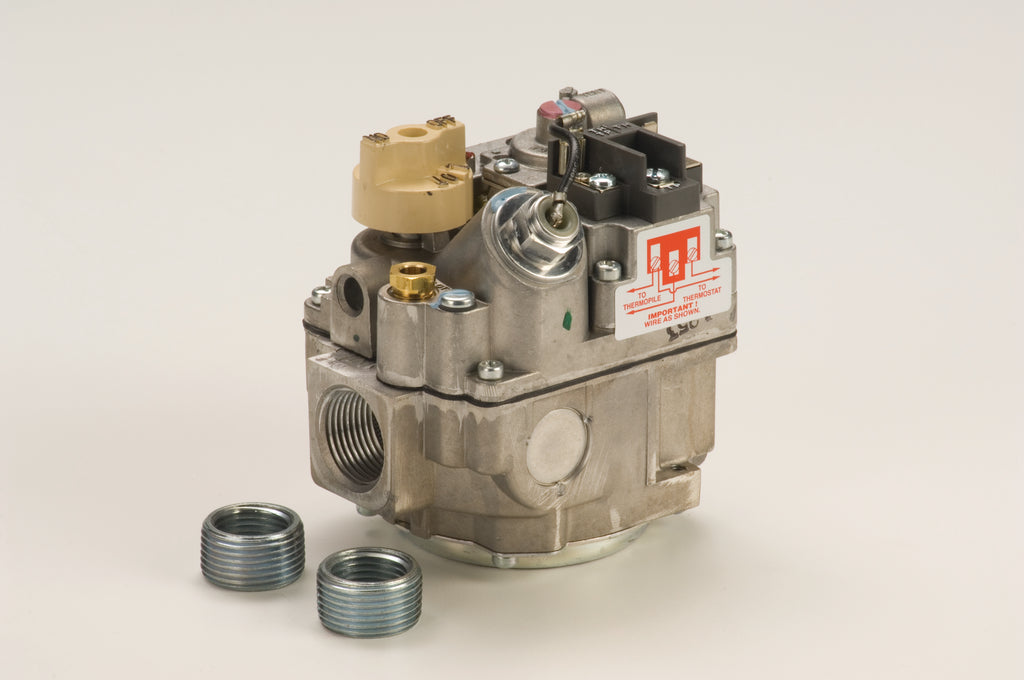

Robertshaw 700-515 Millivolt Gas Valve, 3/4" x 3/4", 485,000 BTU
The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.
Features and Benefits
- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4” tubing
- Ambient temperature of -40°F to 175°F
- Terminal type combination screw/spade
- Maximum inlet pressure 14” WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- RoHS compliant
Specifications
| Series Application: | Millivolt Diaphragm/Solenoid Gas Valve |
| Factory Part Number: | 7000BMVR-LP |
| Pressure Regulation: | 10.0" WC LP Gas |
| Capacity: | 485,000 BTU |
| Reducer Bushing (NPT): | 2 |
| Inlet Size: | 3/4" |
| Electrical Rating: | 250mV to 750mV |
| Pilot: | 1/4" tubing |
| 3 Position Outlet Straight-Thru (FPT): | 3/4" |
| 3 Position Outlet Side (FPT) with Plugs: | Straight-Thru |
Cross Reference
| American Range: | 343812425, A80103 |
| Anetsberger: | 359702458 |
| Avalon Donut Equipment: | 359702425 |
| Bakers Pride: | 359812458, R3124A |
| Cecilware / Commodore: | 342702458, L348A |
| Dean: | 1909, 342702425, 342812425, 4B1702425 |
| Frymaster: | 341812457, 343702456, 343812456, 359702457, 8070755, 8070756, 8072424, 8072425 |
| Garland: | 343702457, 359702446, F807-0115P, F810-0014P |
| Henney Penney: | 343812458 |
| Hobart Corp: | 410841-23 |
| Honeywell: | VS820A1336, VS820H1125, VS820H1190, VS820V1030 |
| Imperial: | 0365-1, 1174, 343812458A, |
| Keating / KKO Inc.: | 4B5702446 |
| Lennox Industries: | 341702457, 343702425 |
| Perfection / Schwank: | 4D2702458, 4E1702458 |
| PMI: | 343702458, 348392-2, 359702473, 359702490, 4038124A1, 84171-21 |
| Pre-Mark Intl (PMI Food Equip): | 359812490A |
| PVI Ind Inc: | 4511-07512 |
| Robertshaw: | 342-702-425, 343-702-425, 343-702-425A, 343-702-456, 343-702-458, 343-812-425, 343-812-425A, 359-702-446, 359-702-456, 359-702-457, 7000AMVR-LP, 7000BMVR-LP |
| South Bend Range: | 1182153 |
| Thermatek: | 319852458, 80005-01 |
| Uni-Line: | 63300, 343812425A |
| White-Rodgers: | 36C03U400, 36C03U-400 |
