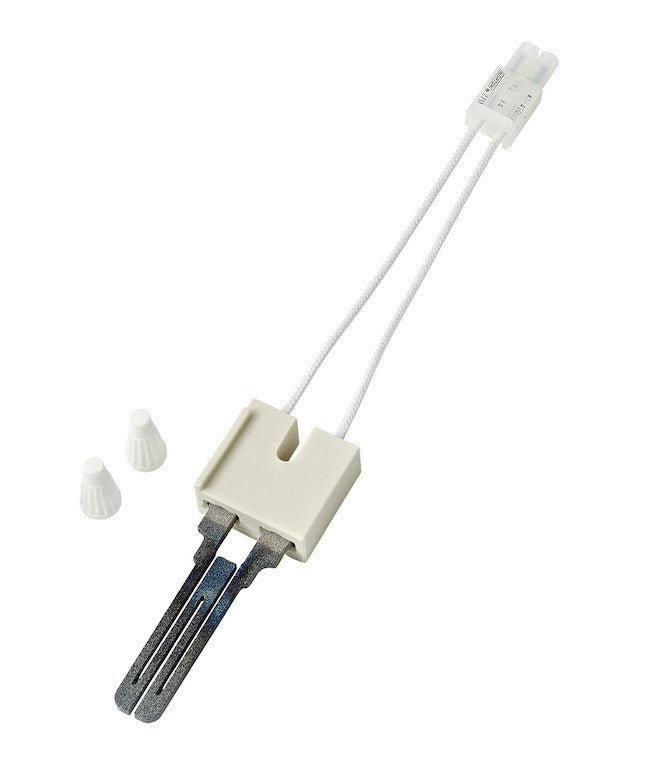

Robertshaw 41-410 Hot Surface Furnace Ignitor, Trane Replacement
Save 55%
Original price
$39.09
Current price
$17.60
SKU 41-410
Robertshaw 41-410 Hot Surface Furnace Ignitor, Trane Replacement
The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.
Features and Benefits
- Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
- Designed to reach ignition temperature(s) within 17 seconds
- Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
- Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
- Operate at 120V AC. Some modules are rated form 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC
Specifications
Series Application: | Hot Surface Furnace Ignitor (Carbide) |
Factory Part Number: | 271N |
Ceramic Block Style: | B |
Lead Wire Length: | 5-1/4" (130.2mm) |
Terminal Connector Type: | B |
Cross Reference
Amana: | B144676P01 |
DiversiTech: | IGN-410 |
Eaton: | FI-410 |
Honeywell: | Q4100C9058/U |
Johnstone Supply: | L39-627 |
Mars: | 68016 |
Norton: | 271N, MB457551, MB478270 |
Repair Clinic: | 5502040 |
Robertshaw: | 41-401N |
Starlite: |
1410 |
Supco: | IG410, SIG-410 |
Surface Ignitor Company (SIC): | DS410, DS410KX |
Trane: | B144676P01 |
Uni-Line: | 63475 |
White-Rodgers: | 767A-377 |
