Robertshaw 41-401 Hot Surface Furnace Ignitor, Amana Replacement
Save 65%
Original price
$54.74
Current price
$19.29
SKU 41-401

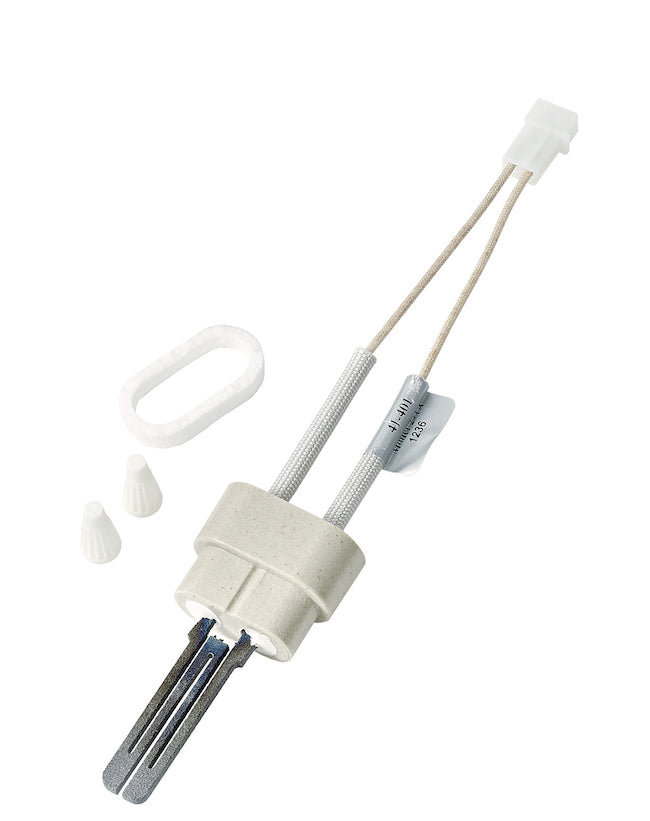

Robertshaw 41-401 Hot Surface Furnace Ignitor, Amana Replacement
The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.
Features and Benefits
- Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
- Designed to reach ignition temperature(s) within 17 seconds
- Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
- Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
- Operate at 120V AC. Some modules are rated form 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC
Specifications
Series Application: | Hot Surface Furnace Ignitor (Carbide) |
Factory Part Number: | 271A |
Ceramic Block Style: | A |
Lead Wire Length: | 5-1/2" |
Terminal Connector Type: | A |
Cross Reference
Amana: | 10041601, B1336102, D99182, D9918202A |
Barnett Brass: | 661923 |
DiversiTech: | IGN-401 |
Eaton: | FI-401 |
Grainger: |
5JA28 |
Heatmaker: | 2400-048, 2400-286, 2600-359, 3079-100, 9330-102 |
Honeywell: | Q4100C9042/U |
Johnstone Supply: | L37-698 |
Lennox: | 96P01, 96P0101 |
Mars: | 67914 |
Norton: | 201A, 271A, 271Q, MB258909 |
Raytheon: | D9918202A |
Repair Clinic: | 1472593 |
Robertshaw: | 41-401N, nmnn |
Startite: |
11120-100-1401, 1401 |
Supco: | IG401, SIG-401 |
Surface Ignitor Company (SIC): | DS401, DS401KX |
Uni-Line: | 63466 |
Whirlpool: | 99794322 |
White-Rodgers: | 767A-309, 767A-352, 767A-356, 767A-369, F767A-369 |
