Robertshaw 1810-100 Universal Pilot Assembly Kit

$34.71
SKU 1810-100
Currently 52 in stock.

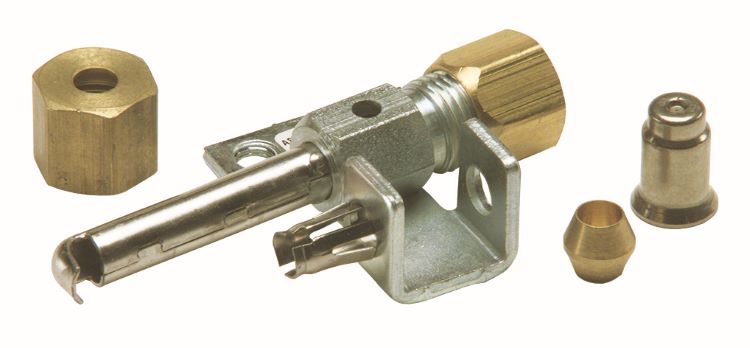

Robertshaw 1810-100 Universal 2B Pilot Assembly Kit

The 1810-100 Universal 2BLC Pilot Uni-Kit® is designed to replace the obsolete Model 2B/2BLC Pilot which is no longer in production. The kit includes fittings for 1/4" tubing and an adaptor and fittings to adapt to 3/16" tubing. Each kit comes with a Natural gas orifice installed and includes a separate LP Gas orifice. The 1810-100 is an aerated, constant burning pilot for main burner ignition. When used with the Uni-Line® 1980-1970 Series or similar thermocouples, it provides a heat source for the thermo-electric automatic pilot magnet.



SPECIFICATIONS

Series Applications: Universal 2BLC Pilot Uni-Kit





Cross Reference

Johnstone Supply: L36-650
Robertshaw: 17978, S-23-12
Uni-Line: 1810-201, 1810-203, 1810-204, 1810-206, 1810-301, 1810-303, 1810-304, 1810-306, 1810-307, 1810-308, 1810-309, 1810-500, 1810-502, 1810-504, 1810-506, 1830-C014, 1840-500, 1840-502, 1840-504, 1840-506, 63719
