Ritchie Yellow Jacket 93600 BULLET™ 7 CFM Vacuum Pump

Sold out
$338.95
SKU 93600

The BULLET™ pulls down to 25 microns or better, protecting from contaminants and non-condensable gasses in the HVAC system, which can damage components, reduce efficiency and cause system failure.

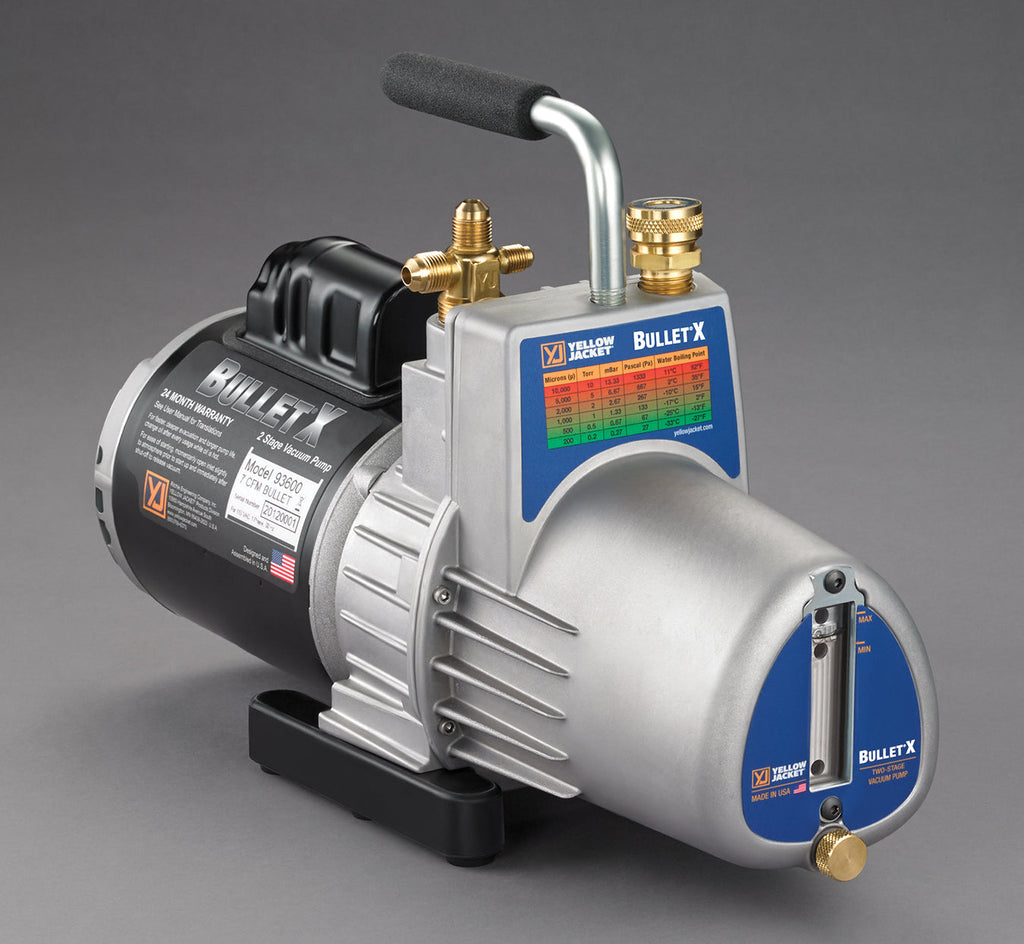

The Yellow Jacket Bullet vacuum pump features a two-stage, heavy-duty rotary vane design. With the ability to pull down to 25 microns or better, the vacuum pump improves efficiency and evacuation. When there's a power failure, the pump's intake check valve stops oil from backing up into the system. An intake filter screen prevents particles from entering the pump and potentially damaging the internal parts. The handy oil sight glass lets you keep an eye on the oil levels at all times.



FEATURES

• Wide-mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust -- threaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy duty rotors and bearings
• Heavy duty steel handle for well-balanced carrying
• Tethered port caps stay with the pump
• Stable base; wide-stance metal with rubber overlay
• Made in USA

SPECIFICATIONS

• Free air displacement:  7 CFM
• Number of stages:  Two-stage rotary vane
• Field blankoff:  25 microns
• Intake:  1/4" x 3/8" x 3/8"
• Motor:  1/2" hp - 1725 rpm
• Thermal overload protection
• Voltage (single phase):  115V/60 Hz
• Power cord:  6' - motor mounted switch
• Oil capacity:  28 oz. / 0.828 L
• Dimensions:  16.25" L x 6" W x 11.5" H
• Net weight:  31.6 lbs. / 14.3 kg
