Resideo VR8300A3500/U Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve, 1/2" x 3/4", 3.5" WC
$150.31
SKU VR8300A3500/U

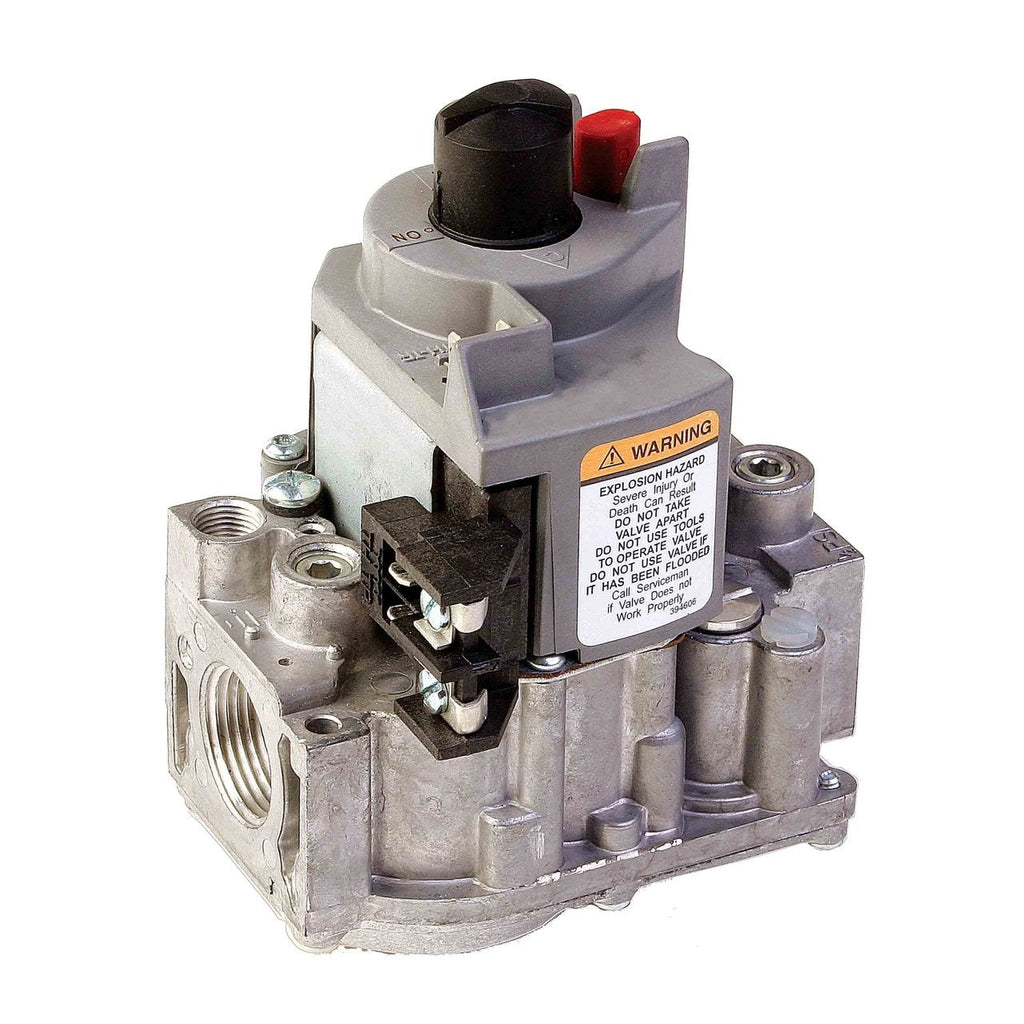

Resideo VR8300A3500/U Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve, 1/2" x 3/4", 3.5" WC
Compact Standing Pilot Valves
These compact standing pilot gas valves from Resideo are designed for use in 24 V AC, gas-fired appliances with capacities from 30 to 300 cfh. Control includes safety shutoff, manual valve, two automatic operators, pressure regulator, and pilot adjustment.
- Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
- Compact size.
- Provides two automatic valves.
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meets codes requiring dual safety shut-off.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
Brochure
Installation Instructions
Lighting Instructions
Specifications
Application: |
Single Stage |
Dimensions: |
5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep |
Includes: | Natural to LP Conversion Kit; One 3/4" x 1/2" reducer bushing |
Mounting: | 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. |
Frequency: | 60 Hz |
Electrical Connections: | 1/4 in. quick connect male terminals |
Voltage: | 24 Vac |
Operating Temperature Range (F): | 0 F to 175 F |
Body Pattern: | Straight-Through |
Opening Characteristics: | Standard Opening |
Pressure Ratings (psi): | 1/2 psi |
Inlet/Outlet Size (in.): | 1/2 in. x 3/4 in. |
Pilot Gas Outlet: | Compression fitting for 1/4 in. OD tubing |
Pressure Tapping: | 1/8 in. NPT with plug |
Type of Fuel: | Natural (LP with included conversion kit) |
Capacity (kBtuh): | At 1 in. wc p.d.-- 190,000 BTUh: 30,000 BTUh minimum: 290,000 BTUh maximum Natural Gas |
Pressure Regulator: | Standard |
Pressure Regulator Setpoint (in. wc): | 3.5 in. wc |
Ignition Type: | Standing Pilot |
