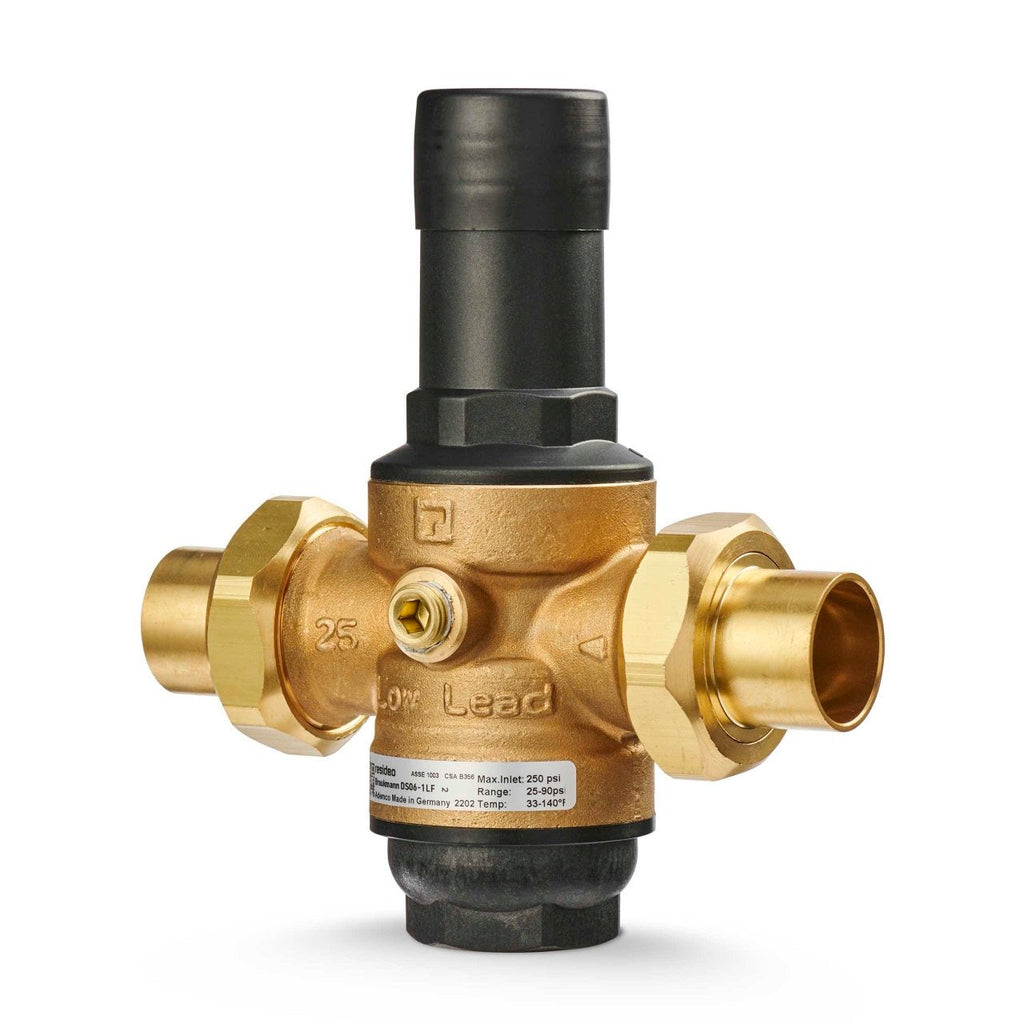

Resideo Braukmann DS06-102-DUS-LF/U DialSet Pressure Regulating Valve, 1" Double Union Sweat, Lead Free

$123.60
SKU DS06-102-DUS-LF/U
Currently 5 in stock.

Resideo Braukmann DS06-102-DUS-LF/U DialSet Pressure Regulating Valve, 1" Double Union Sweat, Lead Free

Regulating Water Pressure Made Easy

The Braukmann DS06 DialSet Pressure Regulating Valve (PRV) from Resideo supports potable water and irrigation applications in ensuring a constant outlet pressure. It features a downstream pressure adjustment dial that removes the need for a pressure gauge when adjusting settings (static pressure only).

FEATURES

  • Built-In Dial-Set™- no guage is needed to install or set static pressure.
  • Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
  • Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
  • Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, singleunion or double-union configurations.
  • 1/4" NPT tap accessible from both sides to validate output
  • Built in strainer to simplify maintenance
  • Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant


Sell Sheet

Resideo Braukmann Potable Water Brochure

Installation Instructions

Submittal Sheet


Specifications

Dimensions (in.):
 6-15/16 in. high x 3-15/16 in. long (Union body no tailpieces)
Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance The wettable surfaces contain less than 0.25% of lead by weighted average
Operating Temperature Range (F): 140° F Maximum

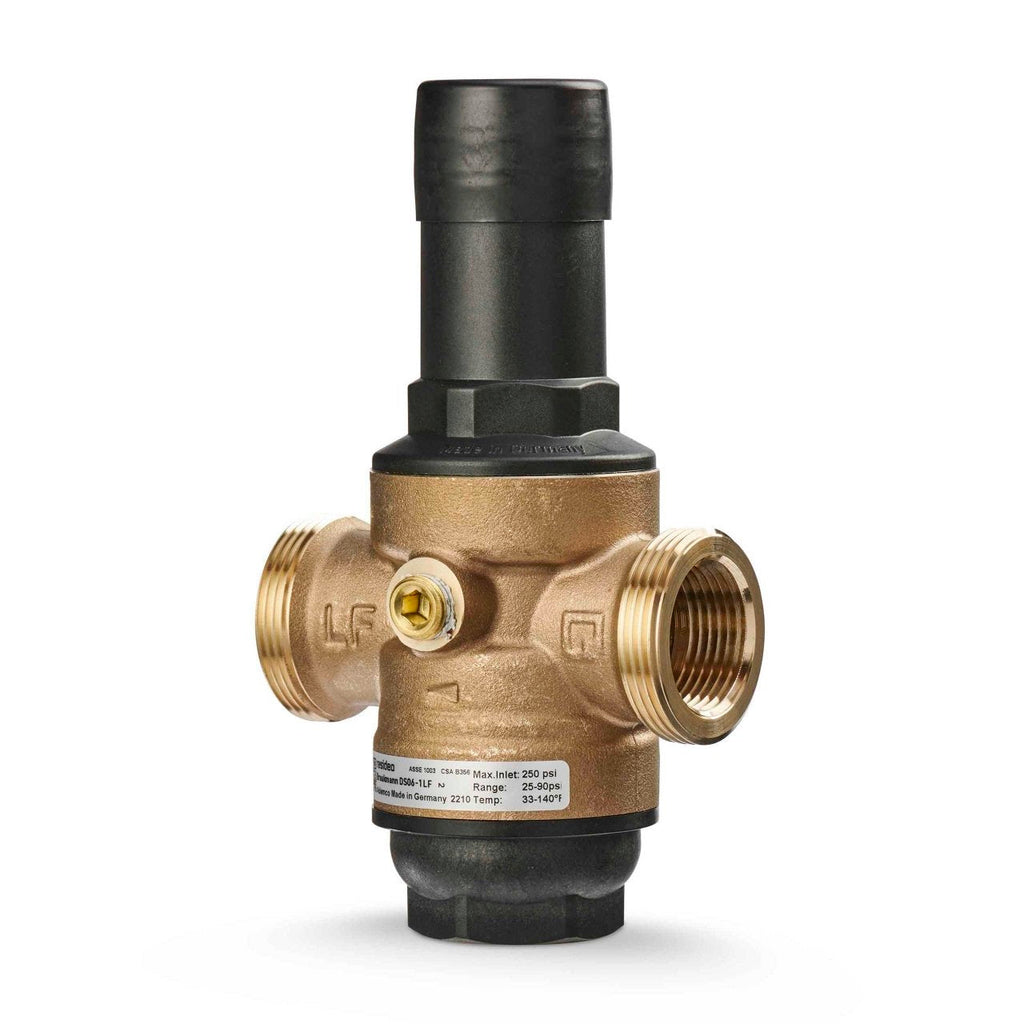

Connection Type: 1" Double Union Sweat (Female NPT Threaded Inlet & Outlet Externally threaded for Unions)
Outlet Pressure Adjustment Range (psi): 25-90 psi
Max. Inlet Pressure Rating (psi): 250 psi
Gauge Tap: 1/4 in. NPT (two, one on each side of body).
Materials (Body): Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics.
Calibrated Adjustment Dial:
 YES
Reducing Ratio:
 10:1
Union Fittings: Double-Union Sweat
