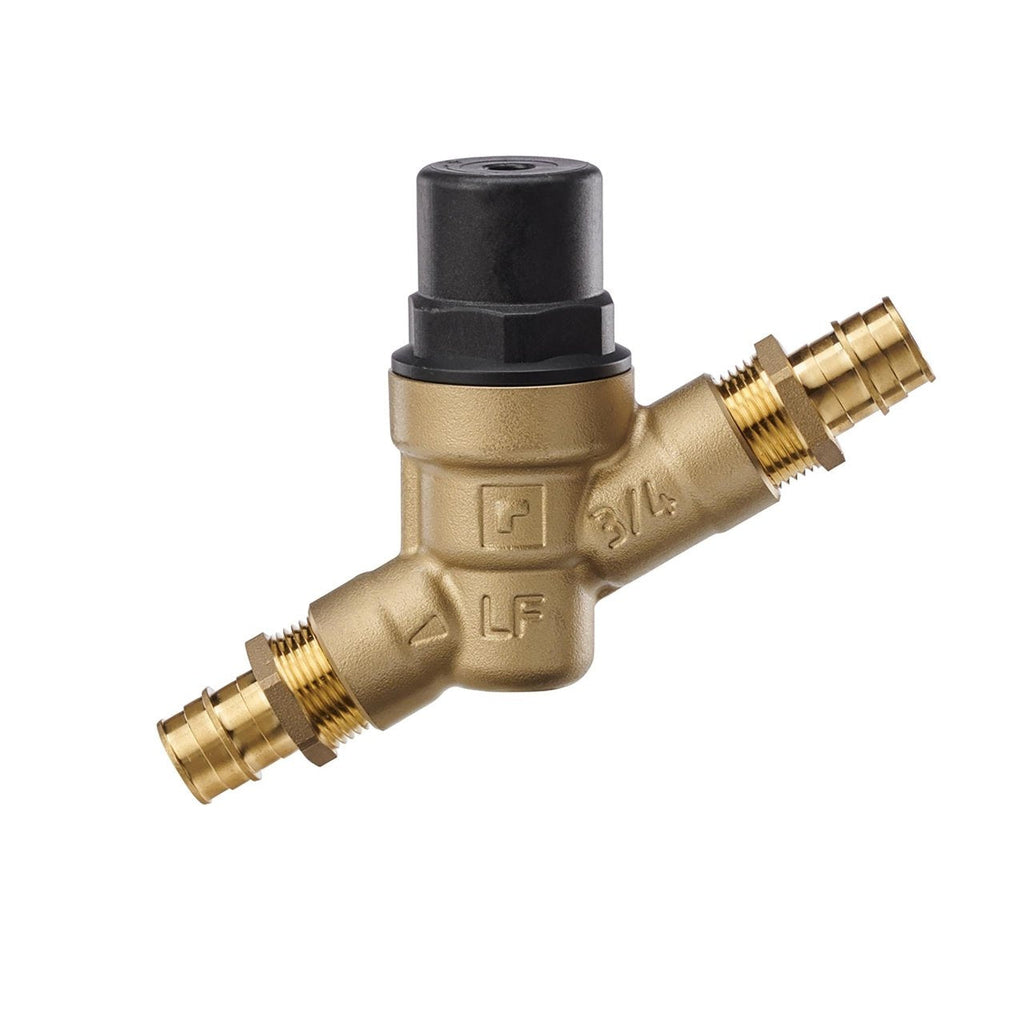

Resideo Braukmann DS05-102-PEX-LF/U Pressure Regulating Valve, 1" PEX Connections, Lead Free
$58.63
SKU DS05-102-PEX-LF/U
Resideo Braukmann DS05-102-PEX-LF/U Pressure Regulating Valve, 1" PEX Connections, Lead Free
The Resideo Braukmann DS05 is a high-quality balanced pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It has a simple design with NPT or pre-assembled Push Connect and PEX F-1960 fittings. Available in ¾" and 1", the six SKUs require no additional parts, making it a low-cost go-to for every new construction. It is suitable for potable water and irrigation applications, both indoor and outdoor.
**Image is for physical representation. Title and description are accurate.**
Sell Sheet
Resideo Braukmann Potable Water Brochure
Installation Instructions
Submittal Sheet
Specifications
Dimensions (in.): |
7.0 x 4.2 |
Approvals and Standards: | Lead Free Plumbing Code Compliance: The wettable surfaces contain less than 0.08% of lead by weighted average, ASSE 1003-2020 Listed, CSA B356 Listed, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant |
Operating Temperature Range (F): | 140° F Maximum |
Connection Type: | 1" PEX Connections Threaded |
Outlet Pressure Adjustment Range (psi): | 15-80 psi |
Max. Inlet Pressure Rating (psi): | 250 psi |
Materials (Body): | Lead-free ECO BRASS® |
Calibrated Adjustment Dial: |
NO |
Reducing Ratio: |
10:1 |
Union Fittings: | PEX Connection |
