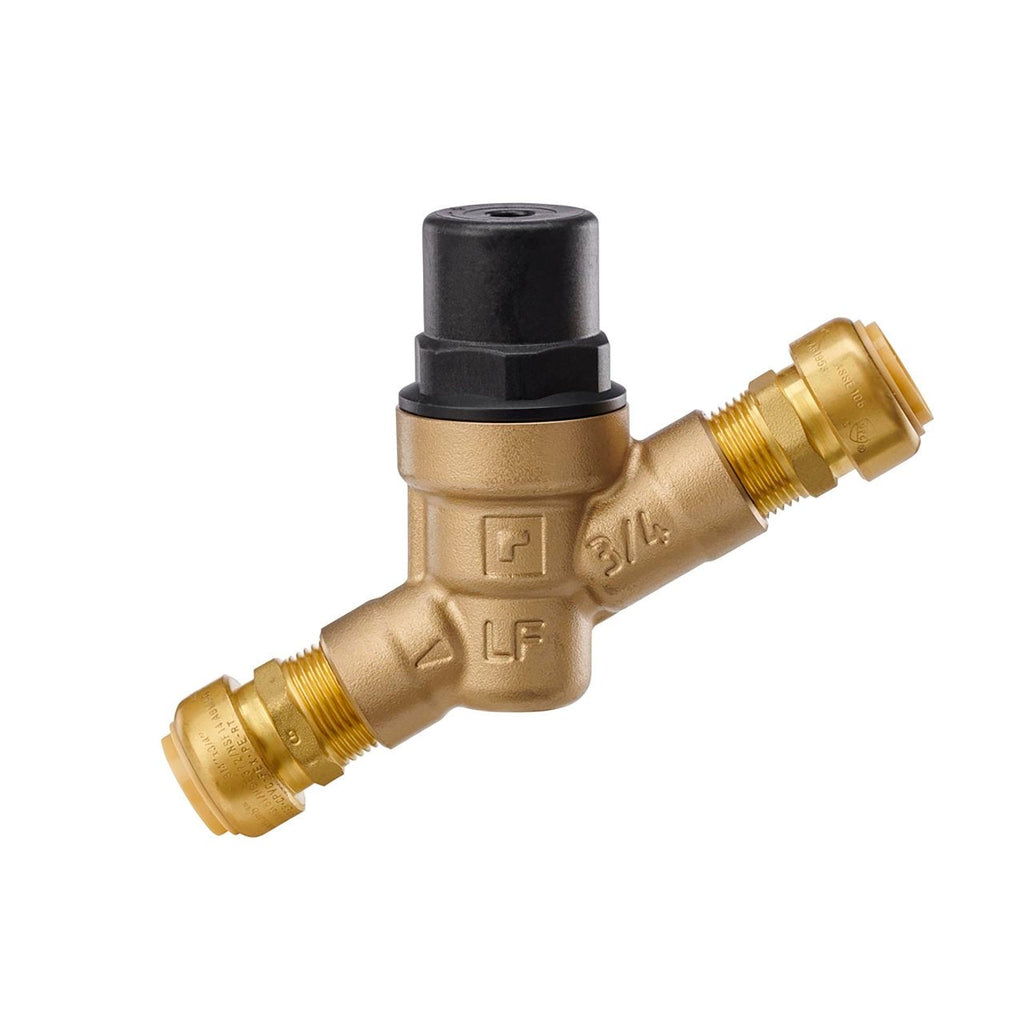

Resideo Braukmann DS05-101-SB-LF/U Pressure Regulating Valve, 3/4" Push Connection, Lead Free

$58.63
SKU DS05-101-SB-LF/U
Currently 8 in stock.

Resideo Braukmann DS05-101-SB-LF/U Pressure Regulating Valve, 3/4" Push Connection, Lead Free

The Resideo Braukmann DS05 is a high-quality balanced pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It has a simple design with NPT or pre-assembled Push Connect and PEX F-1960 (Cold Expansion) fittings. Available in ¾" and 1", the six SKUs require no additional parts, making it a low-cost go-to for every new construction. It is suitable for potable water and irrigation applications, both indoor and outdoor.


Sell Sheet

Resideo Braukmann Potable Water Brochure

Installation Instructions

Submittal Sheet


Specifications

Dimensions (in.):
6.4 x 4.2
Approvals and Standards: Lead Free Plumbing Code Compliance: The wettable surfaces contain less than 0.08% of lead by weighted average, ASSE 1003-2020 Listed, CSA B356 Listed, IAPMO Listed, ASSE 1061, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
Operating Temperature Range (F): 140° F Maximum
Connection Type: 3/4" Push Connections Threaded
Outlet Pressure Adjustment Range (psi): 15-80 psi
Max. Inlet Pressure Rating (psi): 250 psi
Materials (Body): Lead-free ECO BRASS®
Calibrated Adjustment Dial:
NO
Reducing Ratio:
10:1
Union Fittings: Push Connection
