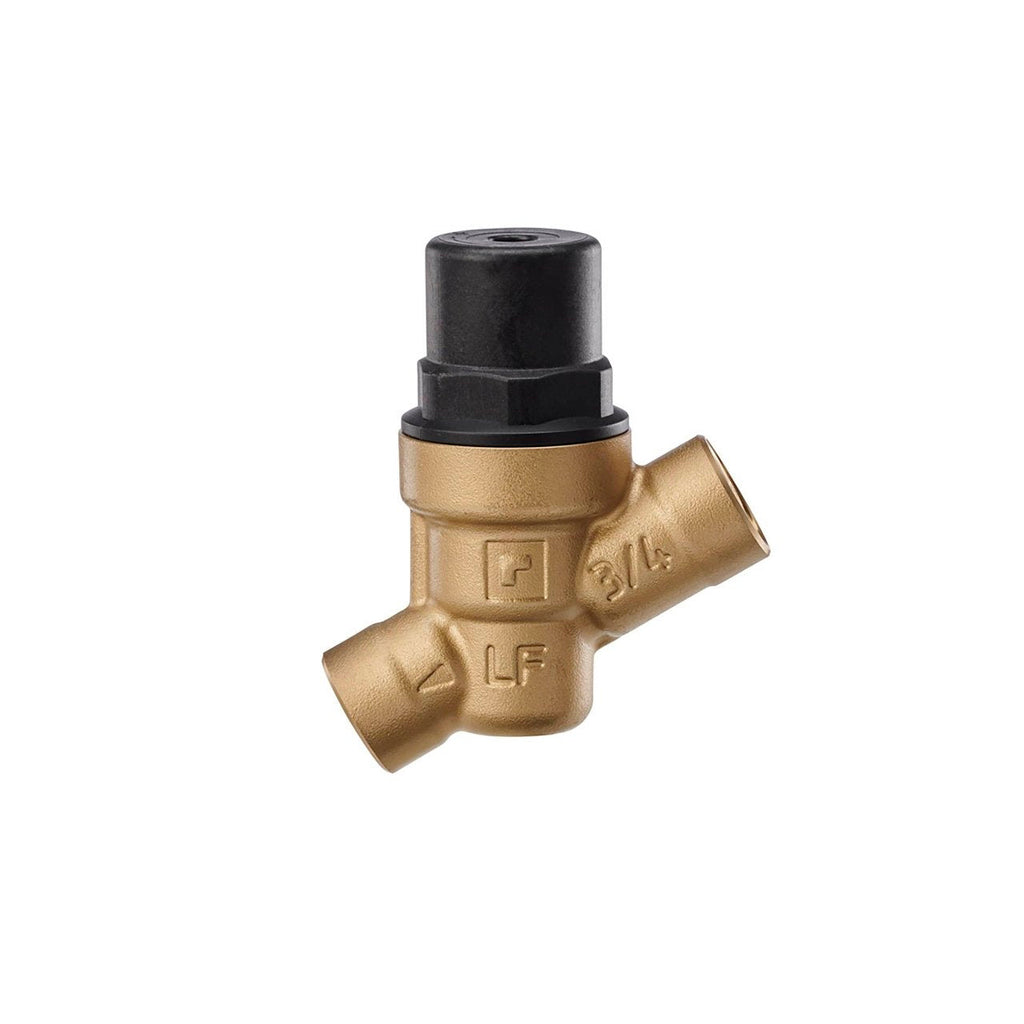

Resideo Braukmann DS05-101-LF/U Pressure Regulating Valve, 3/4" Female NPT, Lead Free
$39.57
SKU DS05-101-LF/U
Resideo Braukmann DS05-101-LF/U Pressure Regulating Valve, 3/4" Female NPT, Lead Free
The Resideo Braukmann DS05 is a high-quality balanced pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It has a simple design with NPT or pre-assembled Push Connect and PEX F-1960 fittings. Available in ¾" and 1", the six SKUs require no additional parts, making it a low-cost go-to for every new construction. It is suitable for potable water and irrigation applications, both indoor and outdoor.
Sell Sheet
Resideo Braukmann Potable Water Brochure
Installation Instructions
Submittal Sheet
Specifications
Dimensions (in.): |
3.7 x 4.2 |
Approvals and Standards: | Lead Free Plumbing Code Compliance: The wettable surfaces contain less than 0.08% of lead by weighted average, ASSE 1003-2020 Listed, CSA B356 Listed, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant |
Operating Temperature Range (F): | 140° F Maximum |
Connection Type: | 3/4" Female NPT Threaded |
Outlet Pressure Adjustment Range (psi): | 15-80 psi |
Max. Inlet Pressure Rating (psi): | 250 psi |
Materials (Body): | Lead-free ECO BRASS® |
Calibrated Adjustment Dial: |
NO |
Reducing Ratio: |
10:1 |
Union Fittings: | Body Only |
