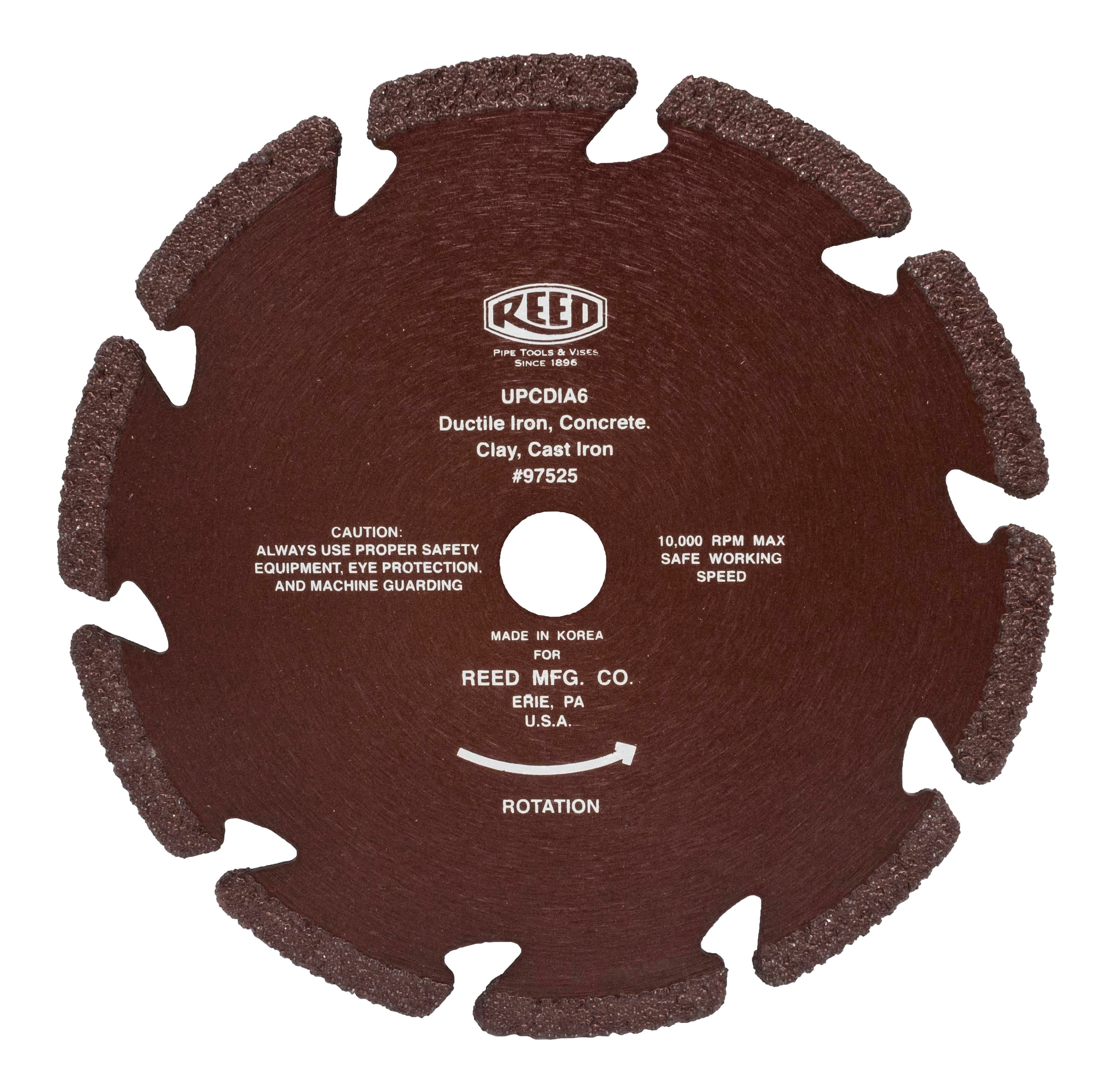

Reed Mfg UPCDIA6 6" Universal Pipe Cutter Diamond Blade for 8" to 48" Cast/Ductile Iron

Blades for REED Universal Pipe Cutters are sold separately to allow the operator to choose the best blade for the job. To choose a blade, operator must consider the application and then review the description to make the best choice. REED blades are available to cut steel, PVC, PE, Cast Iron, Pit Cast, Ductile Iron, Clay or Concrete. PVC Bevel Cutter Accessory UPCBPVC produces a 15 degree bevel on the pipe. This bevel accessory must be used with a blade for PVC.

CAUTION

• When cutting steel, ductile iron, or cast iron, the UPC can produce sparks.
• When cutting steel pipe with the steel blades or "DIA" blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts.


Features

• Description:  6" UPC BLADE, Diamond Grit Edge, cut up to 1 23/32" (43.7 mm) wall thickness
• Pipe Diameter:  8"- 48" (200-1300 mm)
• Application:  Cast Iron, Pit Cast, Ductile Iron, Clay, Concrete
• Arbor Size:  5/8" (15.87 mm)
