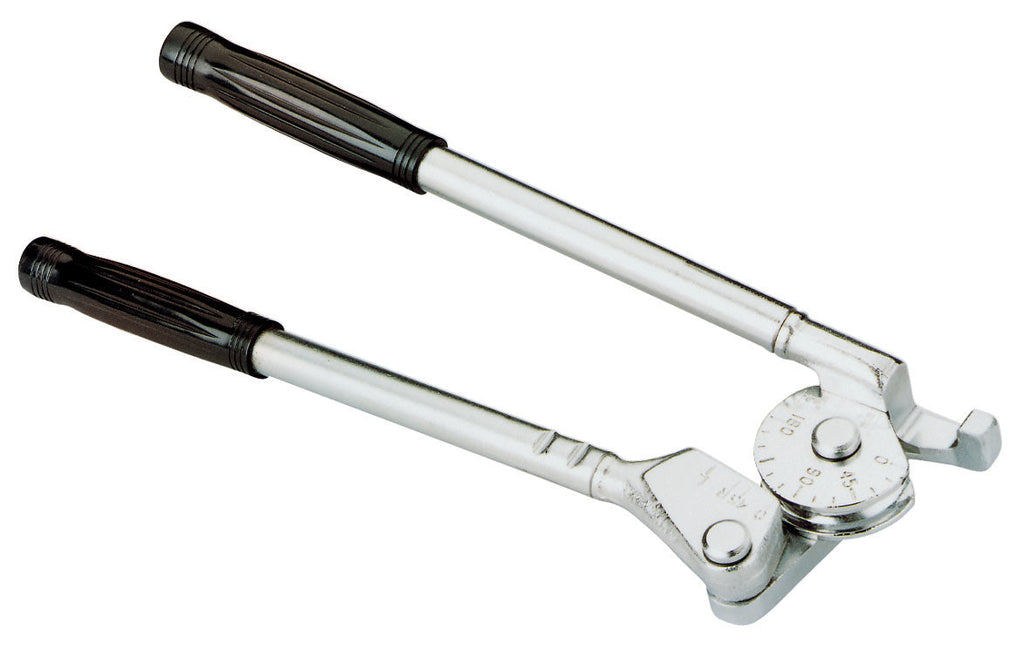

Reed Mfg TB04 1/4" Tubing Bender

REED Tubing Benders, in popular sizes, are ideal for bending soft metal tubes of copper, steel, stainless steel, and aluminum. The tubing benders should not, however, be used on extremely thin or hard-tempered material. All metal parts are chrome plated for corrosion resistance. Starting at a 90° angle, ergonomic round offset handles allow bends up to 180°. Calibrated angle markings appear every 15°, with separate gauge marks for right (R), left (L), and normal (O).

• For bending soft or annealed tubing only, including Copper Type K or L, aluminum, brass, steel and up to .032” wall (0.8 mm wall) stainless steel tubing.
• Ergonomic, offset handles allow bends up to 180 degrees.
• All metal parts are chrome plated for corrosion resistance.
• Easy to read markings on tool.
• Actual O.D. in.:  1/4
• Bend Radius:  9/16

• Weight:  1.0 lb

Parts Diagram

Manual
