Reed Mfg R450PAL Chain Tripod Pipe Vise, 1/8" - 6", Aluminum Legs, Neoprene Coated Jaws

Save 5%
Original price $673.95
Current price $640.25
SKU 04456
Currently 6 in stock.

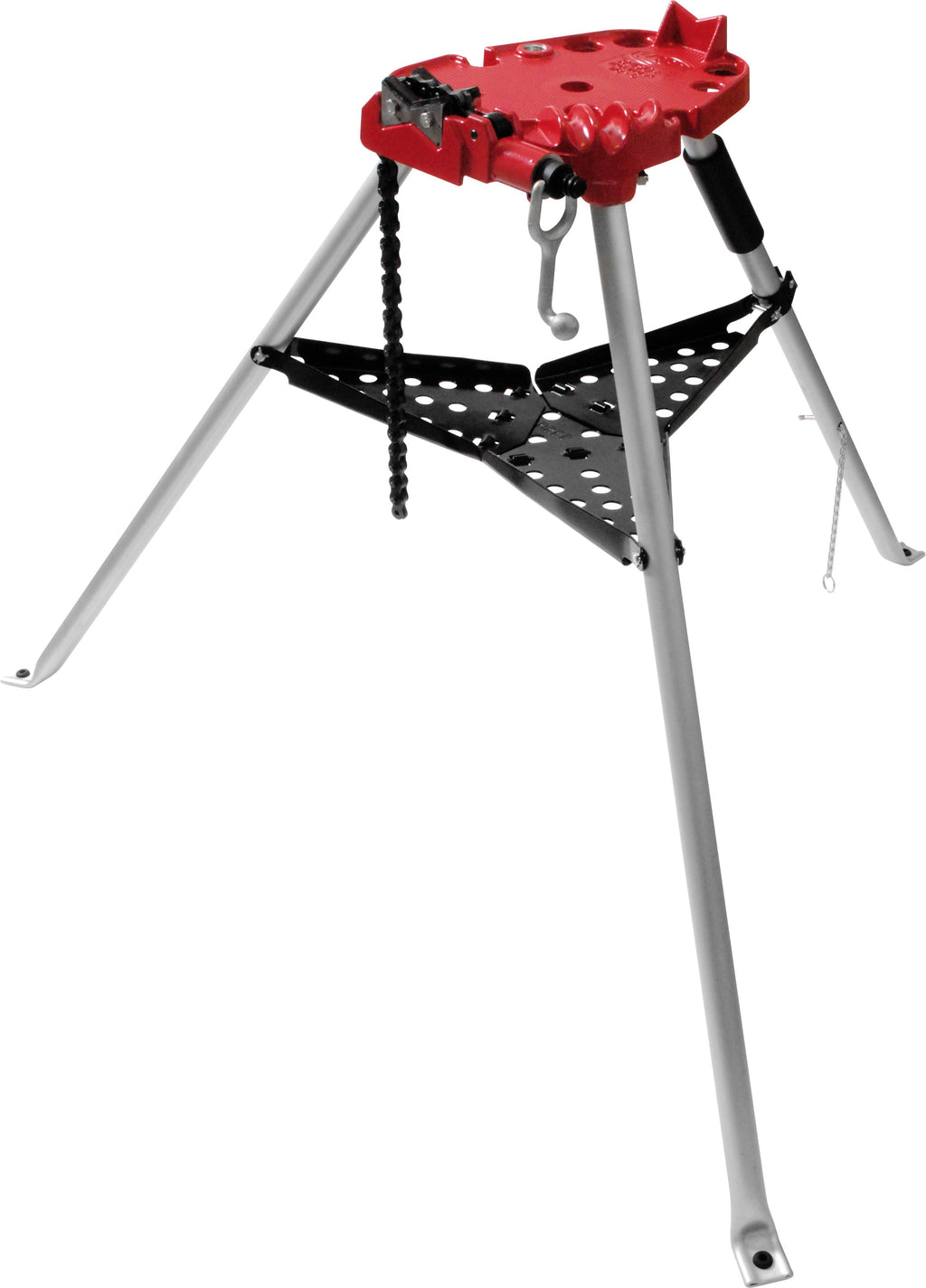

Reed Mfg R450PAL Chain Tripod Pipe Vise, 1/8" - 6", Aluminum Legs, Neoprene Coated Jaws

REED Tripod Pipe Vises are among the strongest pipe vises available. They are manufactured with heavy gauge steel, overlapping hinges, and the best adjustable tray clamp, not a set screw, to keep the lower tray assembly and entire portable workbench tight, even after many hours of use. The heavy-duty design permits use with pipe up to 6” diameter. Tripods fold into a compact shape, have a padded handle grip at the balance point, and boast the lightest weight for the easiest portability of all well-known tripod pipe vises.

All REED tripod pipe vises offer double-sided, patented “bowtie jaws” for 15% extra value versus purchase of a second jaw set. Reverse the jaws for an extra face and save the cost of buying a replacement set as soon. Neoprene jaws provide protection against damaging plastic pipe and soft metal pipe. Jaws are easily rotated from plastic pipe to metal pipe position to protect against damage and to maximize productivity.

Ask for REED/RIDGID® brand interchangeable parts list for RIDGID® brand 460 and 40.

  • Aluminum legs reduce tripod vise weight, making R450PAL a great choice for weight-critical field use.
  • At under 28 pounds, R450PAL is about 30% lighter than competitive models.
  • Patented, reversible double-sided bowtie jaws with neoprene side for plastic pipe and steel jaws on other side for metal pipe.

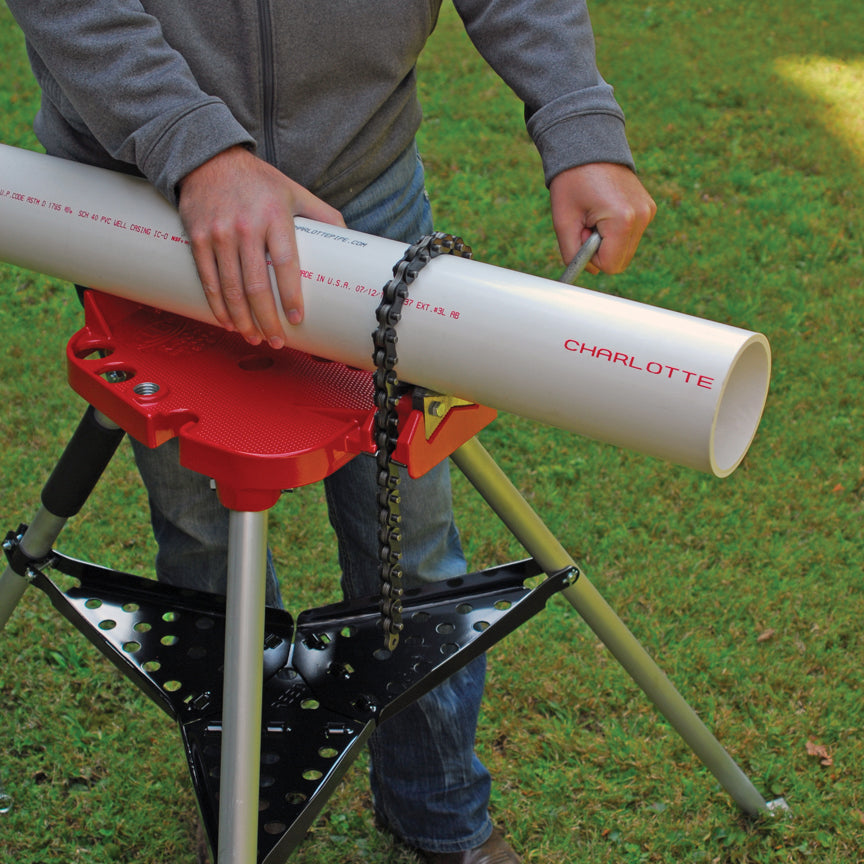

  • Chain vise style adjusts to odd-shaped work pieces.
  • Straight cranking handle.
  • Handle grip is positioned for handler to pick up and carry the folded tripod at the balance point.
  • Sides on folding tray keep tools and parts safe from falling or rolling off.
  • Pipe Capacity:  1/8" - 6"
  • Folded Length:  44"
  • Weight:  27.4 lbs


Parts Diagram
