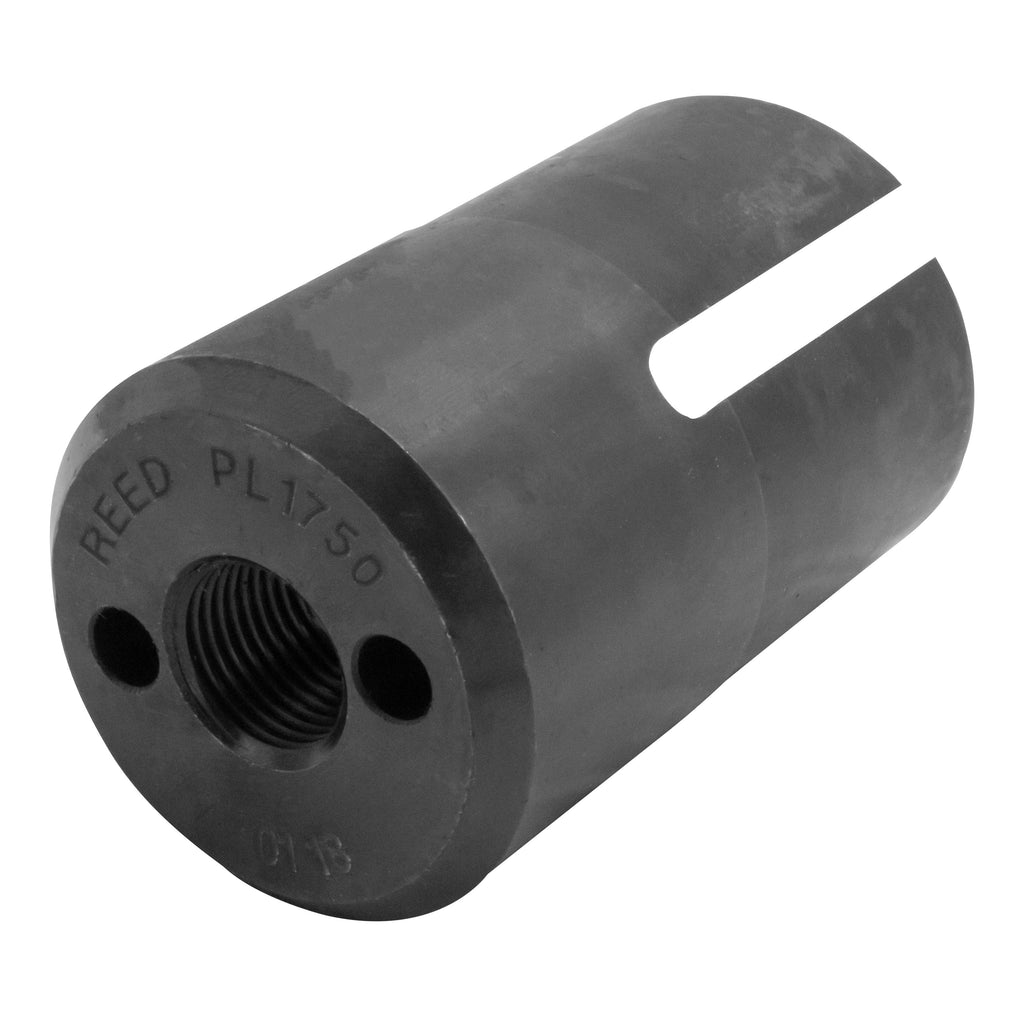

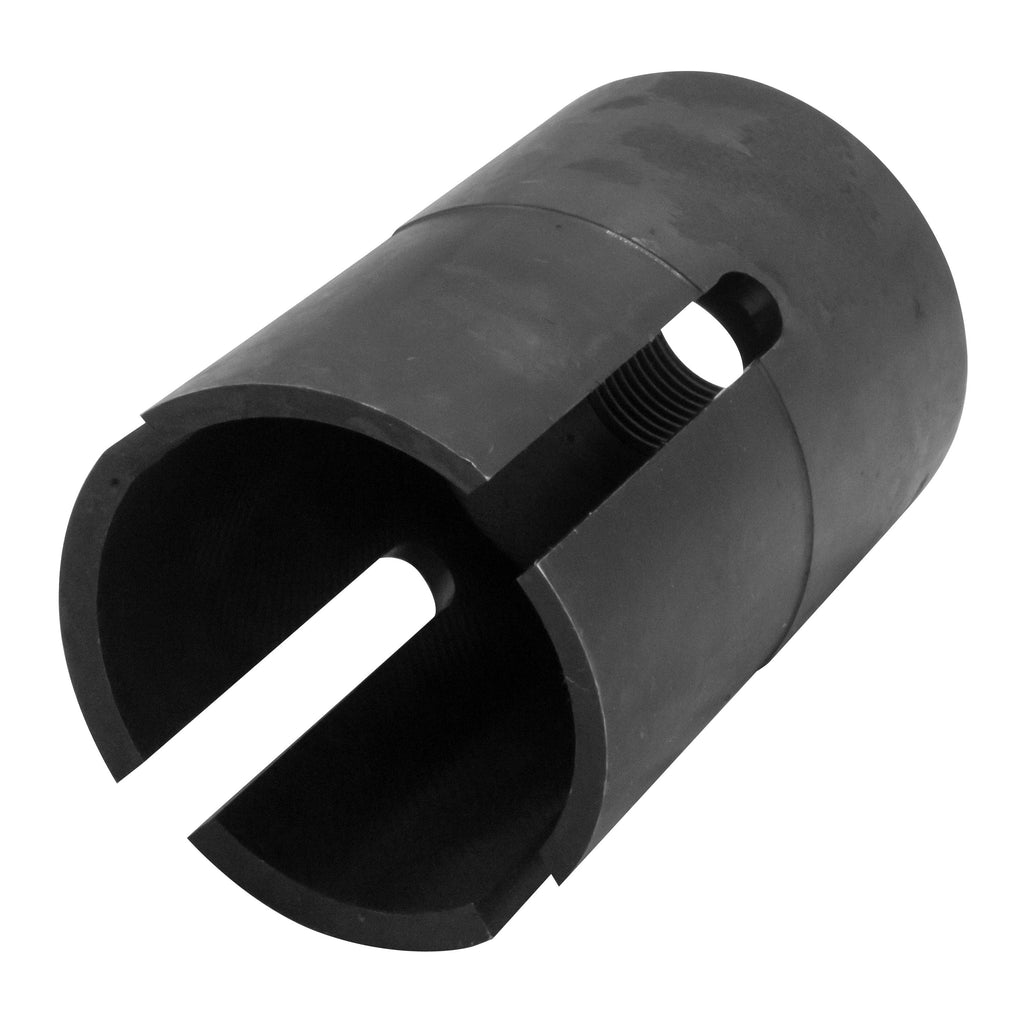

Reed Mfg PL1750 1-3/4" PVC/PE Shell Cutter for Drilling Machines, 2" NPT & AWWA

PVC/PE Shell Cutters are for use with REED’s DM1100, DM2100 and DMPVC series drilling machines.  Use them to cut through the PVC or PE pipe wall via the corporation stop and the service saddle. Now made from A2 tool steel and heat treated which maintains sharper cutting edges and extends the life of the shell cutter. They are capable of cutting PVC and up to 1-1/8” wall thickness on C900 PVC water pipe or high density PE (HDPE) pipe. They also fit Ford® and Mueller D® and PL-2 machines.

FEATURES

• Tool steel is heat treated for optimum toughness and wear resistance.
• Flute design offers easy cutting and constant coupon retention.
• Shell Size (in):  1-3/4
• Corp. Stop Size (in):  2" NPT & AWWA
• Cuts Max. Wall Thickness:  1-1/8"
