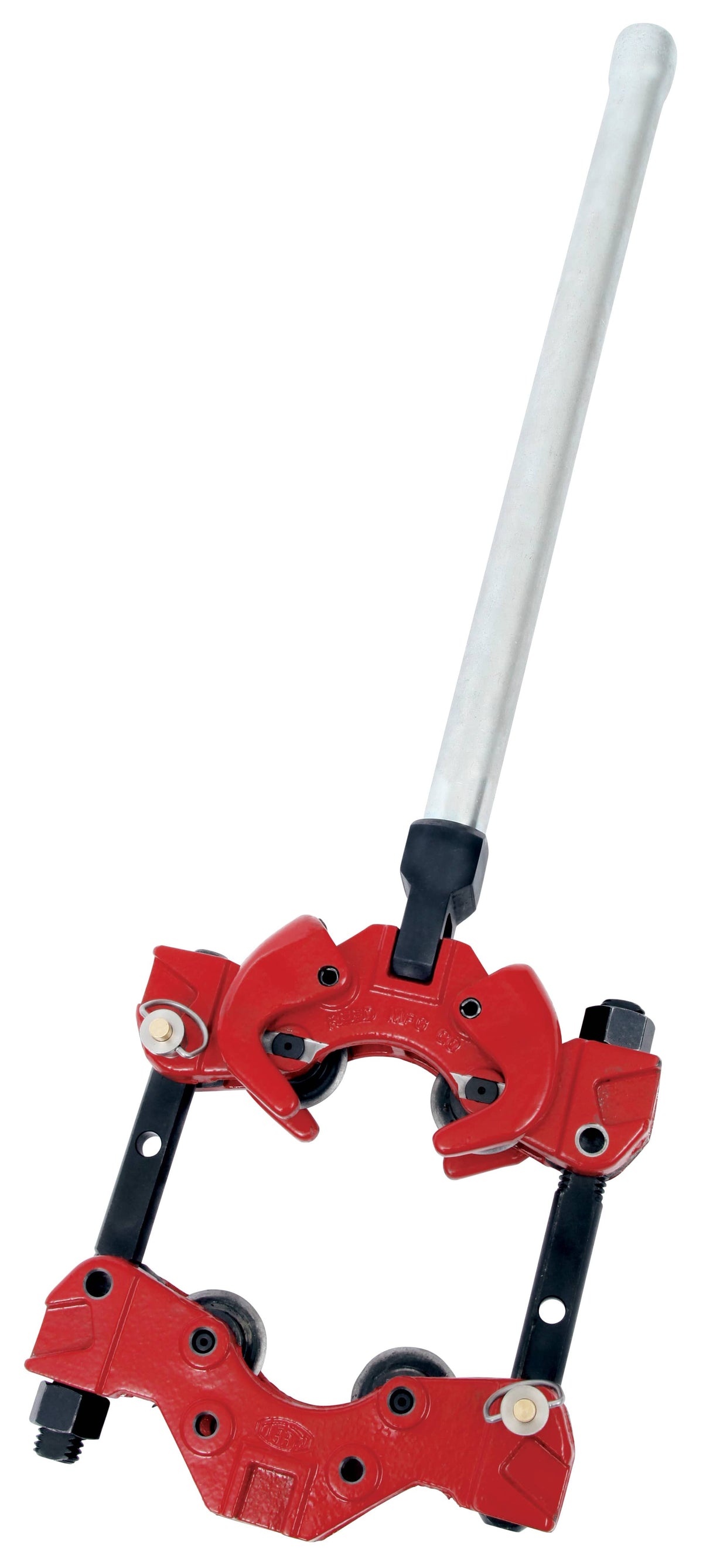

Reed Mfg LCRC4X Low Clearance Rotary Pipe Cutters, Steel/Stainless Steel Sch. 40 & 80, 2" - 4"

Cut pipe with minimal excavation using REED Low Clearance Rotary Cutters. The low-profile design minimizes ditch clearance requirements, making it possible to cut pipe in tight spaces where other cutters cannot reach. These manually operated, non-sparking tools are ideal for cold cutting applications and help improve jobsite safety by eliminating the sparks and high heat associated with many alternative cutting methods.

LCRC cutters safely produce square, clean pipe ends for easier fit-up and installation on steel, stainless steel, ductile iron, and cast iron pipe. A slip-on handle serves to both tighten and turn the cutter on the pipe for efficient operation in confined work areas. Whether working in a ditch, overhead, underwater, in pipe racks, or in other tight quarters, LCRC cutters provide dependable cutting performance. With good leverage from the long handle, pipe snaps off squarely, often before the cutter wheels break completely through the pipe. Heavy-duty ductile iron frame construction and quailty REED cutter wheels deliver the durability and long service life that operators expect.

• Equipped with HX4 cutter wheels for cutting through demanding 2 to 4 inch Schedule 80 steel and stainless steel pipe.
• Requires only 4 inch (102 mm) clearance, allowing cuts in tight spaces where other cutters cannot reach.
• This non-sparking cutter delivers the benefits of cold cutting without the sparks, high heat, and ignition concerns associated with alternate cutting methods.
• Features a slip-on handle used to both tighten the cutter and rotate it around the pipe in a single direction.
• Designed with heavy-duty ductile iron frames for strength and durability.
• Adapt the cutter for other pipe types simply by changing the cutter wheels.

• Pipe Capacity (in-nom):  2 - 4
• Cutter Wheel:  HX4
• Application:  Steel/Stainless Steel Sch. 40 & 80
• Length:  19"
• Weight:  12.3 lbs
