Reed Mfg HPC4+ Guillotine Pipe Cutter for PE Pipe, 1-1/2" - 4"

Save 5%
Original price $957.43
Current price $909.56
SKU 04605
Currently 3 in stock.

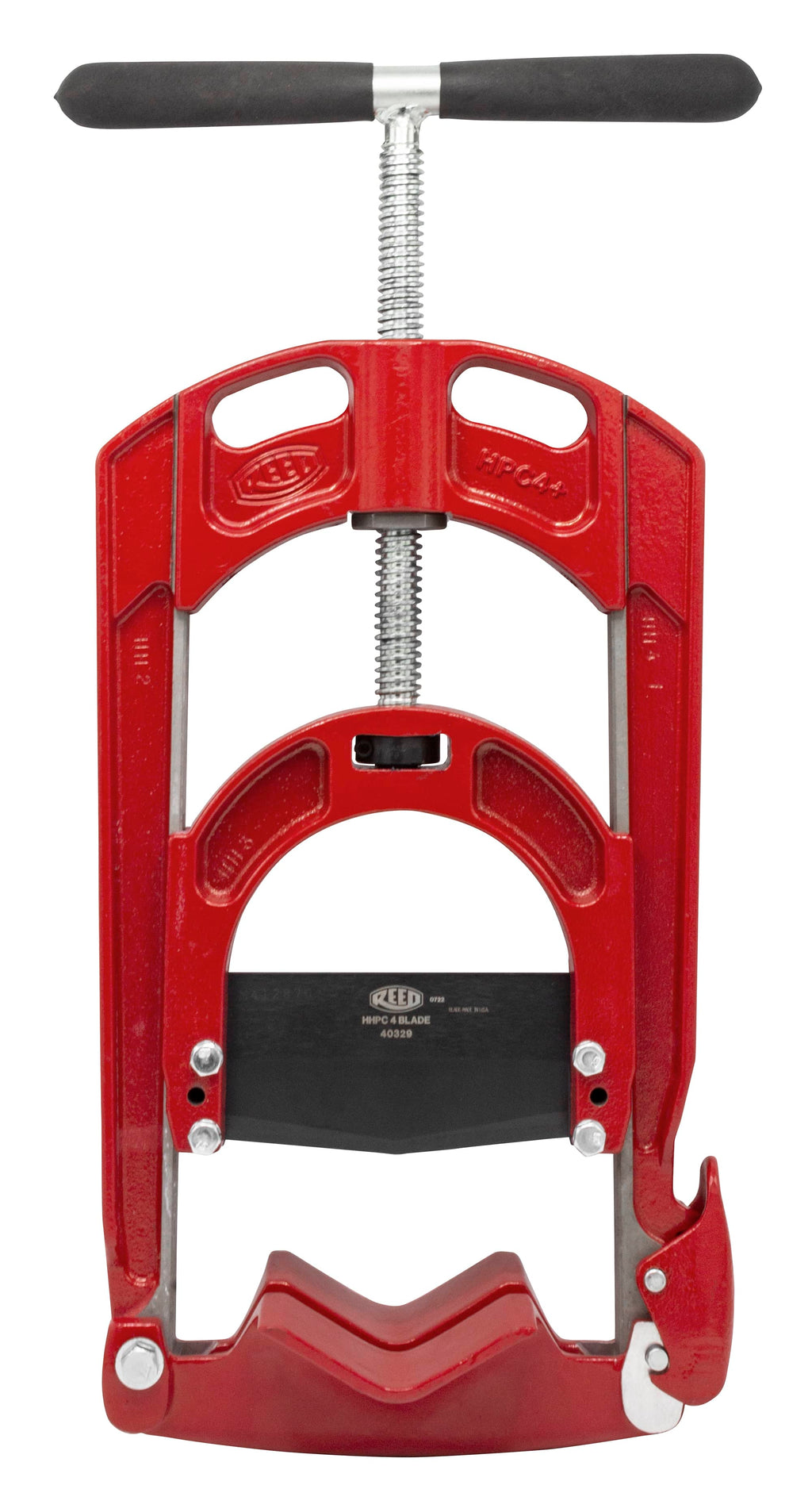

Reed Mfg HPC4+ Guillotine Pipe Cutter for PE Pipe, 1-1/2" - 4"

Robust Guillotine Pipe Cutters are designed to cut PE pipe from SDR15.5 to SDR9 within 1/8” (3 mm) of square on medium and high-density pipe. The accurate cuts from REED Guillotine Cutters mean no facing is needed for electrofusion and only minimal facing for butt fusion joints. Durable, non-stick coated blade makes many square cuts with no chips to clog valves and small openings. Slight taper on blade allows an easy start to the cut, and holds form for a nice, straight cut. Blades are easy to sharpen or replace.


  • Temperature impacts pipe density. Cold temperatures (below freezing) can significantly shorten blade life.
  • Blade is very sharp. Take care when reaching in that area.
  • For operator and blade safety, always transport the cutter with the blade fully seated in the base of the cutter. Use the blade guard if available since it protects the blade and the operator.
  • Reed strongly recommends use of the PEGR7 Static Grounding Device (#04621) with Guillotine Cutters. Use a grounding device as a precaution against static build-up. Dissipate the charge and minimize the possibility of ignition.
  • HPCs cut PE only and will not cut PVC or PP (polypropylene) pipe, such as Aquatherm®.

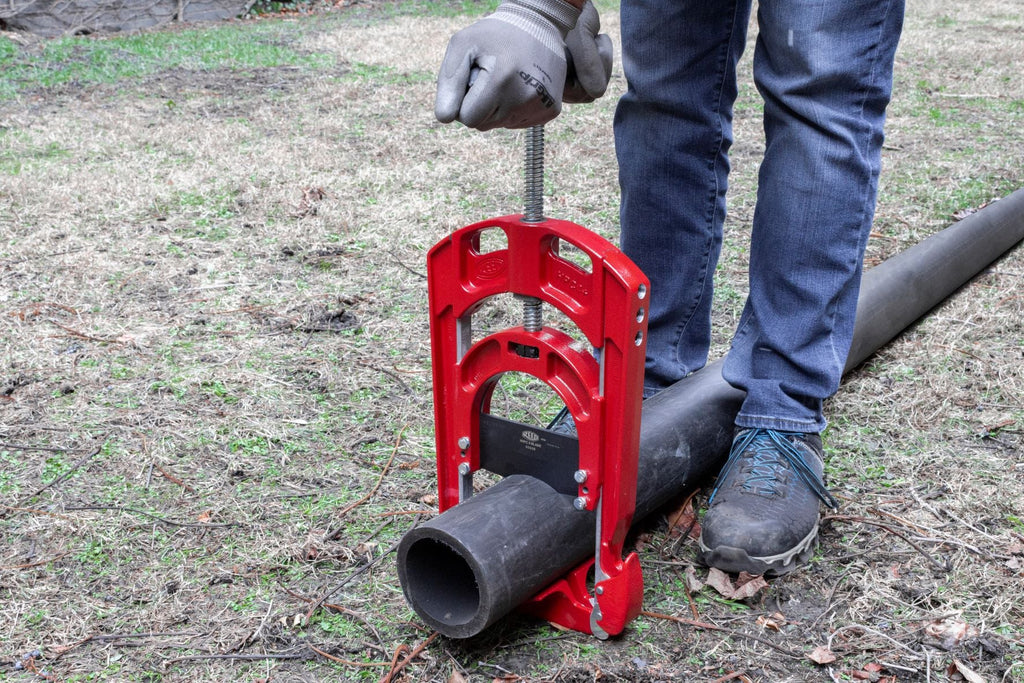

  • Manual, guillotine style cutter slices smoothly and safely through PE.
  • All aluminum construction means greater rigidity and a lighter tool with 30%+ weight reduction versus prior HPC4 model.
  • Greater capacity fits from 1 1/2 inch IPS through 4 inch DIPS.
  • Aluminum rails and crosshead have a hard anodized finish to reduce wear on sliding surfaces.
  • Cuts clean with no chips to clog valves and apertures.
  • Superior cuts from its USA made blade.
  • Capacity:  1 1/2 - 4 DIPS & IPS
  • Weight:  11 lbs


Parts Diagram


HPC4+ Technical Specs
