Reed Mfg DM3MECH Mechanical Hot Tapping Machine Complete Kit for NPT

Save 5%
Original price $924.30
Current price $878.08
SKU 08350
Currently 17 in stock.

Reed Mfg DM3MECH Mechanical Hot Tapping Machine Complete Kit for NPT

All REED DM3MECH models make branch connections through 3/4” to 4” valves on any appropriately sized mainline for most piping materials. With the right hole saw, these machines connect to chilled and hot water systems up to 300 psi and steam systems up to 15 psi without a shutdown of service. This process is known as hot tapping.  The machine works for mild steel, galvanized steel, stainless steel, copper, brass and aluminum pipe.  Mechanical Hot Tapping Machine drills through the pipe wall via fittings inserted into the service saddle or thread-o-let. The machine eliminates the need to shut down, drain, cut, refit and refill piping systems.

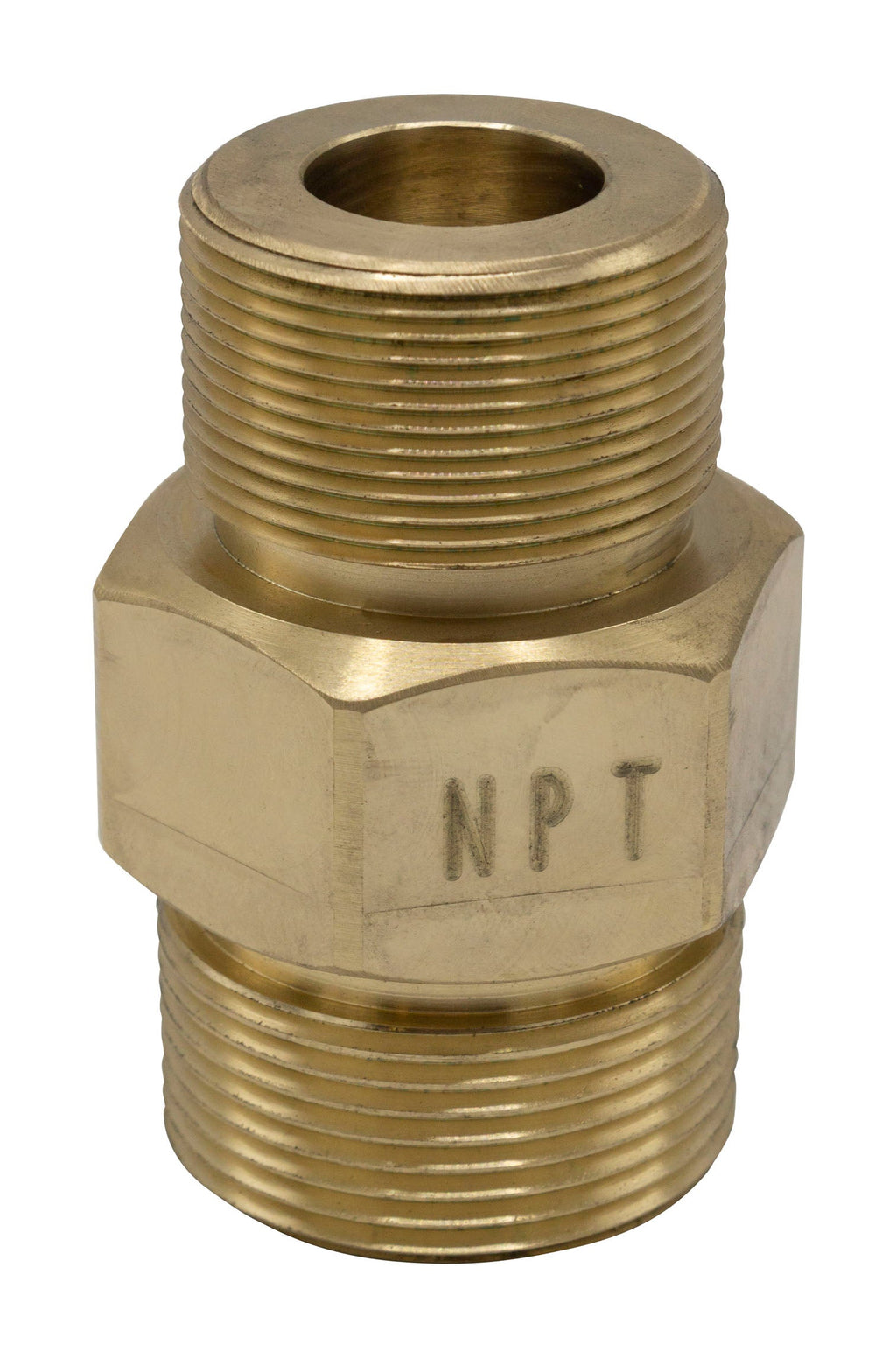

DM3MECH consists of a main body assembly that fits into a 1 ¼” NPT fitting (not provided), along with ½” diameter shafts, hole saws, arbor, coupon retaining drill bit and more. All DM3MECH Mechanical Hot Tapping Machine models provide the tapping machine only, with valves, saddles, fittings and piping supplied by the operator.

What is "Hot Tapping"?
Hot Tapping makes it possible to safely tie into a pressurized system, by drilling into the pipe, while it is still in operation. This is done on a main line to attach a branch connection to a pipe to create a new supply line. The term hot tapping refers to fact the pipe is being drilled under pressure. The operation does not produce threads in the pipe; it is strictly a drilling operation.

NOTES

  • Hole saws are to be used per hole saw manufacturer's recommended RPM with a 3/8" or 1/2” drill motor.
  • Not recommended for ammonia, gas or other caustic systems.
  • This DM3MECH tool is not recommended for use on plastic pipe.



Features

  • Hot tap tool for piping, fittings and valves with NPT threads.
  • Hot tap steel, galvanized, copper, brass or aluminum pipe for installing branch connections from 3/4” to 4” valves.
  • Pressure rated 300 psi for ambient temperatures or 15 psi for steam systems.
  • Eliminates the need to shut down, drain, cut, refit and refill piping systems.
  • Watertight seal to allow drilling under pressure.
  • Commercial and industrial applications.

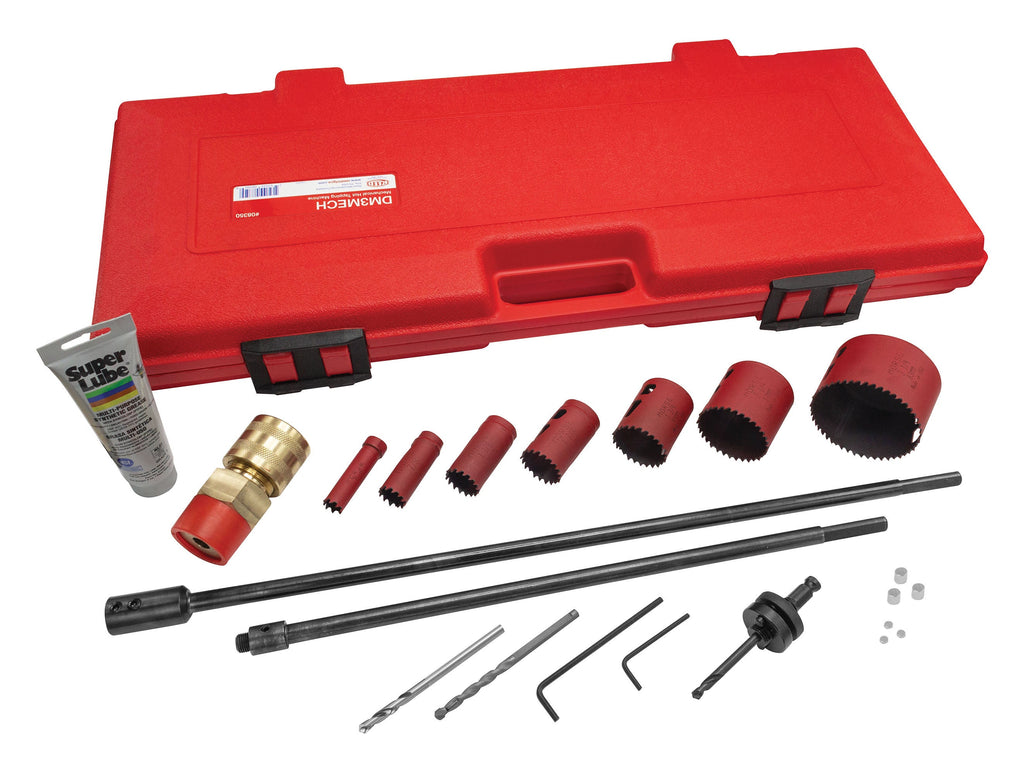

  • Complete kit includes main body assembly, shafts, hole saw assortment, arbor and accessories in a storage case.
  • REED Mechanical Hot Tapping Machine is the tapping machine only with valves, saddles, fittings and piping supplied by the operator.



Contents

  • 08350 DM3MECH HOT TAPPING OPERATOR'S MANUAL
  • 08358 COUPON RETAINER 3/8 DIA MAGNET-3 PK
  • 08359 COUPON RETAINER 1/4 DIA MAGNET-3 PK
  • 40149 5/32 ALLEN WRENCH-LONG ARM HEX
  • 40296 HEX WRENCH FOR DMHSA/PPR
  • 04561 DRILL BIT, 1/4" X 4-5/16 LENGTH
  • 99129 DRILL BIT, ¼” COUPON RETAINING
  • 43514 ARBOR
  • 93514 24" SHAFT, 1/2" DIA. W/HOLDER
  • 93515 18" SHAFT, 1/2" DIA. W/SLEEVE
  • 93526 TOOLBOX, PLASTIC
  • 93527 MAIN BODY ASSEMBLY
  • 43500 5/8" DIA. HOLE SAW
  • 43501 7/8" DIA. HOLE SAW
  • 43502 1 1/8" DIA. HOLE SAW
  • 43503 1 3/8" DIA. HOLE SAW
  • 43504 1 3/4" DIA. HOLE SAW
  • 43505 2 1/4" DIA. HOLE SAW
  • 43506 3 1/4" DIA. HOLE SAW
  • 43512 H1 GREASE (3 oz. tube)
