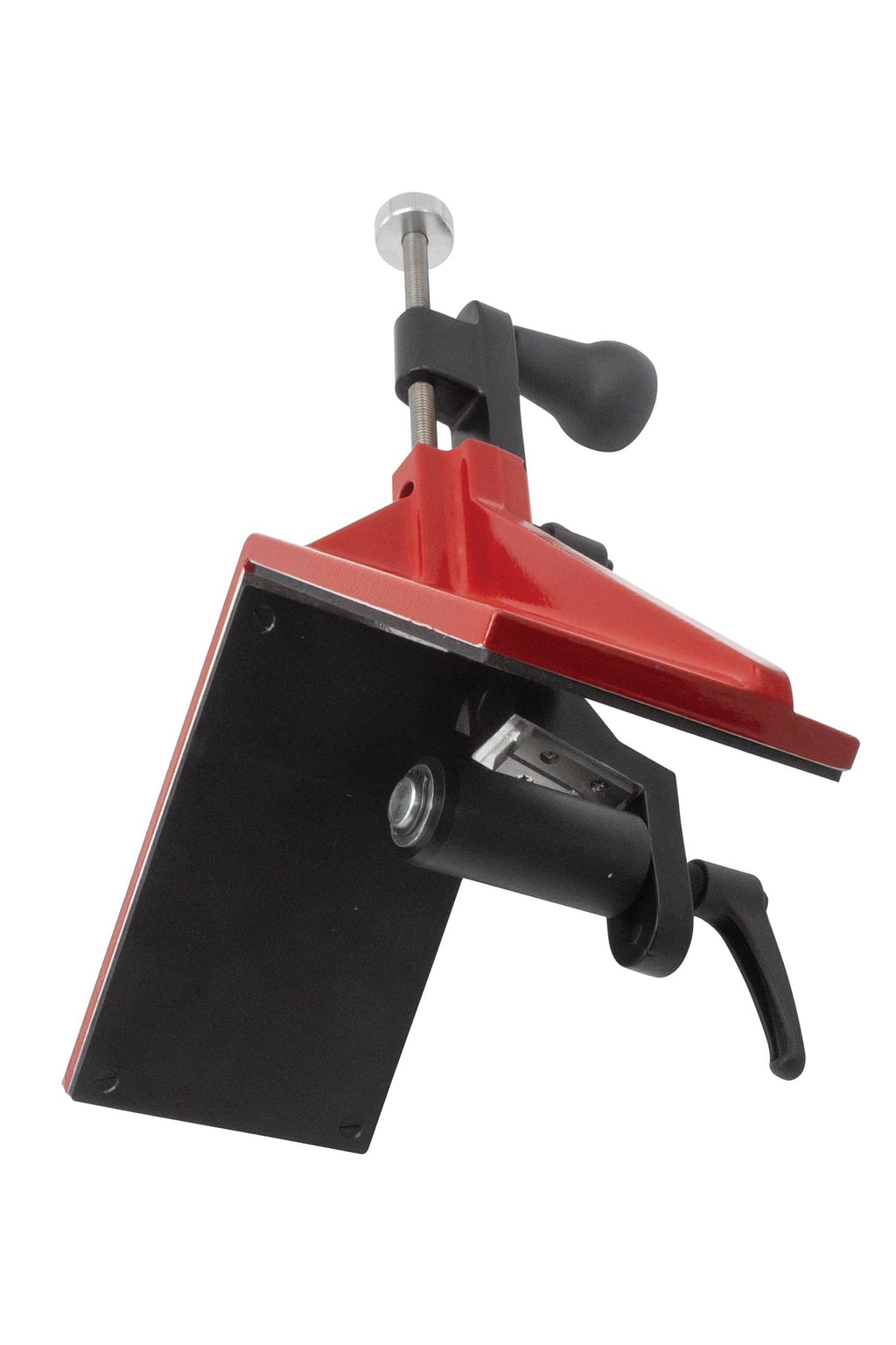

Reed Mfg BT2 Plastic Pipe Beveler, 1-1/2" - 12"

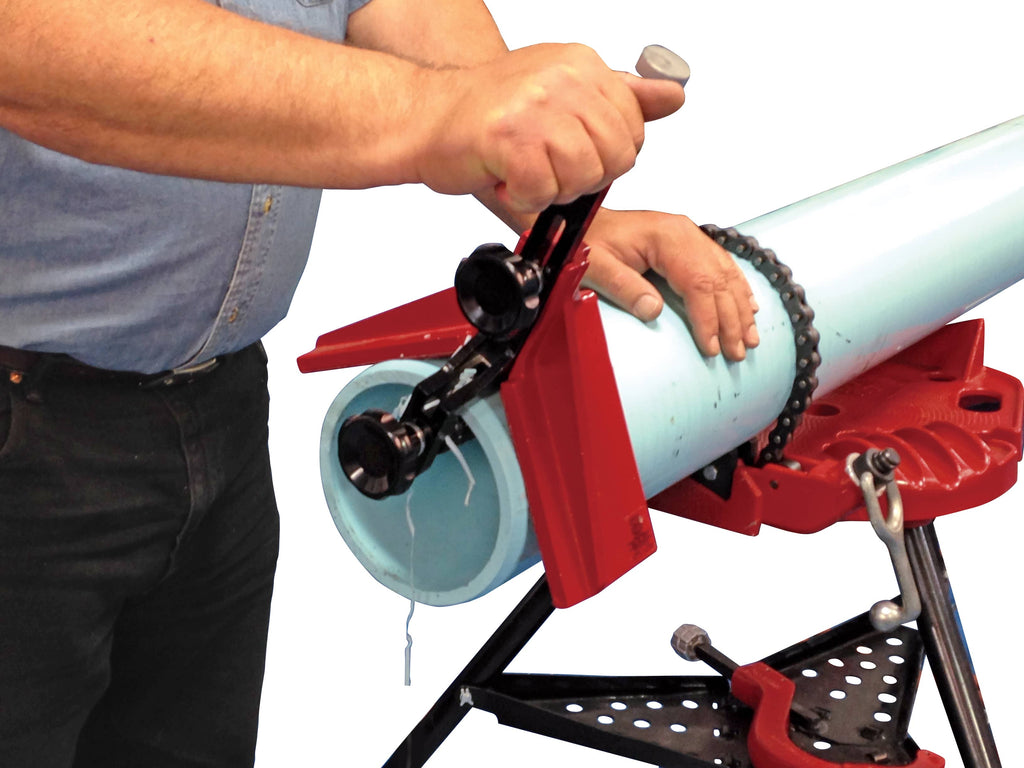

With a strong aluminum alloy frame, effective roller locking, and good tool life, a Pipe Beveler produces a smooth 15° bevel on all types of plastic pipe, including gasketed PVC and C900 PVC in about one minute. Depending on wall thickness, the bevel can be up to 1 1/2” long. Beveler is easily adjusted for different pipe sizes and thicknesses, with no part changes. Bevel blade can be sharpened or replaced.

NOTE: If pipe is not stationary, a REED pipe vise is recommended.

• Pipe Beveler only needs a few turns around the pipe to make the 15° smooth bevel.
• Strong, reinforced aluminum frame for durability.
• Adjusts to bevel multiple sizes with one tool.


Parts Diagram

Manual
