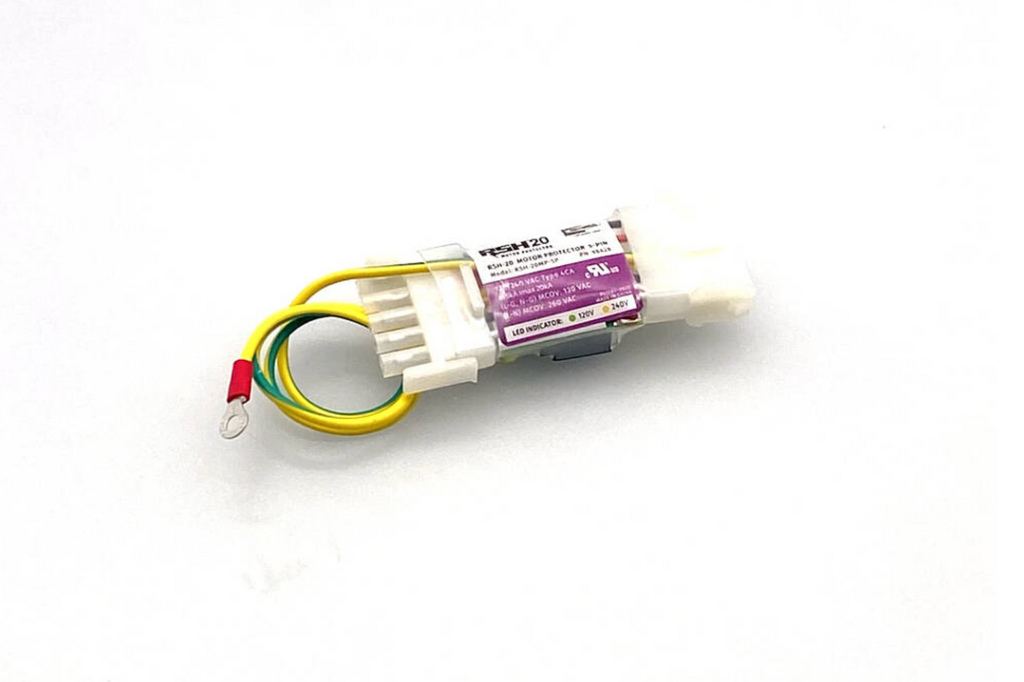

RectorSeal 96428 RSH-20 Motor Surge Protector, 5-Pin

RSH-20MP-5P Surge Protective Device (SPD) for Single-Phase 120/240 VAC Indoor 5-Pin Motors

Features

• UL Recognized
• Thermally Fused MOVs
• 5 Year Limited Product Warranty
• Plug-n-Play for Ease of Installation
• Diagnostic LED indicates Protection


Applications:

Protects single phase 120/240V 5-Pin ECM indoor blower motors from transient over-voltage and natural-cause surges.

Recommended for

• For single phase 120/240 VAC ECM 5-Pin indoor motors

Specifications

• Operating Voltage – 120/240 VAC
• Max discharge current per phase – 20kA (1 hit
  survivability)
• Nominal discharge current – 5kA (15 hits
  survivability)

FEATURES

• UL Recognized
• Thermally Fused MOV Technology for safety & performance
• Limited 5 year warranty
• 3 modes of protection: L-G, N-G, L-N
• Plug-n-Play for ease of installation
• Diagnostic LED indicates protection
