Description

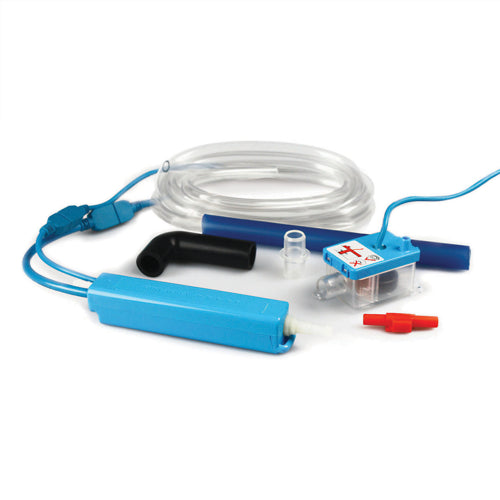

Aspen Pumps 83812 Mini Aqua Silent Plus Condensate Pump 208-230V
Aqua Series pumps are designed with separate pump and reservoir. The 2 elements are connected together with a length of 1/4" id vinyl tube and a communication cable, both of which are usually around 6 feet long.
Pump mounts outside the evaporator hidden inside horizontal lineset cover. Reservoir mounts inside of evaporator, below the drain pan. Both pump and reservoir can also mount inside of evaporator, below the drain pan.
Features
- Ultra-slim profile and Integral hanging loop and separate reservoir facilitates attachment in vertical applications
- Self Priming
- Modular terminals for fast connection
- Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
- 3A NO/NC dry contacts rated @ 5A inductive at 230V AC
SPECIFICATIONS:
- Pump Length: 6.5''
- Pump Width: 1.125''
- Pump Height: 1.125''
- Capacity: 2.9 GPH @ 0' Head / 1.2 GPH @ 33' Head
- Max BTUs: 49,500
- Max Head in Fee:t 33
- Max Temperature: 104°F
- Max Suction Lift: 5'
- Sound Level: 19dB(A)
- Dry Contact Rating: 3A NC
- Voltage: 208-230v
- Amperes: .1 MAX
- Watts: 16
- Remote Reservoir: Y
- Plenum Rated: N
- Cable Length: 6'
