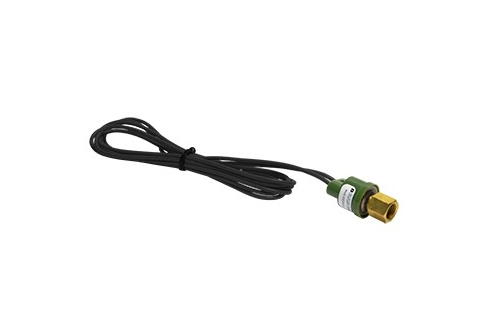

Ranco RHS-600475 High Pressure Switch Open 475-600 PSI, Automatic Reset
Save 58%
Original price
$33.28
Current price
$13.99
SKU RHS-600475
Ranco RHS-600475 High Pressure Switch Open 475-600 PSI, Automatic Reset
Ranco® Pressure Switches are designed to sense and act upon reaching a pre-set pressure threshold. Various pressure switch models are available for low pressure or high pressure cutouts, as well as operate control cycling.
Specifications:
| Application: | High Pressure |
| Reset: | Automatic |
| Open (Cut Out): | 600 PSI |
| Open (Cut In): | 475 PSI |
| Pressure Range: | 0-50 bar, 0-735 psig |
| Burst Pressure: | 345 bar, 5000 psig |
| Terminal Type: | Normally Open (Low Pressure Cutout) | Normally Closed (High Pressure Cutout) |
| Fluid Temperature: | -55°C to 135°C / -65° to 275°F |
| Ambient Temperature: | -30°C to 70°C / -40° to 185°F |
| Electrical Rating: | 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA |
| Pressure Fittings: | 1/4” SAE FF |
| Electrical Connection: | IP65-rated 1m wire lead cables |
| Lifetime (Cycles): | 100,000 |
Cross Reference:
| MARS: | 43335 |
| JOHNSON CONTROLS: | P100CP-165C |
| SUPCO: | SHP600475 |
