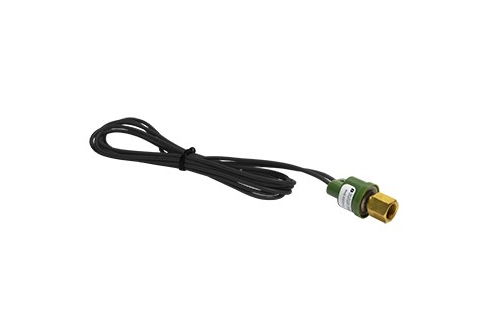

Ranco RHS-300400 Fan Cycling Pressure Switch Open 300-400 PSI, Automatic Reset
Ranco® Pressure Switches are designed to sense and act upon reaching a pre-set pressure threshold. Various pressure switch models are available for low pressure or high pressure cutouts, as well as operate control cycling.
Specifications:
| Application |
Fan Cycling |
| Reset |
Automatic |
| Open (Cut Out) |
300 PSI |
| Open (Cut In) |
400 PSI |
| Pressure Range |
0-50 bar, 0-735 psig |
| Burst Pressure |
345 bar, 5000 psig |
| Terminal Type |
Normally Open (Low Pressure Cutout) | Normally Closed (High Pressure Cutout) |
| Fluid Temperature |
-55°C to 135°C / -65° to 275°F |
| Ambient Temperature |
-30°C to 70°C / -40° to 185°F |
| Electrical Rating |
120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA |
| Pressure Fittings |
1/4” SAE FF |
| Electrical Connection |
IP65-rated 1m wire lead cables |
| Lifetime (Cycles) |
100,000 |
Cross Reference:
| MARS |
43307 |
| JOHNSON CONTROLS |
P100AP-332C |
| SUPCO |
SFC300400 |
