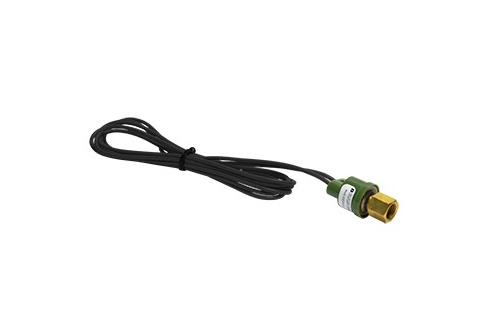

Ranco RHS-210275 Fan Cycling Pressure Switch Open 210-275 PSI, Automatic Reset
Ranco® Pressure Switches are designed to sense and act upon reaching a pre-set pressure threshold. Various pressure switch models are available for low pressure or high pressure cutouts, as well as operate control cycling.
Specifications:
| Application: |
Fan Cycling |
| Reset: |
Automatic |
| Open (Cut Out): |
210 PSI |
| Open (Cut In): |
275 PSI |
| Pressure Range: |
0-50 bar, 0-735 psig |
| Burst Pressure: |
345 bar, 5000 psig |
| Terminal Type: |
Normally Open (Low Pressure Cutout) | Normally Closed (High Pressure Cutout) |
| Fluid Temperature: |
-55°C to 135°C / -65° to 275°F |
| Ambient Temperature: |
-30°C to 70°C / -40° to 185°F |
| Electrical Rating: |
120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA |
| Pressure Fittings: |
1/4” SAE FF |
| Electrical Connection: |
IP65-rated 1m wire lead cables |
| Lifetime (Cycles): |
100,000 |
Cross Reference:
| MARS: |
43306 |
| JOHNSON CONTROLS: |
P100AP-354C |
| SUPCO: |
SFC210275 |
