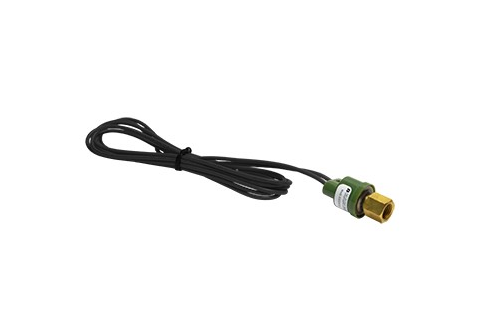

Ranco RHS-0520 Low Pressure Switch Open 5-20PSI, Automatic Reset

Save 60%
Original price $33.28
Current price $13.35
SKU RHS-0520
Currently 43 in stock.

Ranco RHS-0520 Low Pressure Switch Open 5-20PSI, Automatic Reset

Ranco® Pressure Switches are designed to sense and act upon reaching a pre-set pressure threshold. Various pressure switch models are available for low pressure or high pressure cutouts, as well as operate control cycling.

Specifications:

  • Application: Low Pressure
  • Reset: Automatic
  • Open (Cut Out): 5 PSI
  • Open (Cut In): 20 PSI
  • Pressure Range: 0-50 bar, 0-735 psig
  • Burst Pressure: 345 bar, 5000 psig
  • Terminal Type: Normally Open (Low Pressure Cutout) | Normally Closed (High Pressure Cutout)
  • Fluid Temperature: -55°C to 135°C / -65° to 275°F
  • Ambient Temperature: -30°C to 70°C / -40° to 185°F
  • Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA
  • Pressure Fittings: 1/4” SAE FF
  • Electrical Connection: IP65-rated 1m wire lead cables
  • Lifetime (Cycles): 100,000


Cross Reference

MARS: 43341
JOHNSON CONTROLS: JP100AC-1C
SUPCO: SLP0520
