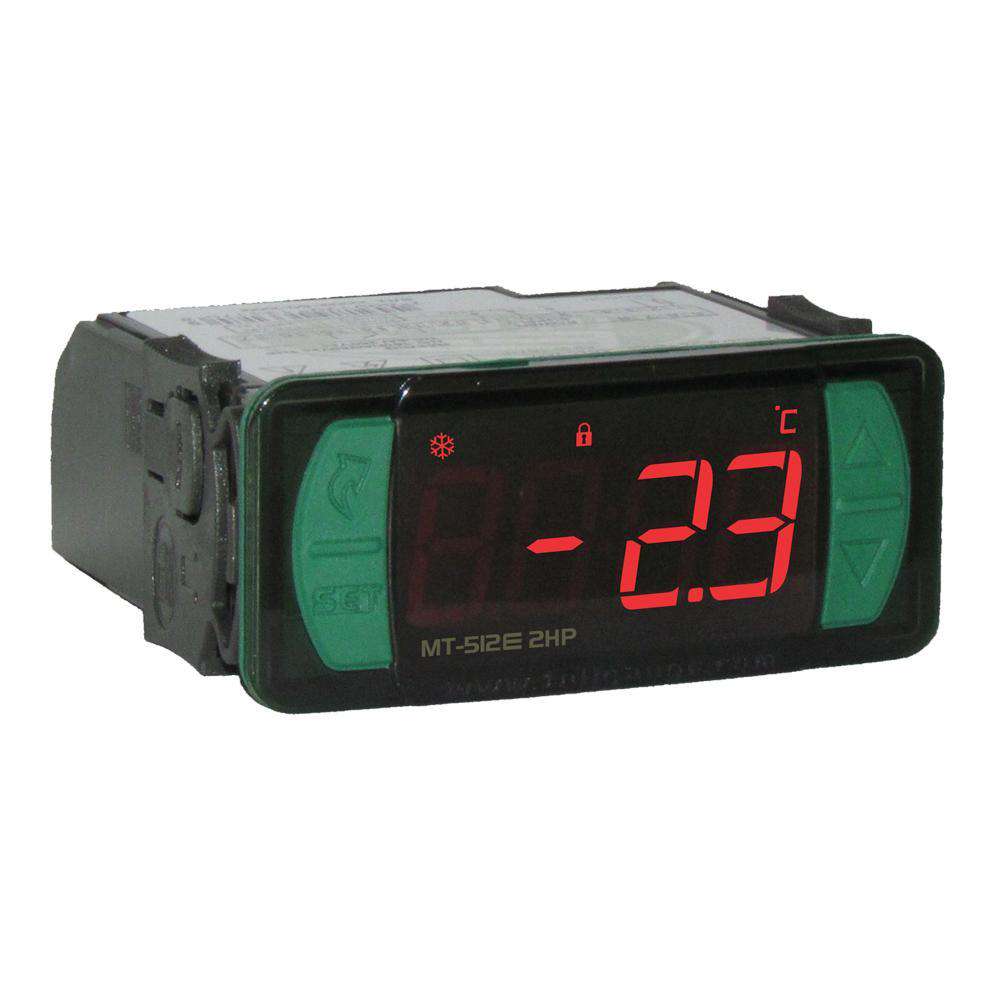

Ranco Full Gauge MT-512E 2HP/13 115/230V Digital Controller for Medium/High Temp
Ranco Full Gauge MT-512E 2HP/13 115/230V Digital Controller for Medium/High Temp
The Ranco® powered by Full Gauge MT-512E Series Digital Controllers feature a single relay output combined with a cyclical timer for system defrosting. A manual defrost can also be done through either controller or via a manual shutdown of the refrigeration system. Both models feature a configurable digital filter which mimics an increase of mass in the environment sensor, thus increasing its response time, that is, the sensor response becomes slower. In addition to those features, the MT-512E 2HP has tamperproof features preventing unauthorized users from changing settings. A control shutdown feature deactivates the output terminals turning the instrument into a digital temperature indicator. Both models have a serial communication port to connect to the Sitrad® software.
Features and Benefits
MT-512E 2HP and MT-512E Log
- One Controller to stock for both 115/230V applications
- Heavy-duty 2HP rated relay
- Temperature sensor included - no need to purchase separately
- Versatile for both cooling and heating applications
- Prevents tampering in public location ie grocery stores
Applications
- Walk-in coolers or freezers
- Medium temperature displays
- Fan cycling control
- Food warming equipment
- Heated floors
Specifications
Power Supply: | 115 or 230V AC, 50/60HzLX |
Control Temperature: | -58 to 221F (-50 to 105C) |
Operating Temperature: | 32 to 122F (0 to 50C) |
Operation Humidity: | 10 to 90% RH (without condensation) |
Maximum Load Current: | 16 A for resistive-type loads and 12 A for inductive-type loads |
Maximum Load Power: | 2HP |
Protection Level: | IP 65 (frontal) |
Dimensions: | 76 x 34 x 77 mm (WxHxD) |
Cross Reference
Carel: |
IR33S0LR0H, PJEZS0P00H, PJEZS0P10H, PJEZSNH0E0, PZD*S*P0*1 |
Danfoss: | EKA100, EKA101, EKC100, EKC102, ERC211 |
Dixel: | UNIVERSAL-R(tC1), UNIVERSAL-R(tC2), UNIVERSAL-R(tC7), XR10CX, XR20CX |
Eliwell Controls: | IC901, IC902, ICPLUS902, ID961, ID961LX |
