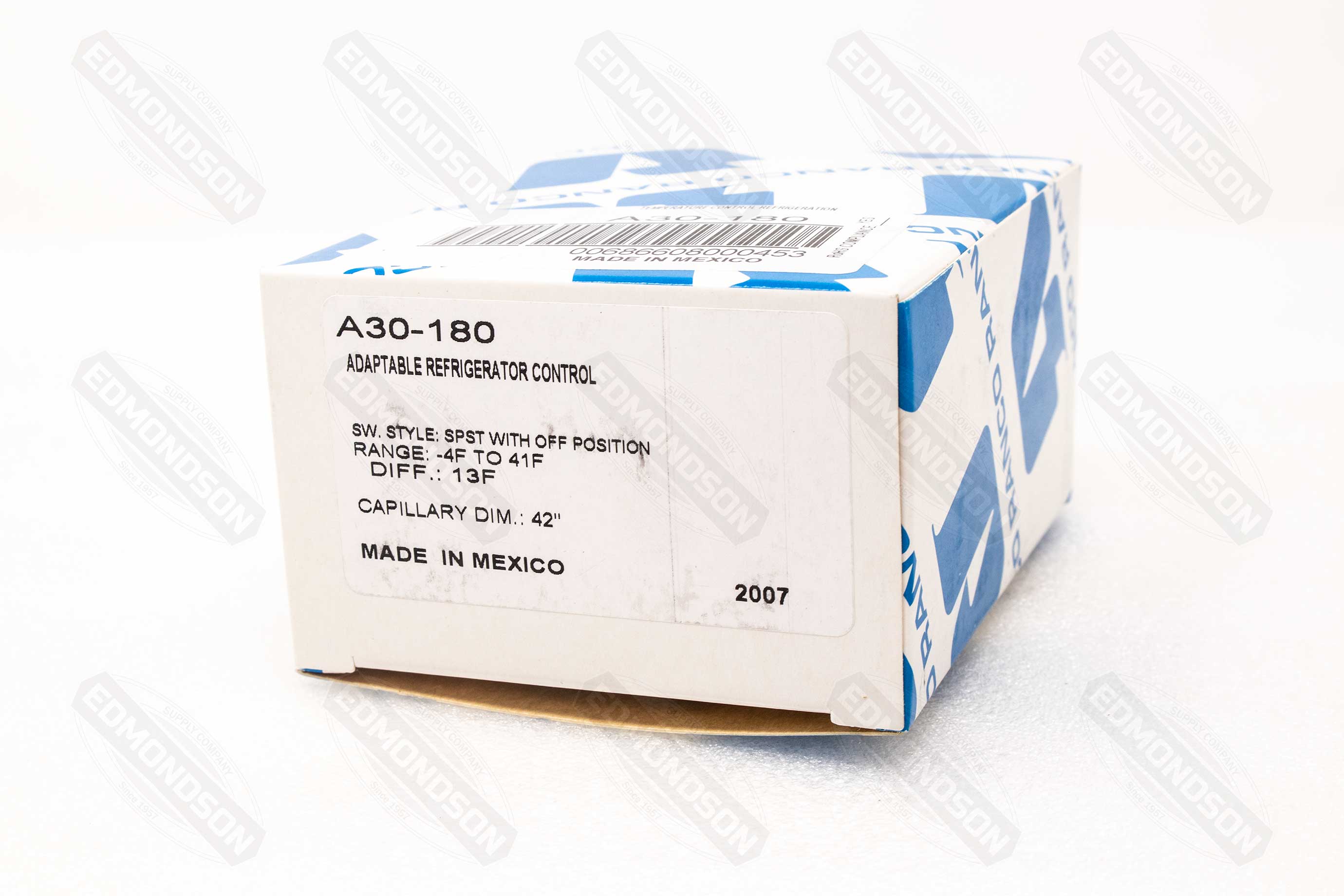

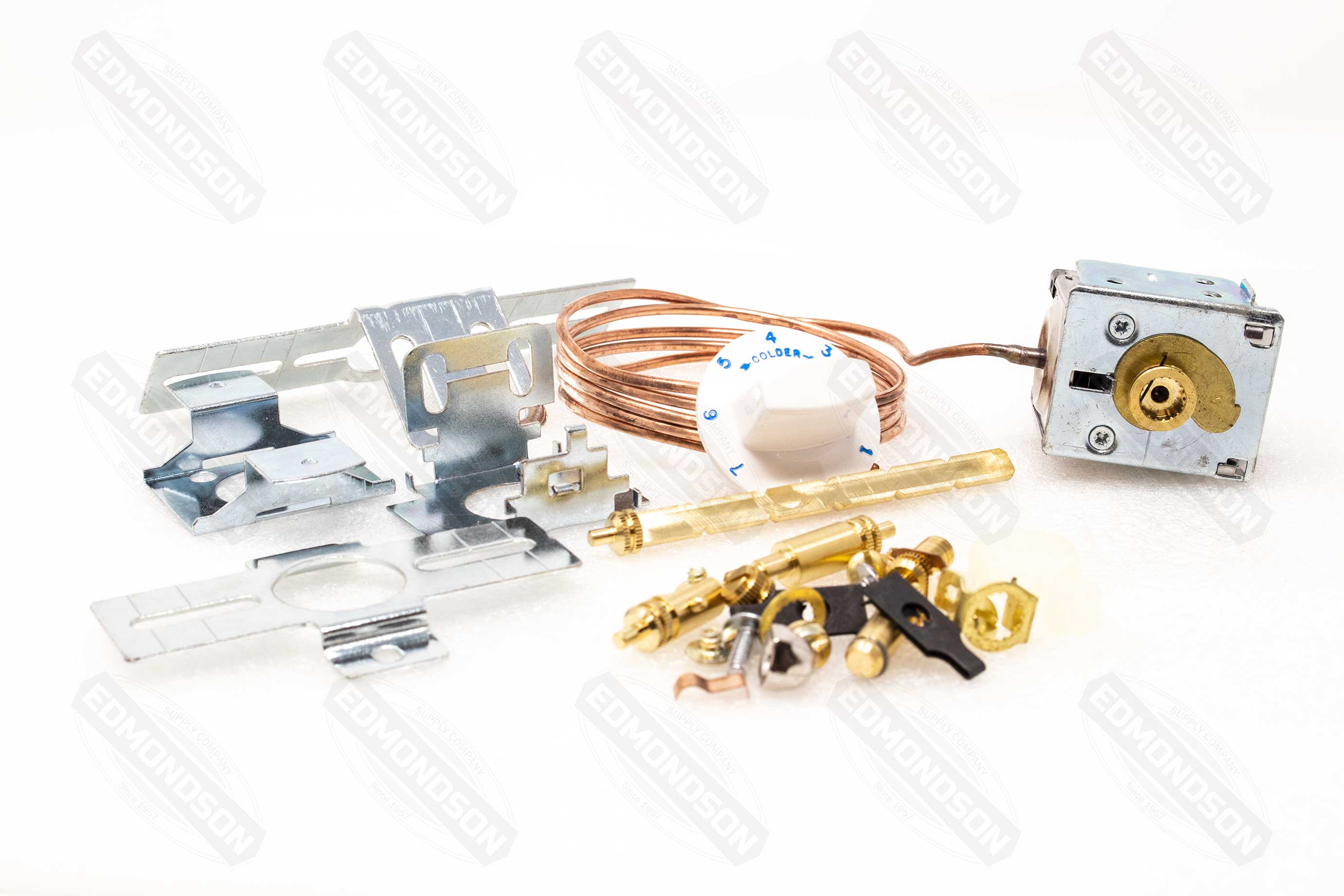

Ranco A30-180 Adaptable Constant Differential Refrigerator & Ice Machine Control
$75.99
SKU A30-180
Ranco A30-180 Adaptable Constant Differential Refrigerator & Ice Machine Control
The Ranco® A22, A30 and 9530 Series Constant Differential Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.
Features and Benefits
- Laser-welded stainless steel bellows
- Fixed or adjustable temperature settings
- High-amperage contacts
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
- Constant On or Off positions available
- Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
- Standard 1/4” quick-connect terminals with optional screw terminals
Specifications
| Series Application: | A22/A30 Series Adaptable Constant Differential Control |
| Switch: | SPST |
| Capillary Length: | 42" |
| Cold On: | 9°F |
| Cold Off: | -4°F |
| Differential: | 13°F |
| Normal Off: | 9°F |
| Normal On: | 22°F |
| Warm On: | 38°F |
| Off Position: | Yes |
Cross Reference
|
Danfoss: |
077Z7012 |
| Gemline: | GA30180 |
| Invensys Climate Controls: | A30-180-070 |
| Johnstone: | B10-351D |
| Ranco: | A11-374, A30-2092-36 |
| Robertshaw: | RC32-1340, RC32-1340B, RC34-3001 |
| Uni-Line: | 3030-180, 92039, 9997-015 |
| Vienna Mfg: | BC2517 |
