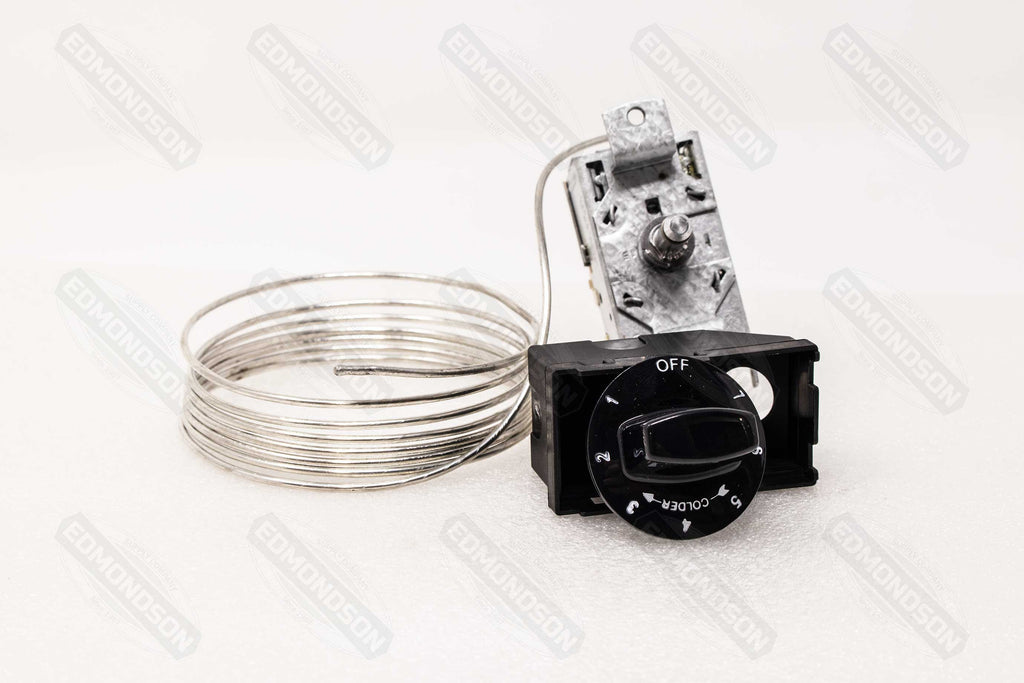

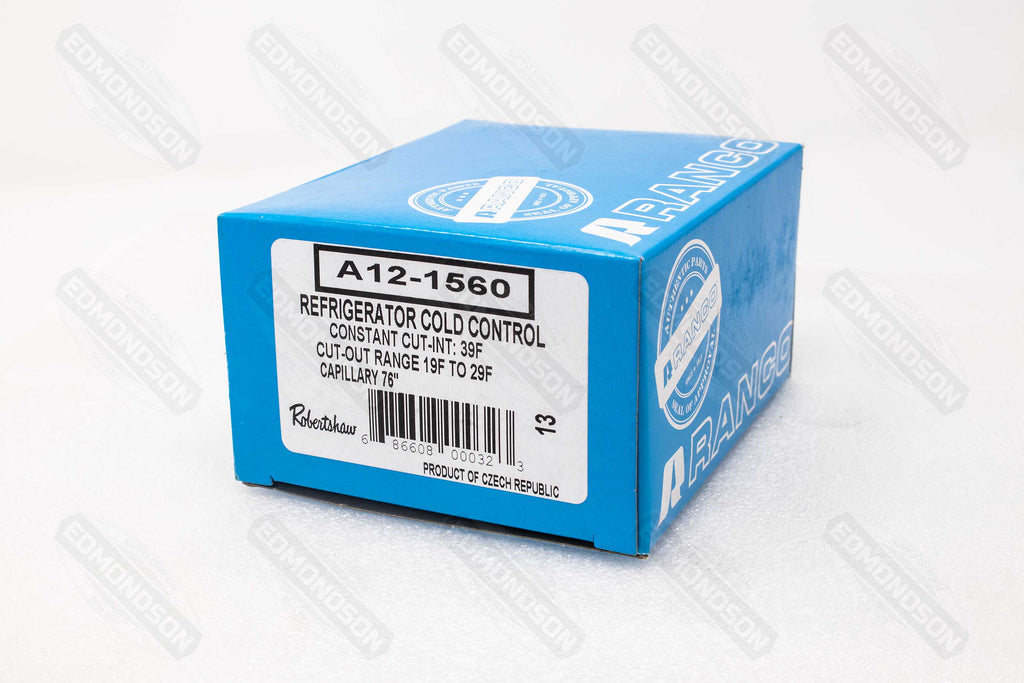

Ranco A12-1560 Constant Cut-in Cold Temperature Control, 39°F
$78.86
SKU A12-1560
Ranco A12-1560 Constant Cut-in Cold Temperature Control, 39°F
The Ranco® A12 and 9531 Series Constant Cut-in Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.
Features and Benefits
- Laser-welded stainless steel bellows
- Fixed or adjustable temperature settings
- High-amperage contacts
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
- Constant On or Off positions available
- Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
- Standard 1/4” quick-connect terminals with optional screw terminals
Specifications
| Series Application: | A12 Series Constant Cut-In Control |
| Capillary Length: | 76" |
| Cut-In: | 39°F |
| Normal Off: | 24°F |
| Warm Off: | 29°F |
Cross Reference
| W.W. Grainger: | 3XL04 |
| Hussmann New Yorker: | 4-S-5 |
| Sani-Serv (Burger): | 70265 |
| Dixie: | 800355, 802.800.480.21, 802-800-380.01, 80280048021, 80280054011 |
| A.M.C. Manufacturing: | 802.800.540.11 |
| Addison (Heat Control): | 8401-178 |
| Uni-Line: | 92027, 9997-004 |
| Cutler-Hammer: | 9531N190, 9531N222, 9531N300, 9531N367, 9531N375, 9531N387 |
| Traulsen: | 984-29439-00 |
| Ranco: | A12-1513, A12-1522, A12-1529, A12-1529, A12-1530, A12-1560, A12-1569, A12-1637, A12-1683, A12-1691, A12-1713, A12-1727, A12-599, K12-L1535, K12-L1560, K59-P8203 |
| Vendo: | A521461 |
| Johnstone Supply: | B11-596 |
| Blissfield Mfg Co.: | BE-1360 |
| Gemline: | GA121560 |
| Glasco/Univ Match Co.: | P14417913, P144179B |
| La Crosse: | P35 |
| Robertshaw: | RC36-1102 |
