Description

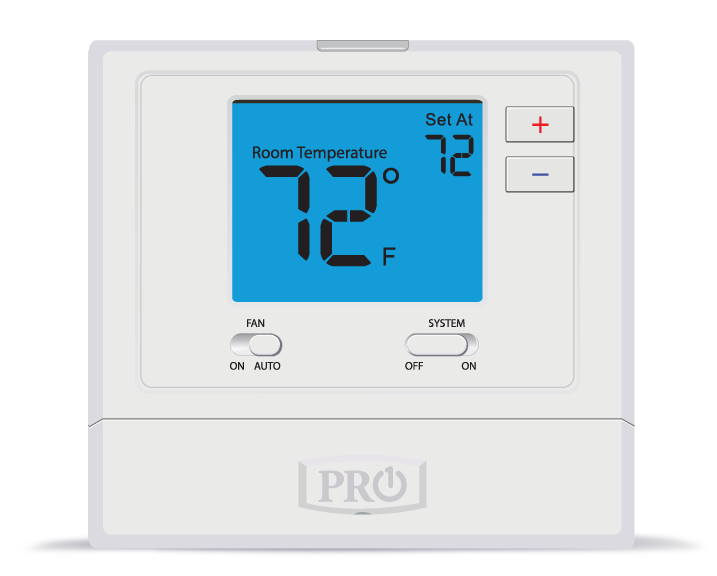

PRO1 IAQ T771 Non-Programmable Thermostat, Single Stage, Battery or Hardwire, Heat or Cool Only
- Heat only or Cool only applications
- Set point range from 25 degrees F to 90 degrees F (low set point is great for garage thermostats)
- Set point limits (meets building codes for garage applications)
- 4 sq. inch display
- Blue back light
- Glow in the dark light button
- Easy access battery compartment
- Heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24v power
Specifications:
| Application: | 1 Heat Only or 2 Cool Only |
| Programmability: | Non-Programmable |
| System Switch: | Cool - Off - Heat - Auto |
| Display Range: | 20˚F to 99˚F (-7˚C to 37˚C) |
| Control Range: | 25˚F to 99˚F (-4˚C to 37˚C) |
| Display Accuracy: | +/- 1˚F |
| Heat Swing: | Adjustable from 0.2˚F to 2.0˚F |
| Cool Swing: | Adjustable from 0.2˚F to 2.0˚F |
| Terminals: | Rc, Rh, C, G, Y/W |
| Load Rating: | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| Power Source: |
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries |
| Operating Ambient: | 20˚F to +105˚F (-7˚C to +41˚C) |
| Operating Humidity: | 90% non-condensing maximum |
| Mounting: | Wall or Junction Box |

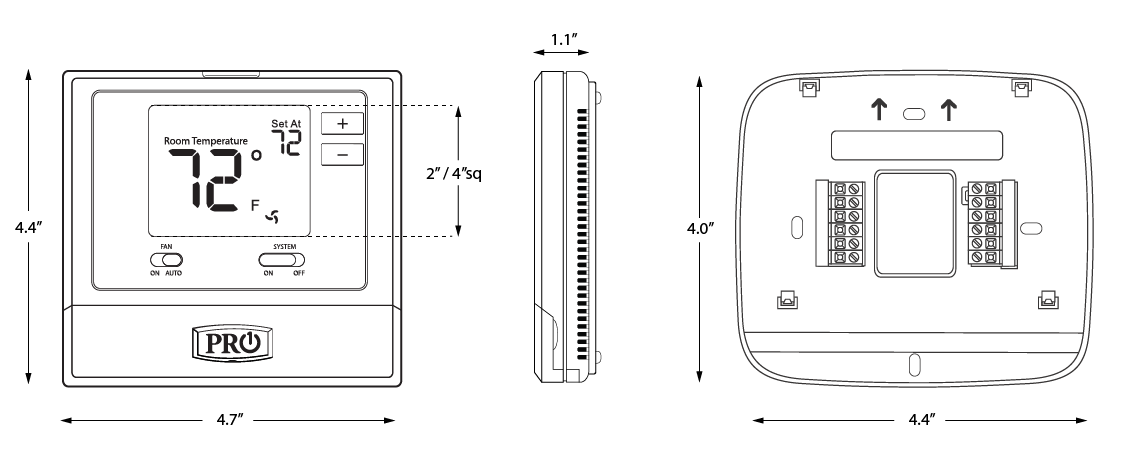

| Dimensions: | 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) |
