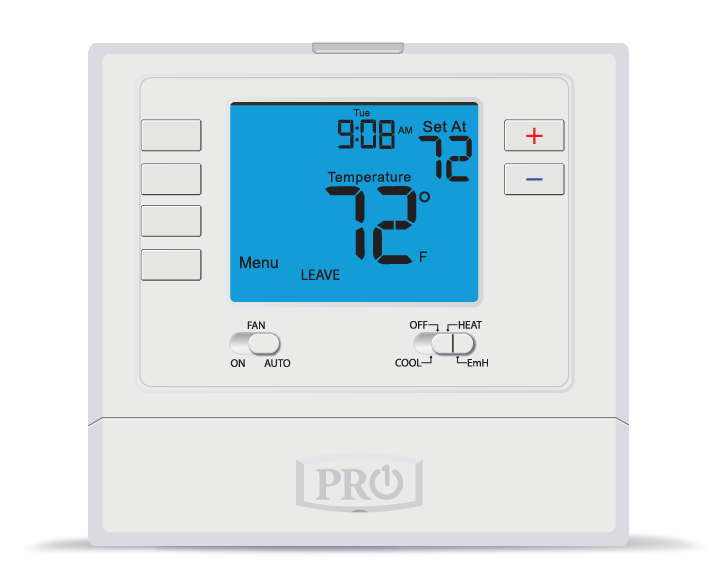

PRO1 IAQ T725 Digital 7-Day or 5/1/1 Programmable Thermostat, 2 Heat - 1 Cool, Heat Pump/Conventional
Save 57%
Original price
$133.23
Current price
$57.10
SKU T725
PRO1 IAQ T725 Digital 7-Day or 5/1/1 Programmable Thermostat, 2 Heat - 1 Cool, Heat Pump/Conventional
Products usually ship within 1 business day.
- 7 Day or 5/1/1 programmable
- Easy menu driven programming
- Intuitive wake, leave, return, sleep programming icons
- 4 sq. inch display
- Blue back-light
- Glow in the dark light button
- Easy access battery compartment
- Electric or Gas configuration
- Separate B & O terminals
- Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
- Filter change indicator (select-able on or off)
- Room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24v power
Brochure
Installation Manual
Operation Manual
Submittal Sheet
Specifications
|
The display range of temperature: |
41˚F to 95˚F (5˚C to 35˚C) |
| The control temperature range: | 44˚F to 90˚F (7˚C to 32˚C) |
| Load rating: | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| Display accuracy: | ± 1 °F |
| Swing (cycle rate or differential): | Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F |
| Power source: |
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries |
| Operating ambient: | 32° to +105° (0° to + 41°C) |
| Operating humidity: | 90% non-condensing maximum |
| Dimensions of thermostat: | 4.7"W x 4.4"H x 1.1"D |
