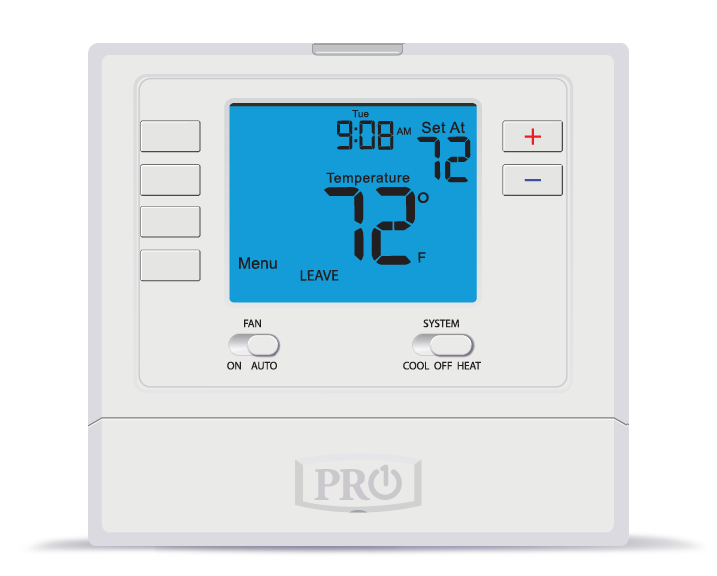

PRO1 IAQ T705 Digital 7-Day or 5/1/1 Programmable Thermostat, 1 Heat - 1 Cool
Save 50%
Original price
$95.46
Current price
$47.73
SKU T705
PRO1 IAQ T705 Digital 7-Day or 5/1/1 Programmable Thermostat, 1 Heat - 1 Cool
- 4 sq. inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Electric or Gas configuration
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24v power
Specifications
|
The display range of temperature: |
41˚F to 95˚F (5˚C to 35˚C) |
| The control temperature range: | 44˚F to 90˚F (7˚C to 32˚C) |
| Load rating: | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| Display accuracy: | ± 1 °F |
| Swing (cycle rate or differential): | Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F |
| Power source: |
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries |
| Operating ambient: | 32° to +105° (0° to + 41°C) |
| Operating humidity: | 90% non-condensing maximum |
| Dimensions of thermostat: | 4.7"W x 4.4"H x 1.1"D |
