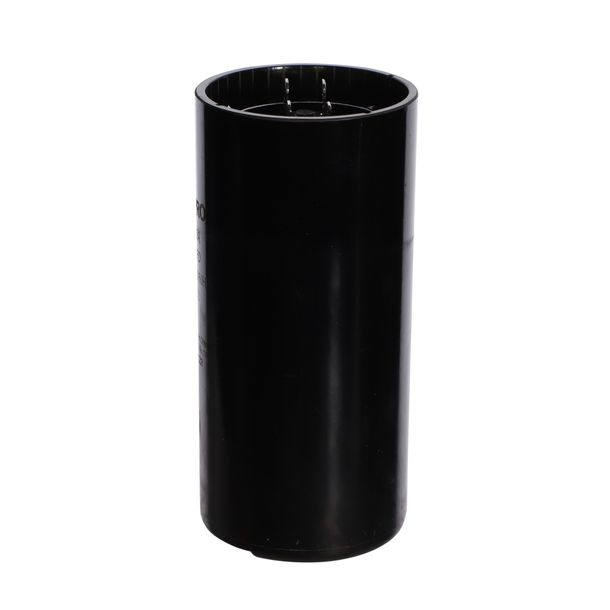

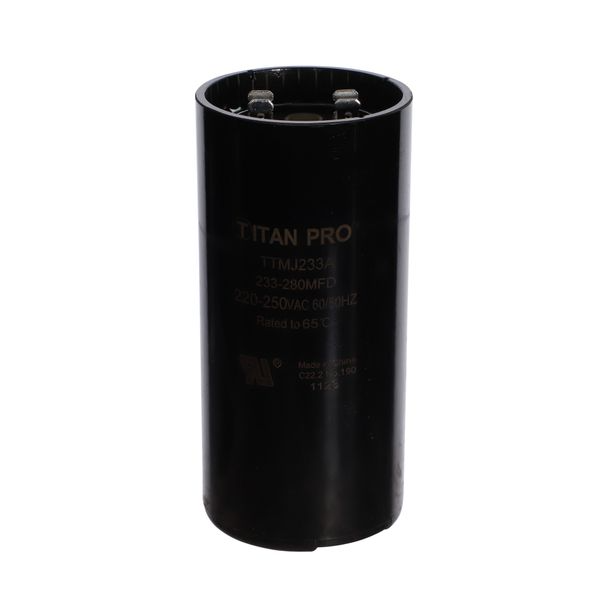

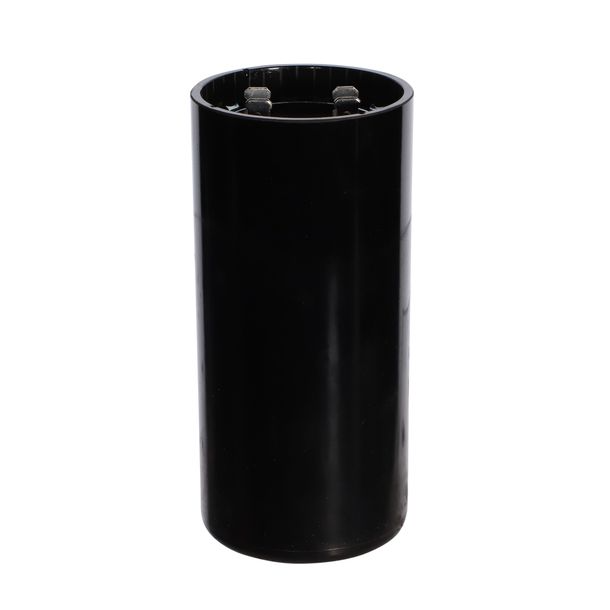

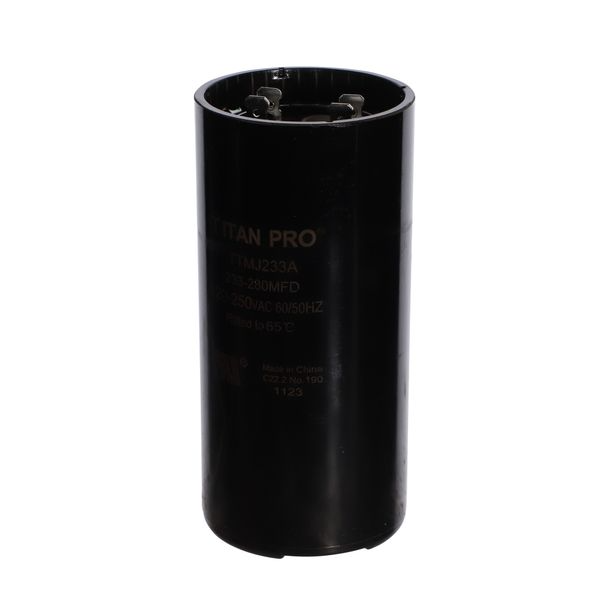

Packard Titan Pro TTMJ233A Motor Start Capacitor 233-280MFD 220-250V

• These motor start capacitors are dry, electrolytic, non-polarized types for intermittent duty in AC motor starting circuits. The round cases are made of moisture and oil resistant molded phenolic resin or plastic. They have standard dual blade terminals.
• Rated 3-second start
• 20 starts per hour
• Operating temperature range: 40° to 65°C (-40° to 149°F)
• Meet or exceed Electronic Industries Association (EIA)
• Standard RS-463 type 2
• Hertz: 50/60



Start MFD:	233-280
Capacitor Voltage:	220-250
Height (In.)	4.37 in.
Hertz:	50/60
Material:	Cases are made of moisture and oil resistant molded phenolic resin or plastic
Terminals:	Standard dual blade terminals
