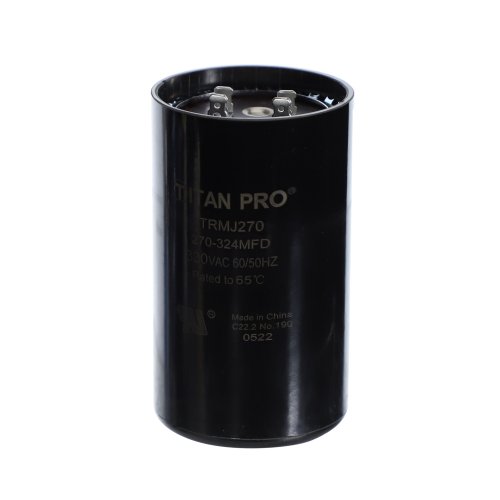

Packard TRMJ270 Titan Pro™ Start Capacitor, 270-324 MFD, 330 Volt, with Resistor
$9.49
SKU TRMJ270
Packard TRMJ270 Titan Pro™ Start Capacitor, 270-324 MFD, 330 Volt, with Resistor
- These motor start capacitors are dry, electrolytic, non-polarized types for intermittent duty in AC motor starting circuits. The round cases are made of moisture and oil resistant molded phenolic resin or plastic. They have standard dual blade terminals.
- Rated 3-second start
- 20 starts per hour
- Operating temperature range: 40° to 65°C (-40° to 149°F)
- Meet or exceed Electronic Industries Association (EIA)
- Standard RS-463 type 2
- Hertz: 50/60
| Start MFD: | 270-324 |
| Capacitor Voltage: | 330 |
| Can /Case Size: | 8 |
| Diameter (In.): | 2-9/16 in. |
| Height (In.): | 4-1/2 in. |
| Hertz: | 50/60 |
| Material: | Cases are made of moisture and oil resistant molded phenolic resin or plastic |
| Terminals: | Standard dual blade terminals |
| Primary Depth: | 2.6 in. |
| Primary Width: | 2.6 in. |
| Primary Height: | 4.5 in. |
| Primary Weight: | 0.8 lbs |
