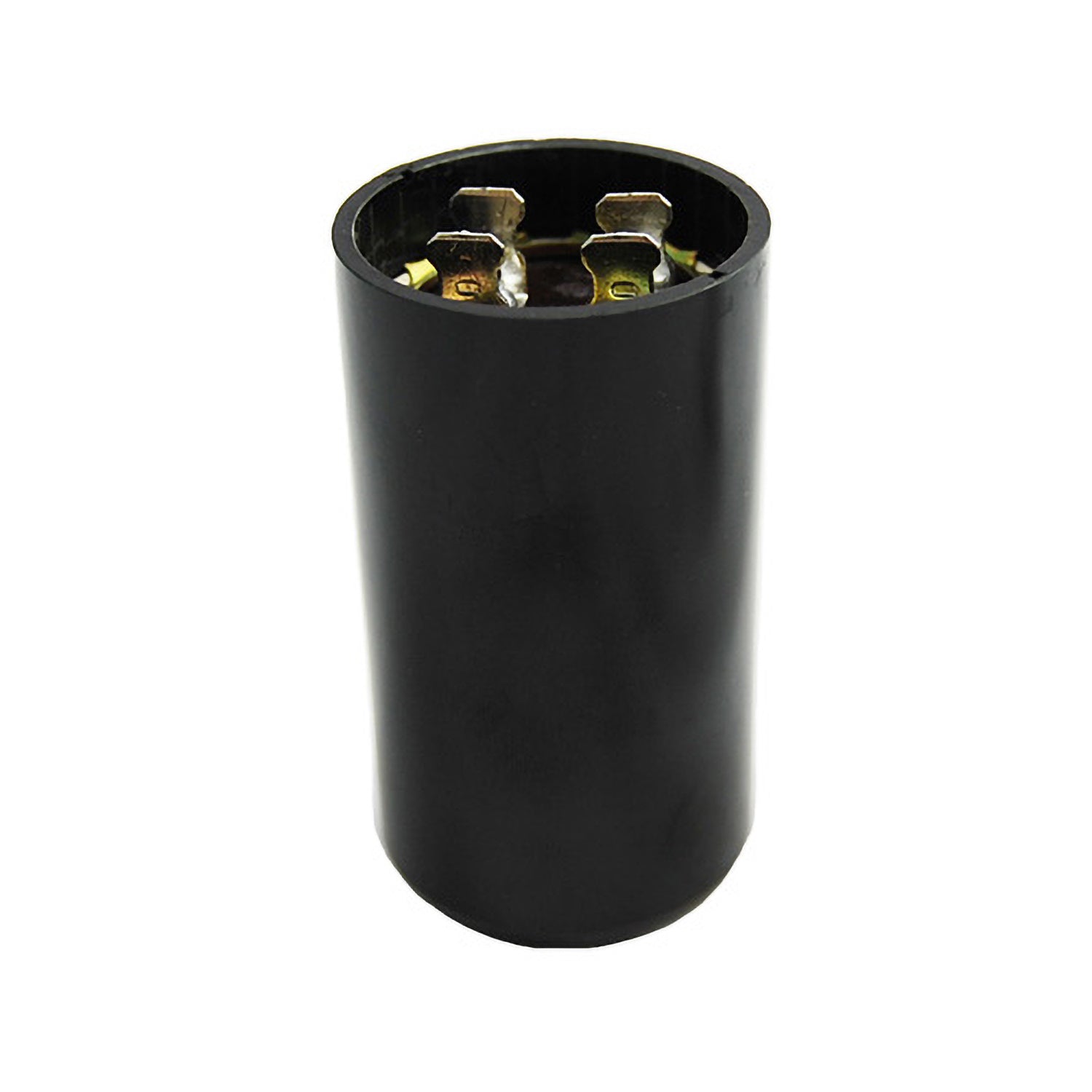

Packard Titan Pro TMJ88 Motor Start Capacitor 88-108 MFD 110-125 VAC

• These motor start capacitors are dry, electrolytic, non-polarized types for intermittent duty in AC motor starting circuits. The round cases are made of moisture and oil resistant molded phenolic resin or plastic. They have standard dual blade terminals.
• Rated 3-second start
• 20 starts per hour
• Operating temperature range: 40° to 65°C (-40° to 149°F)
• Meet or exceed Electronic Industries Association (EIA)
• Standard RS-463 type 2
• Hertz: 50/60



Start MFD:	88-108
Capacitor Voltage:	110-125
Can /Case Size:	1
Diameter (In.):	1-7/16 in.
Height (In.):	2-3/4 in.
Hertz:	50/60
Maximum Coil Voltage (VAC):	-40ºF to 149ºF
Material:	Cases are made of moisture and oil resistant molded phenolic resin or plastic
Terminals:	Standard dual blade terminals
VAC:	110-125



Direct Replacement for:

Industry No.:	11009
Supco:	CS88-108X110
W D Armstrong:	BC88-125V
