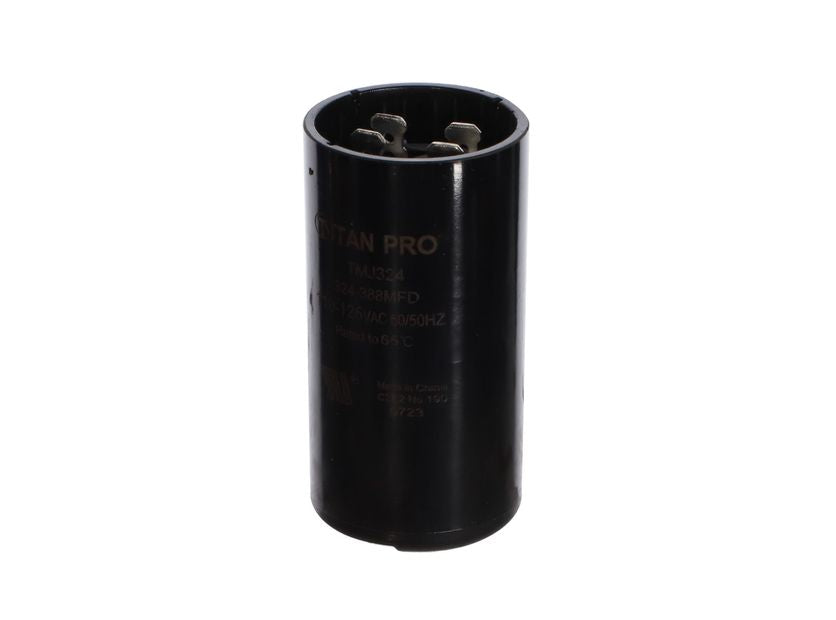

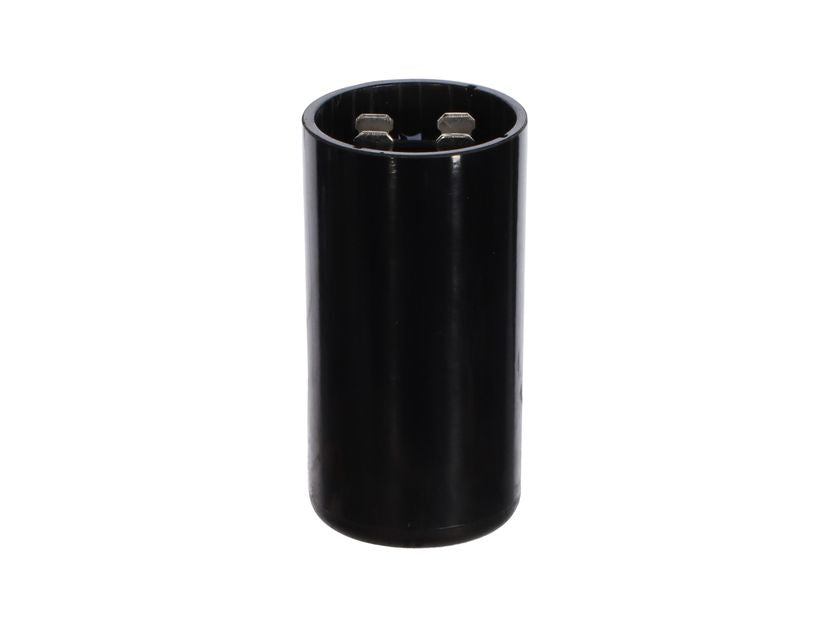

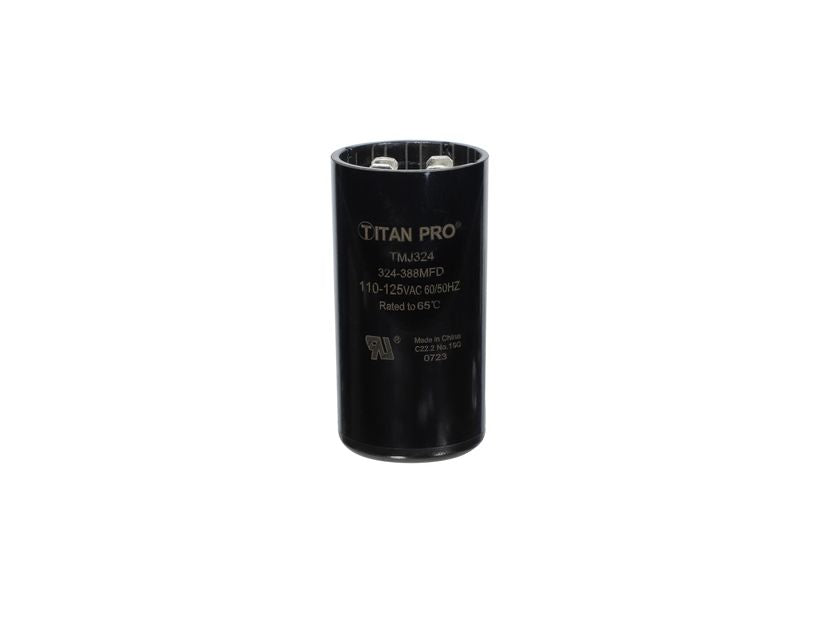

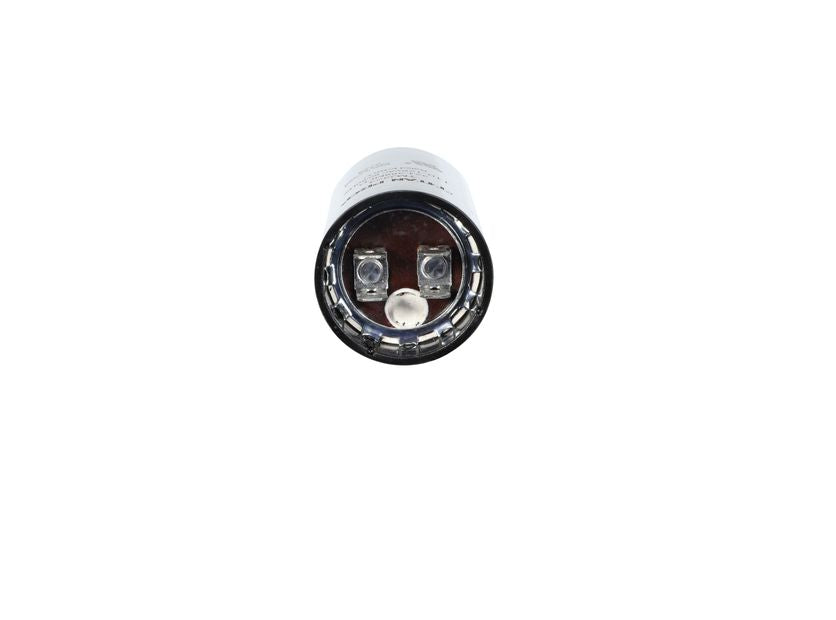

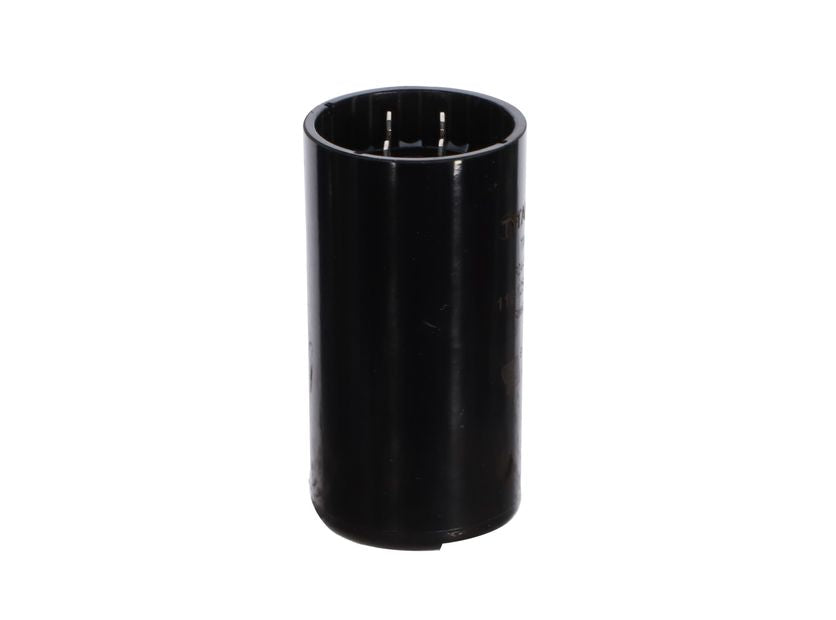

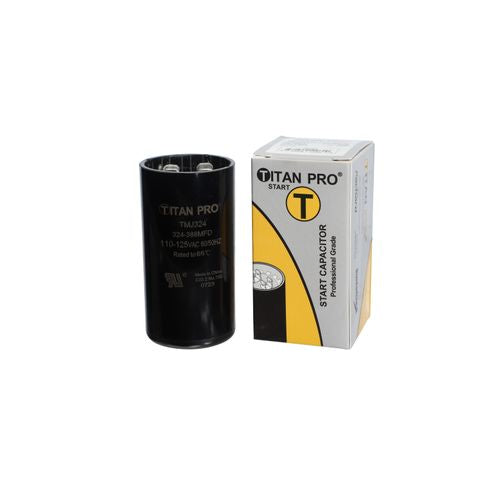

Packard Titan Pro TMJ324 Motor Start Capacitor 324-388MFD 110-125V

• These motor start capacitors are dry, electrolytic, non-polarized types for intermittent duty in AC motor starting circuits. The round cases are made of moisture and oil resistant molded phenolic resin or plastic. They have standard dual blade terminals.
• Rated 3-second start
• 20 starts per hour
• Operating temperature range: 40° to 65°C (-40° to 149°F)
• Meet or exceed Electronic Industries Association (EIA)
• Standard RS-463 type 2
• Hertz: 50/60



MFD Rating:	324-388
Capacitor Voltage:	110-125
Shape:	Round
Primary Depth (in.):	3
Primary Height (in.):	1.5
Primary Width (in.):	1.5
Primary Weight (lbs.):	0.2
