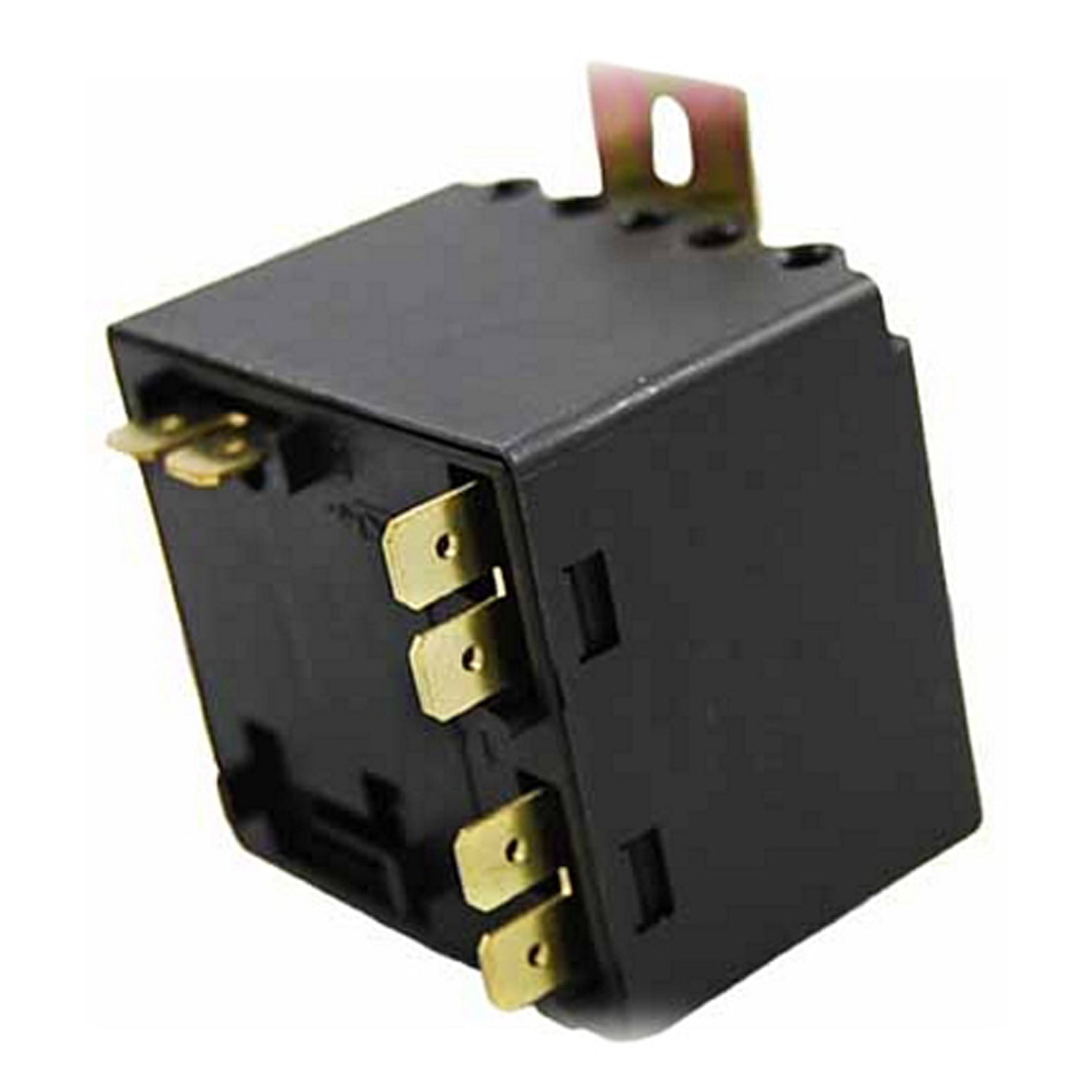

Packard PR9063 170 Continuous Coil Voltage 90-63 Potential Relay
- Temperature range: 40 °F to 130°F
- Class B insulation
- Continuous duty
SPECIFICATIONS
| Coil Data Nom. VA: |
5 |
| Coil Data: DC Resistive: |
1399 |
| Coil Data: Inrush: |
10 |
| Coil Data: MA: |
29 |
| Coil Voltage: |
170 Continous |
| Continuous Coil Voltage: |
170 |
| Country of Origin: |
CHINA |
| Drop Out Max: |
65 |
| Inrush VA: |
10 |
| Insulation Class: |
B |
| Nom. VA: |
5 |
| Pick-Up Max.: |
153 |
| Pick-Up Min.: |
140 |
Cross Reference
| Industry Number: |
19002, 63 |
| Mars: |
19002 |
| White-Rodgers: |
90-63 |
| Zettler |
ZCPRZ7AD1 |
