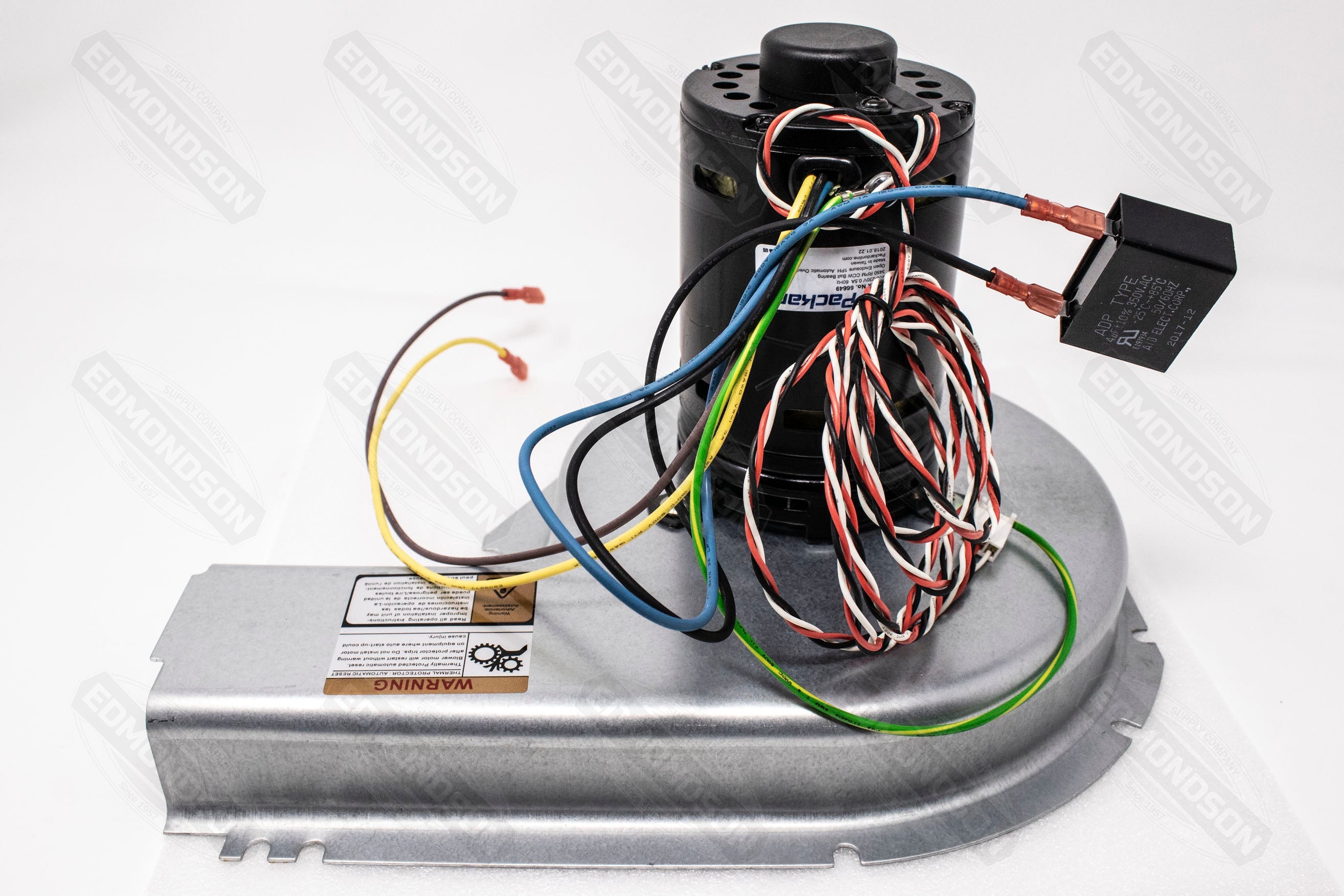

Packard 66649 Draft Inducer, Carrier Replacement, 208-230 Volt, 0.5 Amps
$277.77
SKU 66649
Packard 66649 Draft Inducer, Carrier Replacement, 208-230 Volt, 0.5 Amps
- Replaces Carrier/Bryant/Payne 48GS400649
- Permanent Split Capacitor
- Capacitor Included
- Automatic Overload
- Ball Bearing
- Gasket Included
- Single Phase
- 60 Hz
| Motor Voltage: | 208-230 |
| HP: | 1/16 |
| RPM: | 3450 |
| Amps: | 0.48 |
| Hertz: | 60 |
| NEMA Frame: | 3.3 |
| Overall Length (In.): | 7.86 |
| Overload Protection: | Automatic |
| Phase: | Single |
| Speeds: | 1 |
| Bearings: | Ball |
| Enclosure: | Open |
| Insulation Class: | B |
| Motor Type: | PSC |
| Capacitor Required: | 4MFD/370V |
| Mounting Option: | Mounting Holes |
Cross Reference
| Carrier: | 48GS400106, 48GS400649, HC30GB232 |
| ICP: | 1175978 |
