Description

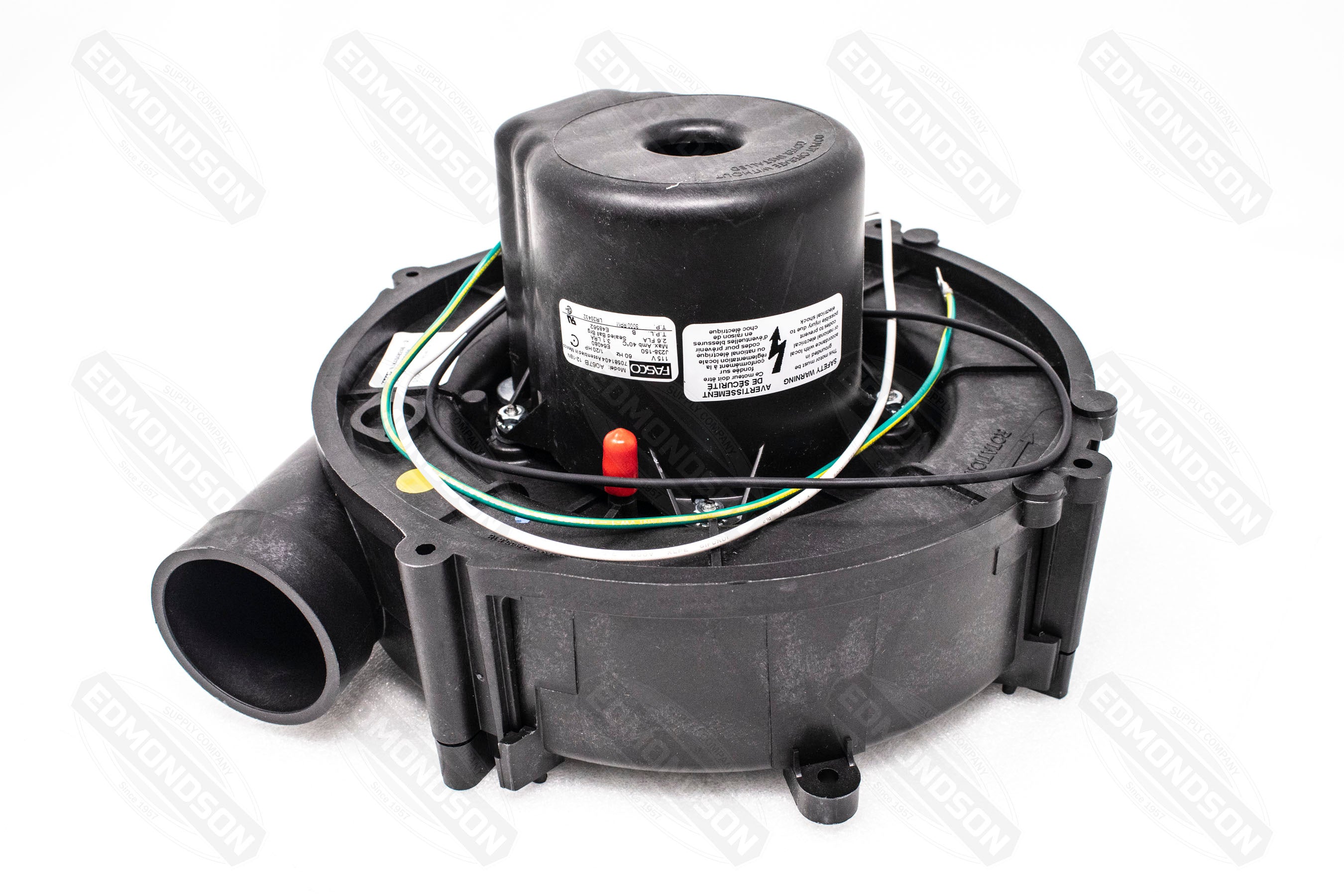

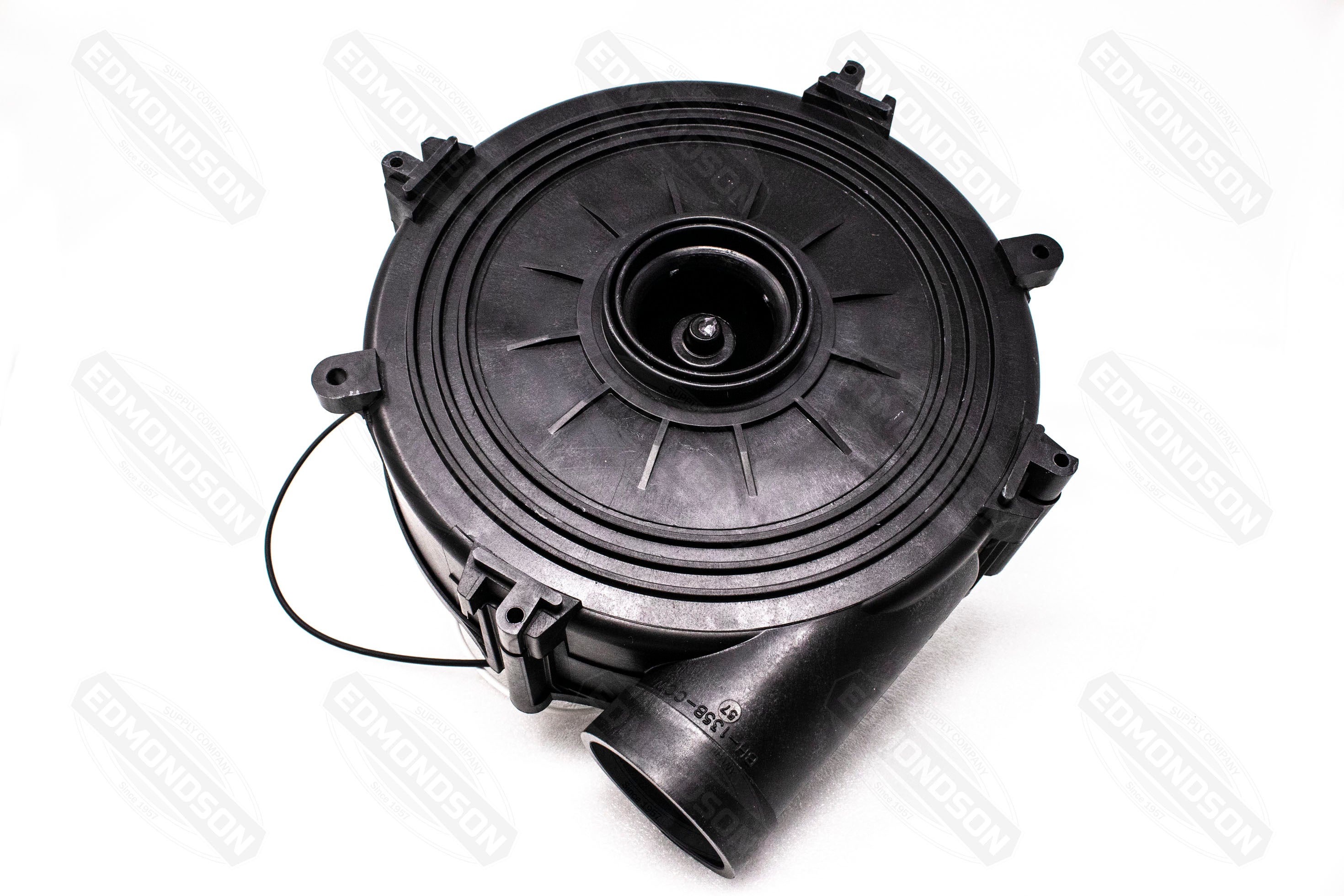

Packard 66338 Draft Inducer, 50 MHP, 1 Speed, 2.4 Amps, 3000 RPM, 115 Volts, Replaces ICP
- Replaces ICP 1013388 & Other Models
- Shaded Pole
- Single Speed
- Single Phase
- Automatic Overload
- Includes OEM Kit as Shown
- 60 Hz
| Motor Voltage: | 115 |
| HP: | 50 MHP |
| RPM: | 3000 |
| Amps: | 2.40 |
| Hertz: | 60 |
| NEMA Frame: | 3.3 |
| Overall Length (In.): |
10.5 |
| Overload Protection: | Automatic |
| Phase: | Single |
| Speeds: | 1 |
| Bearings: | Ball |
| Enclosure: | TEFC |
| Insulation Class: | B |
| Motor Type: |
Shaded Pole |
| Mounting Option: | Mounting Holes |
Cross Reference:
| Carrier: | 333710751 |
| ICP: | 1012002, 1013188, 1013388A, 1013388FA, 1013915, 1014338, 1172823, 329148-701, 330701-701 |
| Fasco: | A067 |
| Emerson: | 3115 |
| Mars: | 10706 |
| Rotom: | FB-RFB330, RFB330 |
